Contactors

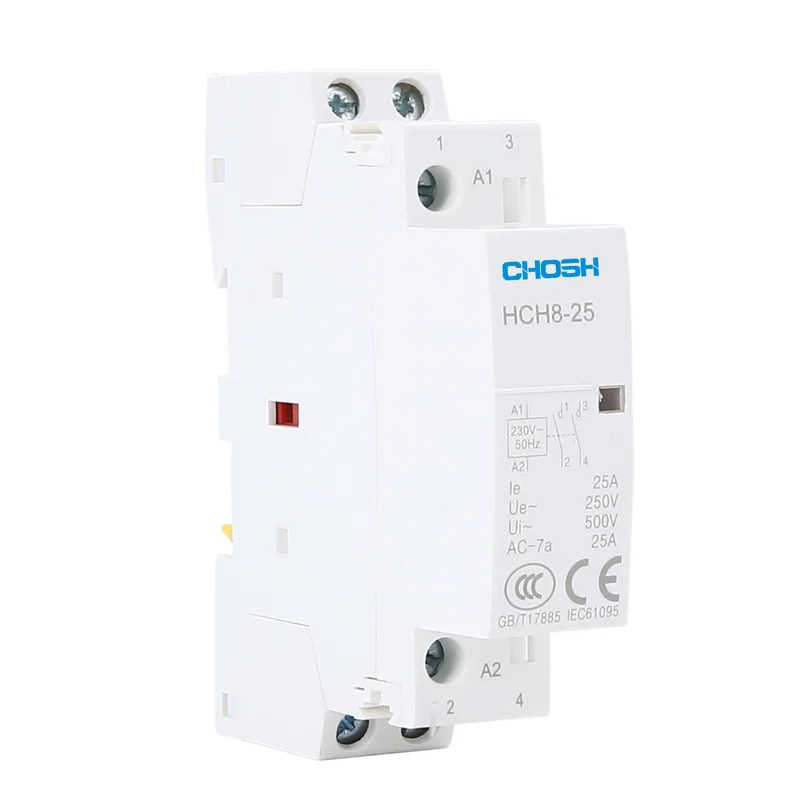

HSH8-25 2P 25A Modular Contactor
Product Overview
Modular contactors are frequently applied for switching of lamp loads, fans or pumps in both utility as well as industrial areas.
All contactors with ac/dc coils ensure silent operation which is further enhanced for low consumption of power. Optimal contacts and low heat dissipation guarantee a long lifetime of the contactor which is available in a wide range of characteristics.
Technical characteristics Designed according to IEC 60947-4-1 and IEC 61095 standards. Suitable for applications in general control, heating & lighting applications. Available in 16A, 20, 25, 40 & 63 A ratings with up to 4-pole contacts. Coil voltages: 12 Vac/dc, 24 Vac/dc, 48 Vac/dc, 230 V ac, 220 Vdc.
Key Features
Why This Model Is Specified
- Compliance Std.: IEC61095, IEC60947
- Compact Design & Din Rail Installation
- Impact Resistance: Ik08
- Flammability: UL94V0
- PC Housing
- Silver Contact
- 2 Years’ Warranty
Who It Is For
- Control panel and switchgear builders assembling motor starters and distribution boards
- OEMs building pumps fans compressors and HVAC plant
- Electrical wholesalers and distributors stocking IEC rated contactors
Problems It Solves
- Remote switching of motor and lighting circuits without running load current to the operator
- Compact DIN rail switching where a full size contactor will not fit in the board
- Silent operation and low coil consumption in occupied buildings
Where It Is Used
- Motor starting including reversing and star delta arrangements
- Lighting heating and general control circuits in utility and industrial buildings
- Switching of lamp loads fans and pumps from a distribution board
Specifications

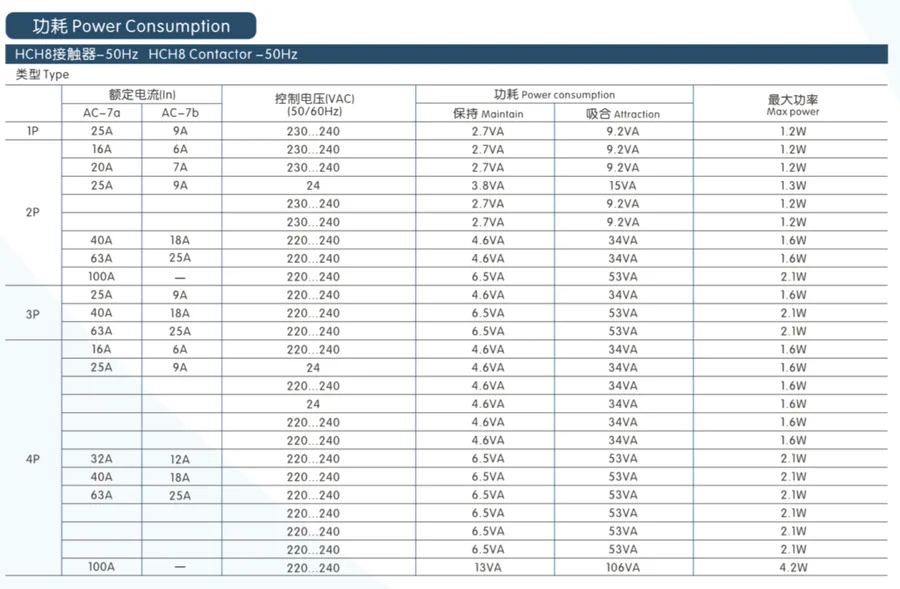

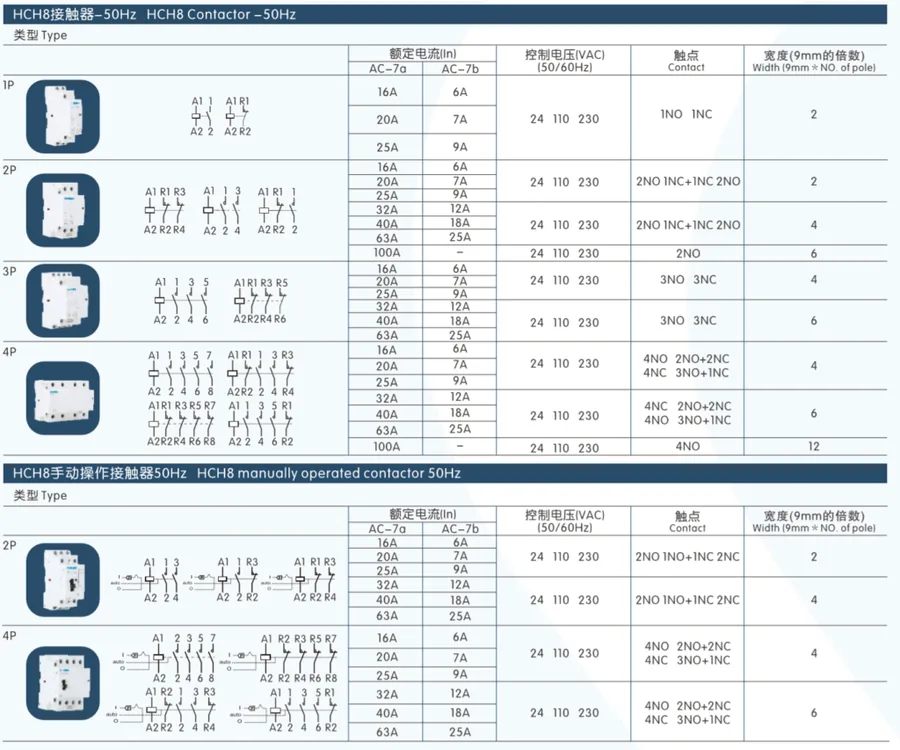

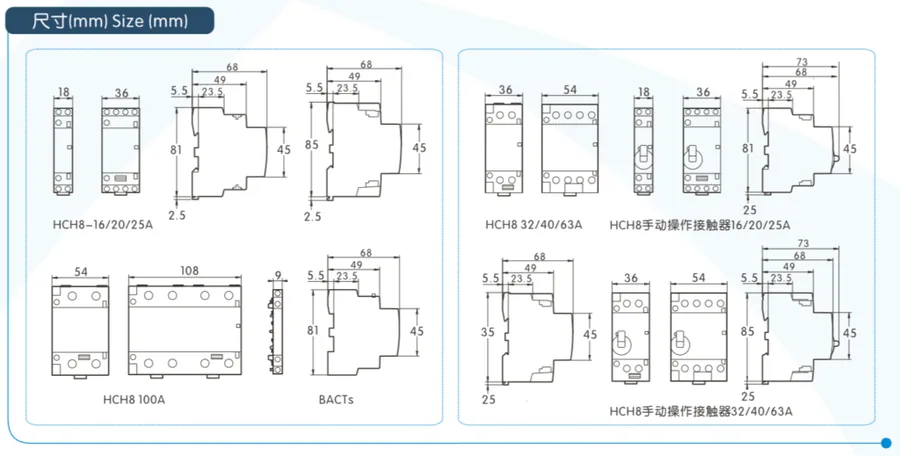

Technical Data And Dimensions
Features
Specification
Quality And Certification
The products have been certified by CCC CE and RoHS and qualified by UL in the US and KEMA in the UK. Assembly is carried out in a dustless workshop and finished units are checked on dedicated testing equipment.
See The Factory →Customisation And Ordering
Send the model number the quantity and the coil or supply voltage you need and we will confirm the variant before you order. Drawings can be sent by email and we will come back with what is possible.
Email Your Requirement →Related Products
All Contactors →
FAQ
HSH8-25 2P 25A Modular Contactor Questions
What is the Coil Voltage of the HSH8-25 2P 25A Modular Contactor
What is the Current of the HSH8-25 2P 25A Modular Contactor
What is the Pole of the HSH8-25 2P 25A Modular Contactor
Can the HSH8-25 2P 25A Modular Contactor be supplied to a different specification
Which certifications does the company hold
How do I get a quotation for the HSH8-25 2P 25A Modular Contactor
Need A Quotation For This Model
Send the model number and quantity and you will get a direct answer from the people who build the product.
