Contactors

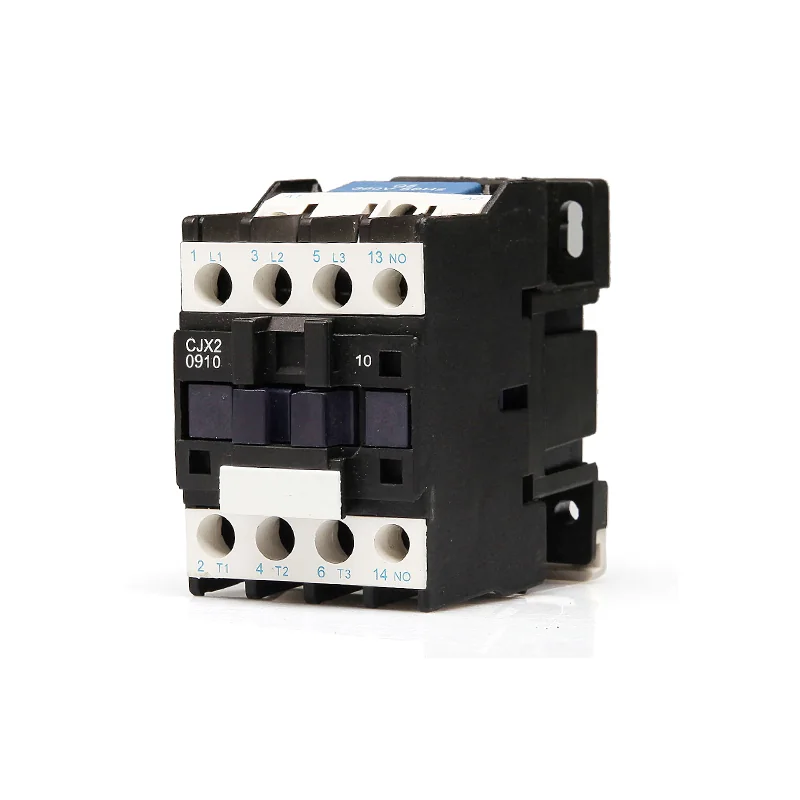

CJX2-09
CJX2
Product Overview
CJX2 series AC Contactor is mainly applied to circuit of AC50/60Hz, Rated operate voltage 690V, Rated current up to 95A, for remote connecting and breaking circuit, and assemble with relay to be electromagnetic starter for protecting the overload circuit. And Contactor can assemble with Block type auxiliary contact group, timer-delay, mechanical interlock to be delay contactor, reversible contactor, star-delta starter. Standard: IEC60947-4-1, GB14048.4
Who It Is For
- Control panel and switchgear builders assembling motor starters and distribution boards
- OEMs building pumps fans compressors and HVAC plant
- Electrical wholesalers and distributors stocking IEC rated contactors
Problems It Solves
- Remote switching of motor and lighting circuits without running load current to the operator
- Compact DIN rail switching where a full size contactor will not fit in the board
- Silent operation and low coil consumption in occupied buildings
Where It Is Used
- Motor starting including reversing and star delta arrangements
- Lighting heating and general control circuits in utility and industrial buildings
- Switching of lamp loads fans and pumps from a distribution board
Specifications
Technical Data And Dimensions
Specification
| Type | CJX2-D09 | CJX2-D12 | CJX2-D18 | CJX2-D25 | CJX2-D32 | CJX2-D40 | CJX2-D50 | CJX2-D65 | CJX2-D80 | CJX2-D95 | |
| Rated workingcurrent (A) | AC3 | 9 | 12 | 18 | 25 | 32 | 40 | 50 | 65 | 80 | 95 |
| AC4 | 3.5 | 5 | 7.7 | 8.5 | 12 | 18.5 | 24 | 28 | 37 | 44 | |
| Standardpower ratingsof 3-phasemotors50/60Hz incategory AC-3 | 220/230V | 2.2 | 3 | 4 | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 | 25 |
| 380/400V | 4 | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 | 30 | 37 | 45 | |
| 415V | 4 | 5.5 | 9 | 11 | 15 | 22 | 25 | 37 | 45 | 45 | |
| 500V | 5.5 | 7.5 | 10 | 15 | 18.5 | 22 | 30 | 37 | 55 | 55 | |
| 660/690V | 5.5 | 7.5 | 10 | 15 | 18.5 | 30 | 33 | 37 | 45 | 55 | |
| Rated heat current (A) | 20 | 20 | 32 | 40 | 50 | 60 | 80 | 80 | 125 | 125 | |
| Electrical life | AC3 (x10 4 ) | 100 | 100 | 100 | 100 | 80 | 80 | 60 | 60 | 60 | 60 |
| AC4 (x10 4 ) | 20 | 20 | 20 | 20 | 20 | 15 | 15 | 15 | 10 | 10 | |
| Mechanical life (x10 4 ) | 1000 | 1000 | 1000 | 1000 | 800 | 800 | 800 | 800 | 600 | 600 | |
| Number of the contacts | 3P+NO | 3P+NC+NO | |||||||||
Coil Code
| Volts | 24 | 42 | 48 | 110 | 220 | 230 | 240 | 380 | 400 | 415 | 440 | 500 | 600 |
| 50Hz | B5 | D5 | E5 | F5 | M5 | P5 | U5 | Q5 | V5 | N5 | R5 | S5 | Y5 |
| 60Hz | B6 | D6 | E6 | F6 | M6 | – | U6 | Q6 | – | – | R6 | – | – |
| 50/60Hz | B7 | D7 | E7 | F7 | M7 | P7 | U7 | Q7 | V7 | N7 | R7 | – | – |
Outline
| Type | A | B | C | D | E | a | b | Φ |
| CJX2-D09~12 | 47 | 76 | 82 | 113 | 133 | 34/35 | 50/60 | 4.5 |
| CJX2-D18 | 47 | 76 | 87 | 118 | 138 | 34/35 | 50/60 | 4.5 |
| CJX2-D25 | 57 | 86 | 95 | 126 | 146 | 40 | 48 | 4.5 |
| CJX2-D32 | 57 | 86 | 100 | 131 | 151 | 40 | 48 | 4.5 |
| CJX2-D40~65 | 77 | 129 | 116 | 145 | 165 | 40 | 100/110 | 6.5 |
| CJX2-D80~95 | 87 | 129 | 127 | 175 | 195 | 40 | 100/110 | 6.5 |
Quality And Certification
The products have been certified by CCC CE and RoHS and qualified by UL in the US and KEMA in the UK. Assembly is carried out in a dustless workshop and finished units are checked on dedicated testing equipment.
See The Factory →Customisation And Ordering
Send the model number the quantity and the coil or supply voltage you need and we will confirm the variant before you order. Drawings can be sent by email and we will come back with what is possible.
Email Your Requirement →Related Products
All Contactors →
FAQ
CJX2-09 Questions
What is the Rated Current AC3 of the CJX2-09
What is the Voltage of the CJX2-09
Can the CJX2-09 be supplied to a different specification
Which certifications does the company hold
How do I get a quotation for the CJX2-09
