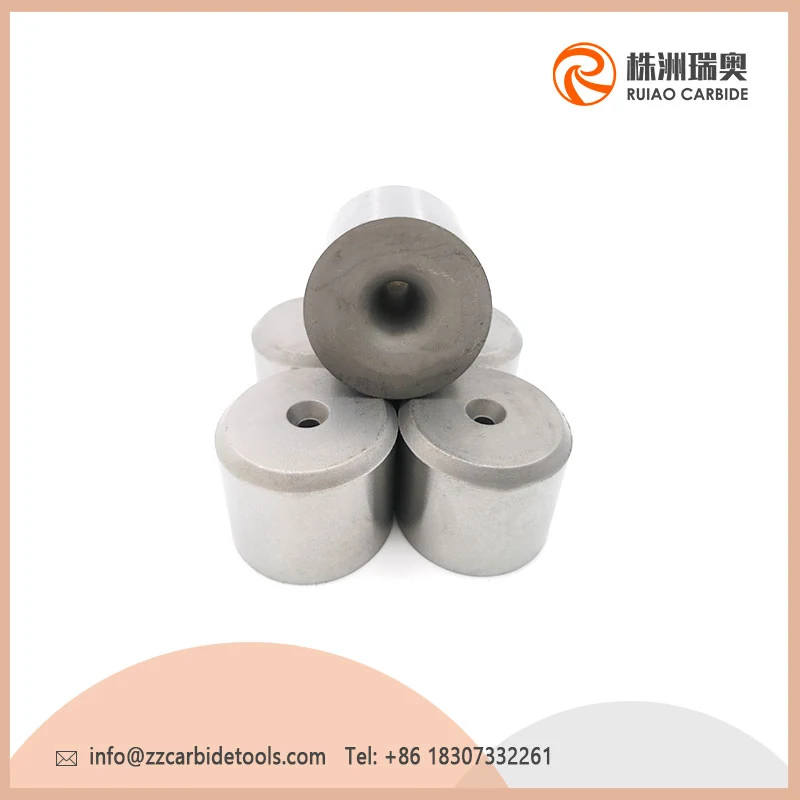

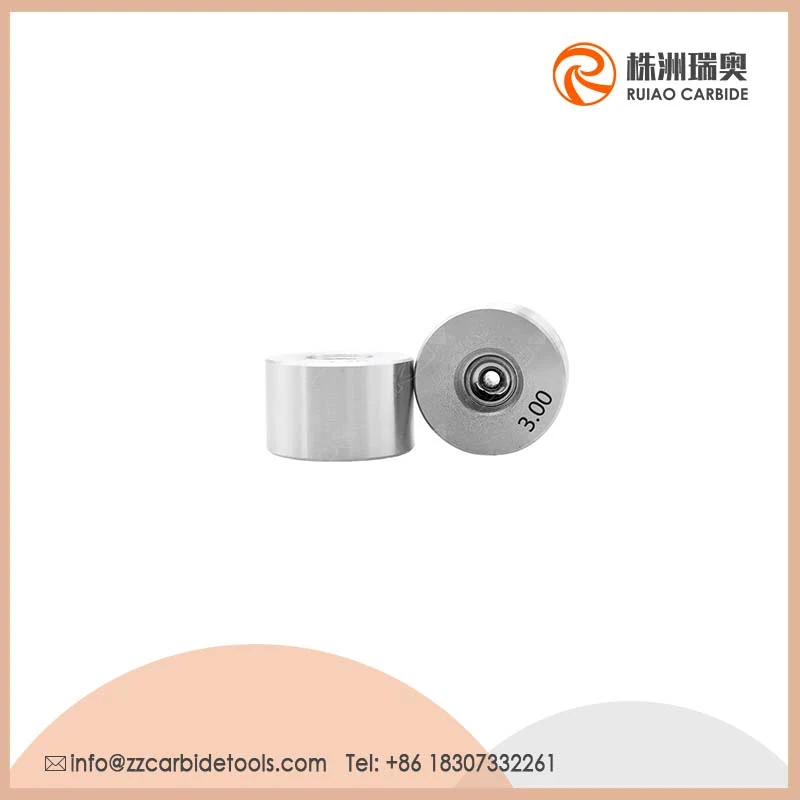

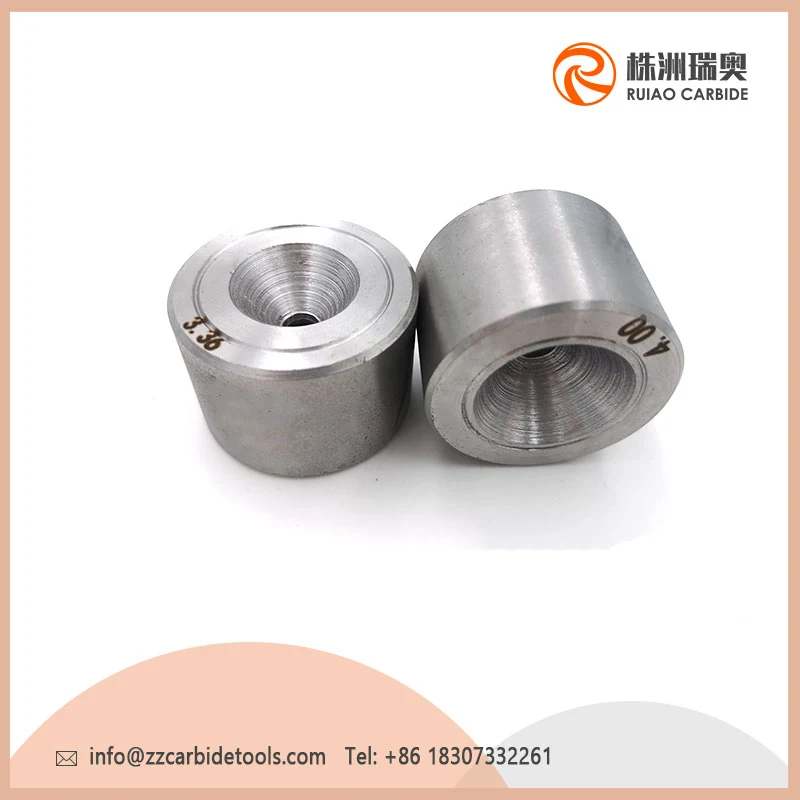

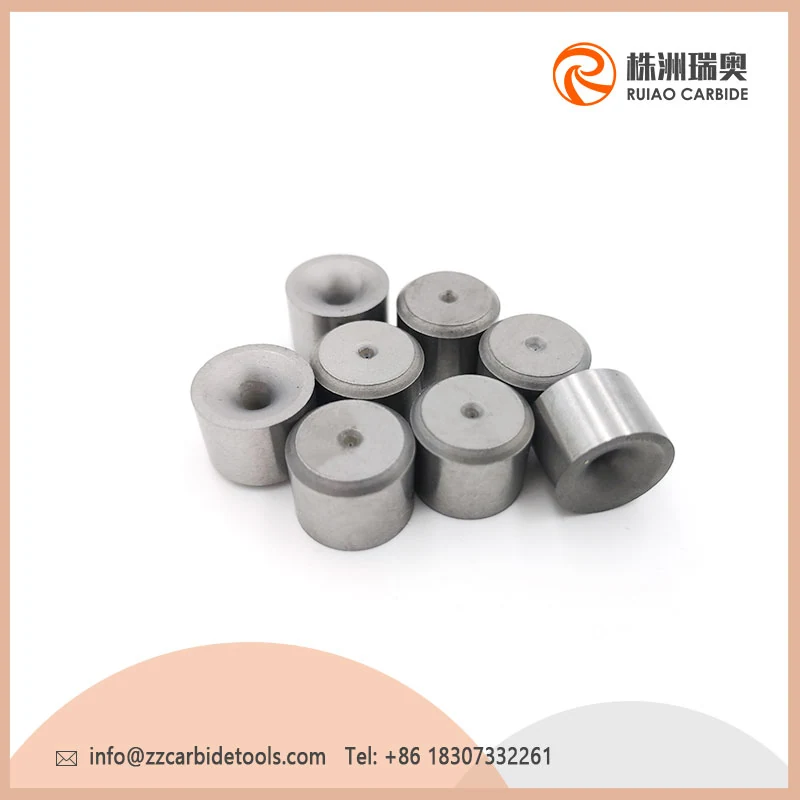

Wire Drawing dies
Cemented carbide wire drawing dies for tungsten, molybdenum and stainless wire as well as high-precision wire used in electronics, instruments and aerospace. Catalog grades and nib sizes are published in the drawing-dies PDF.
Catalog PDF: Carbide drawing dies
Where it runs
- Tungsten and molybdenum wire
- Stainless steel wire
- Electronic and instrument wire
Problems this part is meant to close
- Steel die wear on hard wire
- Need for carbide nibs in standard type 01/10/W series
Who sends the RFQ
- Wire mills and die shops drawing ferrous and non-ferrous wire
Process used on the line
- Sintered nib
- Case optional per catalog
Published specifications
Only numbers that appear on the source product page or the matching catalog PDF.
| YG3X | 15.0 g/cm3, 91.5 HRA, used for small drawing dies |
|---|---|
| YG6 | 14.90 g/cm3, 89.5 HRA, small and medium drawing dies |
| YG8 | 14.85 g/cm3, 89 HRA, wires and rods |
Materials
- YG3X, YG6, YG8 and related drawing-die grades
Technical features
- Carbide drawing die nibs
- Types listed in the catalog PDF including type 01, 10, W and WTA series
Against the usual substitute
| Steel drawing dies | Carbide dies are described as the substitute for steel moulds on steel and non-ferrous wire |
|---|
Customization
- Special carbide drawing dies upon drawings
How to specify
- Send inlet/outlet diameter and whether you need a cased die
- Download the drawing-dies PDF for type tables
Questions buyers actually ask
Can you make wire drawing dies from our drawing or sample?
Yes. Ruiao accepts custom manufacturing from customer specifications, samples, or drawings.
How do we request a quote?
WhatsApp +86 18307332261 or email [email protected] with the grade, size, quantity, and a drawing if you have one.
How are larger lots shipped?
The factory lists sea freight for larger lots and express for faster deliveries.
