Tungsten Carbide Rods
Solid tungsten carbide rods for drills, end mills, taps, and reamers. Ruiao supplies ultra-fine and general-purpose grades in straight or helical-coolant blanks so tool grinders start from dense, consistent bar stock instead of fighting porosity or grain scatter.
Catalog PDF: Tungsten Carbide Rods catalog
Where it runs
- Batch grinding of drills and end mills for automotive and mold-steel shops
- Micro-drill and micro-end-mill blanks for PCB and precision electronics
- Wear-resistant forming tools for high-fiber wood and composite materials
- Shanks, holemaking tools, punching and measuring tools, paper and packaging knives
Problems this part is meant to close
- Inconsistent grain size that chips micro-drills
- Low-density bars that leave porosity after grinding
- Need for both solid and helical-coolant blanks from one mill
- Replacing HSS tool blanks where wear life is too short
Who sends the RFQ
- Cutting-tool manufacturers grinding drills, end mills, taps, and reamers
- PCB and electronics tool shops that need fine-grain micro-drill blanks
- Woodworking and composite tool makers
- Buyers who send drawings or samples for non-standard diameters and coolant-hole layouts
Process used on the line
- Powder metallurgy from tungsten carbide raw material
- Sintered finished
- HIP sintered
- Rough grinding
- Finish grind to H6 / RA0.04 when specified
Published specifications
Only numbers that appear on the source product page or the matching catalog PDF.
| Grade YL10.2 | Density 14.4-14.6 g/cm3, >=92.2 HRA, TRS >=4000 MPa, grain 0.6-0.8 um, 10% Co 90% WC, ISO K30 |
|---|---|
| Grade YG6X | Density 14.85-15.0 g/cm3, >=92.0 HRA, TRS >=1860 MPa, grain 0.8-1.0 um, 6% Co 94% WC, ISO K10 |
| Grade YG6 | Density 14.85-15.05 g/cm3 class, 6% Co, ISO K-class per catalog |
| Grade YG8 | Density 14.65-14.85 g/cm3, >=89.5 HRA, TRS >=2320 MPa, grain 1.2-2.0 um, 8% Co 92% WC, ISO K20 |
| Grade YG10 | Density 14.5-14.6 g/cm3, >=85.5 HRA, TRS >=2600 MPa, grain 1.2-2.0 um, 10% Co 90% WC, ISO K20 |
| Grade YG15 | Density 14.0-14.1 g/cm3, >=85.0 HRA, TRS >=2800 MPa, grain 1.2-2.0 um, 15% Co 85% WC |
| Ground finish | RA0.04; ISO 286-2 h-series |

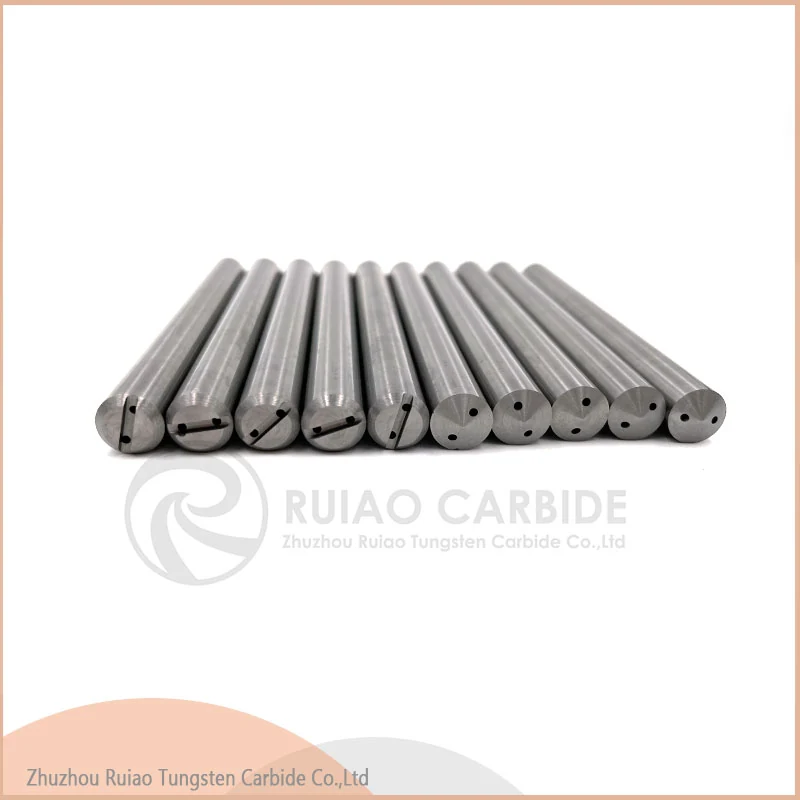

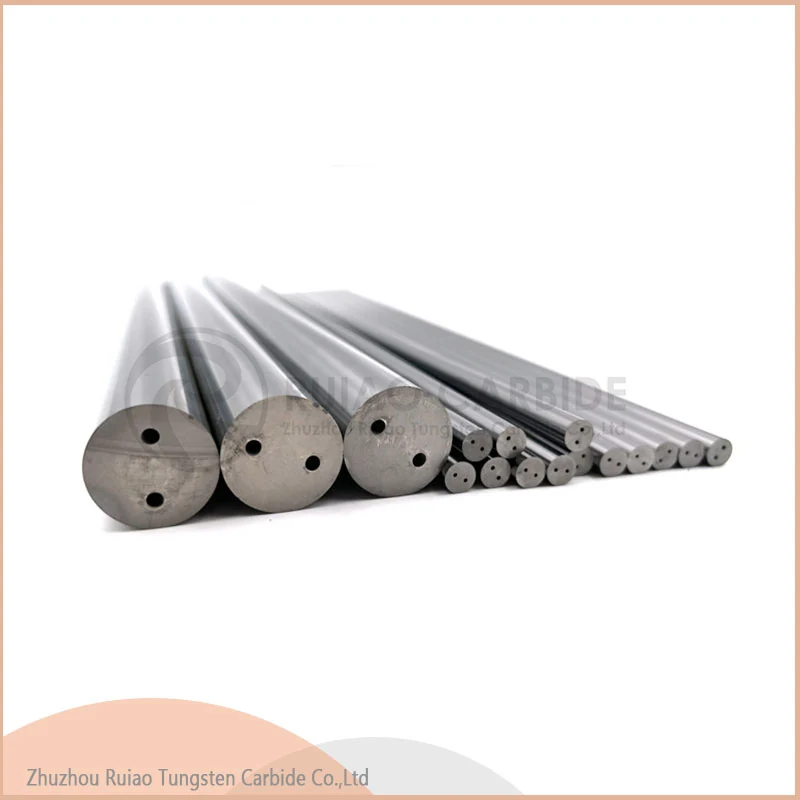

| Configurations | Straight blanks and helical twist / coolant-hole blanks |
Materials
- Tungsten carbide (WC) with cobalt binder
- Published grades YL10.2, YG6X, YG6, YG8, YG10, YG15
Technical features

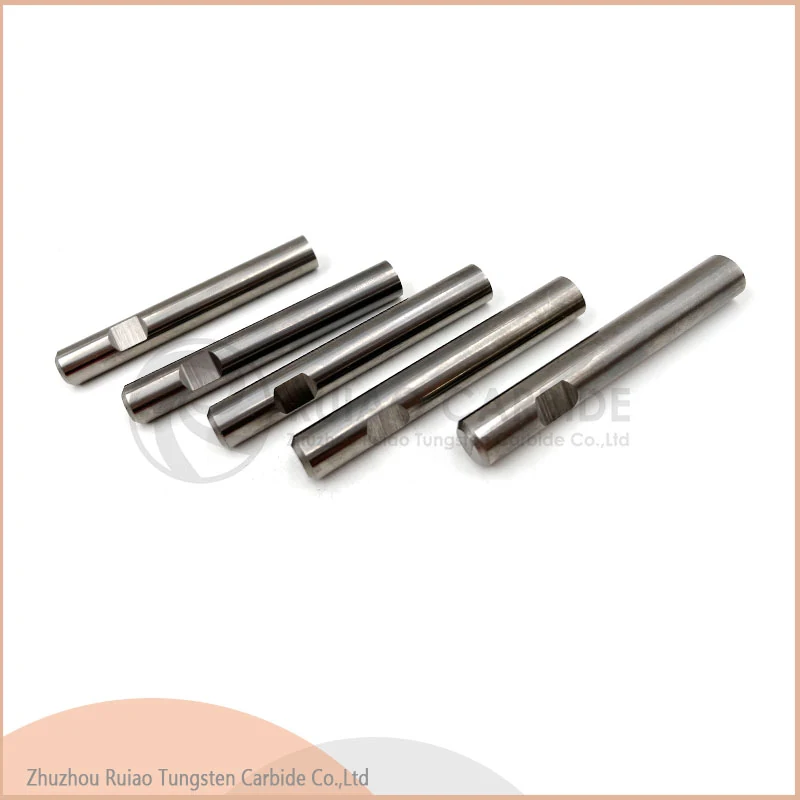

- Solid tungsten carbide rod, ground H6 option in the product line
- Ultra-fine grain or general-purpose grades
- Straight or helical twist / coolant-hole blank configurations
- HIP sintered and sintered-finished process routes used on the Ruiao line
- Rough grinding available before finish grind
Against the usual substitute
| HSS tool blanks | Carbide rods are used where HSS wear life is not enough for drills, end mills, and holemaking tools |
|---|---|
| Unground random-length bar | Ground H6 rods with RA0.04 reduce grinding stock and help hold tool diameter |
Customization
- Custom diameters, lengths, and coolant-hole layouts from customer drawings or samples
- Ultra-fine or general-purpose grade selection by application
How to specify
- Match grade to work: YL10.2 / fine grain for micro-drills and PCB tools; YG6X for higher hardness finishing tools; YG8 / YG10 / YG15 when toughness matters more than peak hardness
- Specify straight or helical coolant holes on the RFQ if the finished tool needs through-coolant
- Send a drawing or sample for non-standard diameters
- Download the Tungsten Carbide Rods catalog for grade and tolerance tables
Questions buyers actually ask
Which rod grade should we use for PCB micro-drills?
The homepage specifies exceptionally fine and uniform grain for micro-drills and micro-end mills. Catalog grade YL10.2 lists 0.6-0.8 um grain, >=92.2 HRA and TRS >=4000 MPa.
Do you supply helical coolant-hole blanks?
Yes. The product line covers straight and helical twist blank configurations.
What ground tolerance is published?
The rods catalog lists ground rod surface roughness RA0.04 and ISO 286-2 h-series fits. The product slug is H6.
Can we order from a drawing?
Yes. Ruiao accepts custom manufacturing from customer specifications, samples, or drawings.

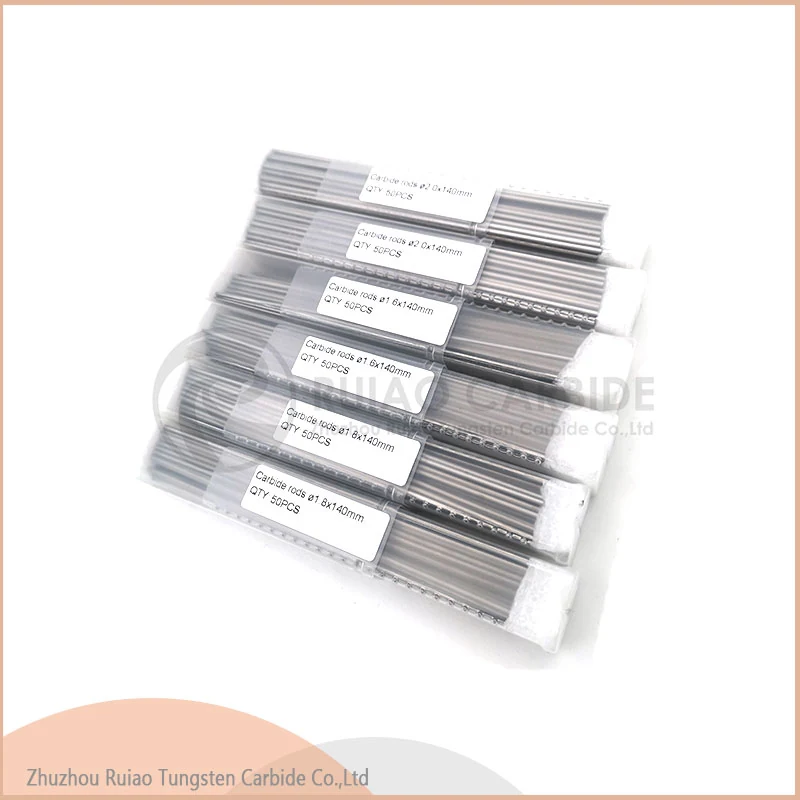

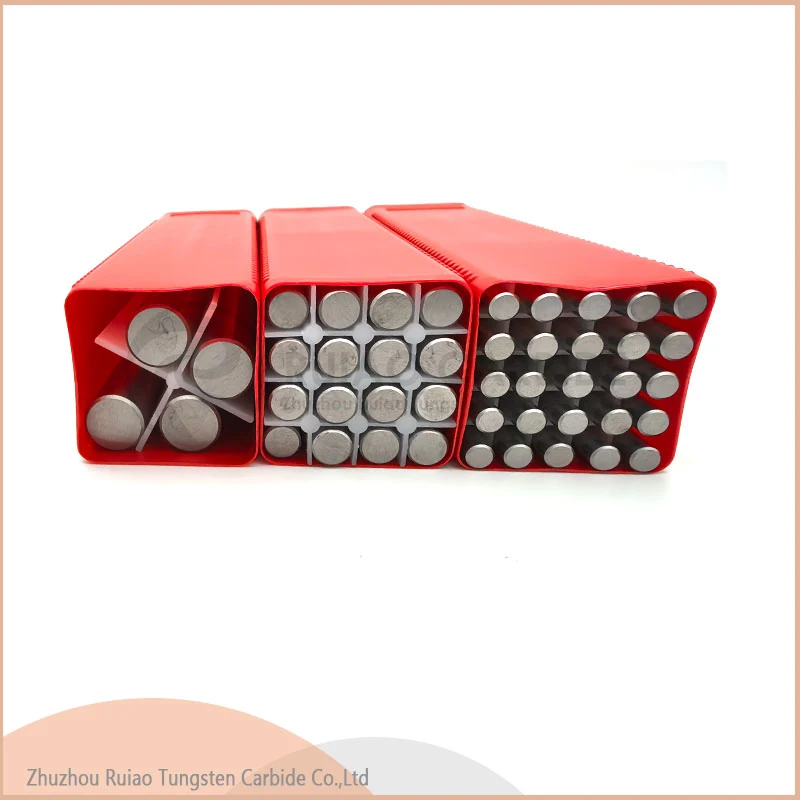

How are rods shipped?
The factory lists sea freight for larger lots and express for faster deliveries.
