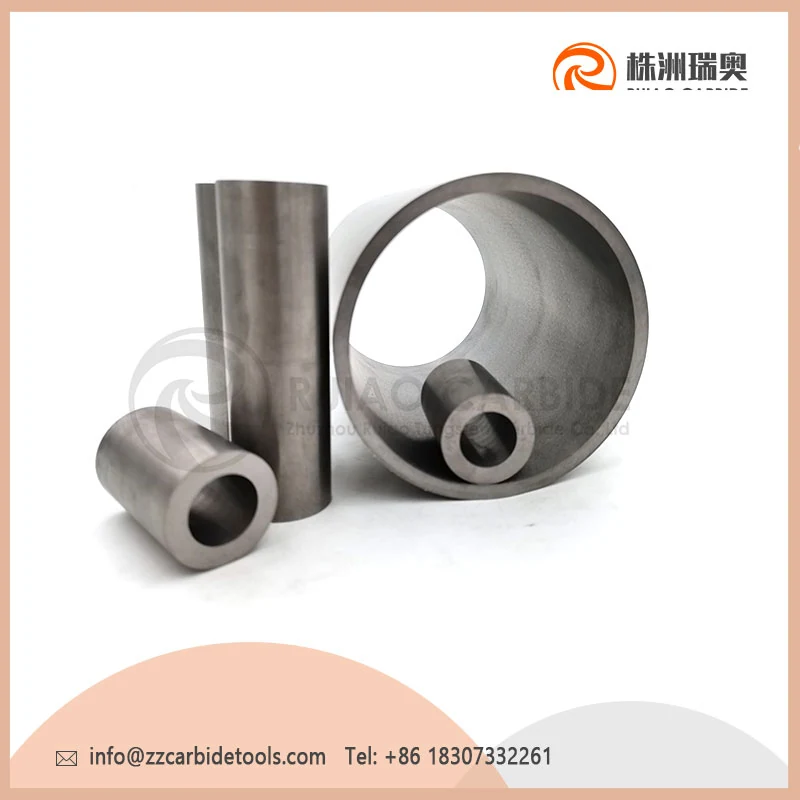

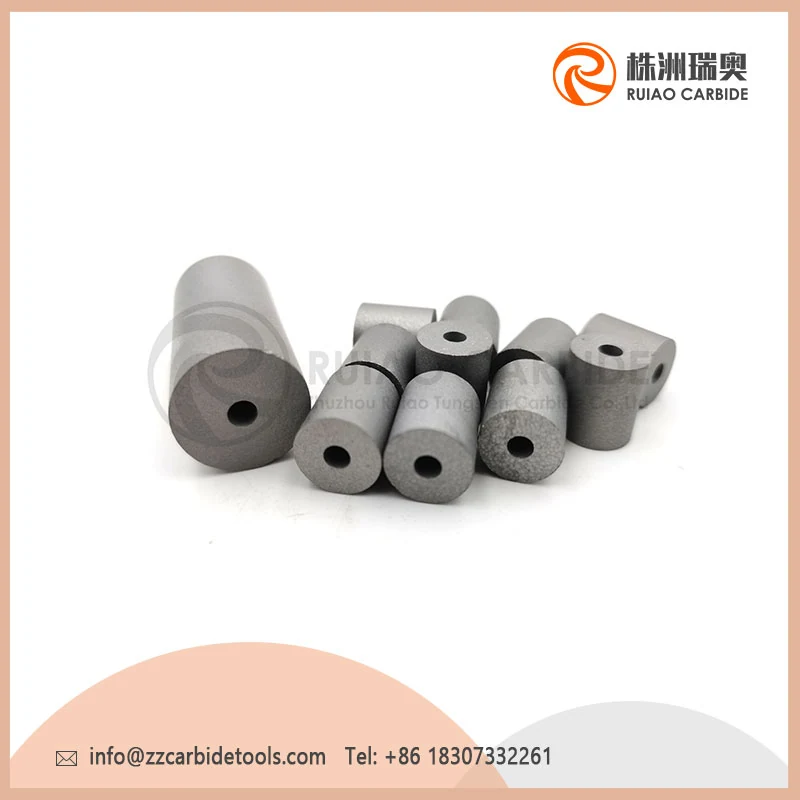

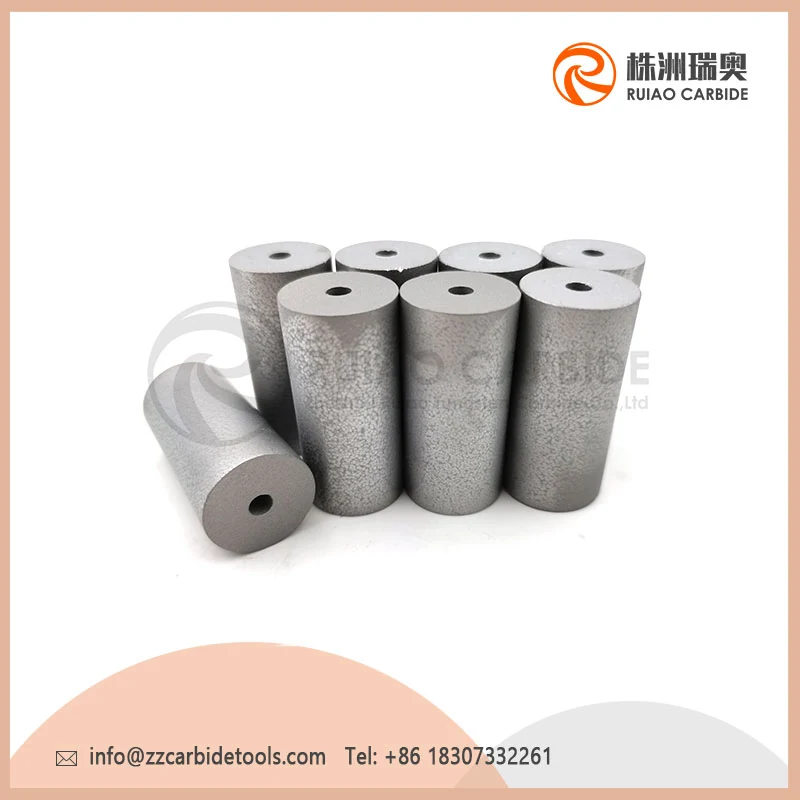

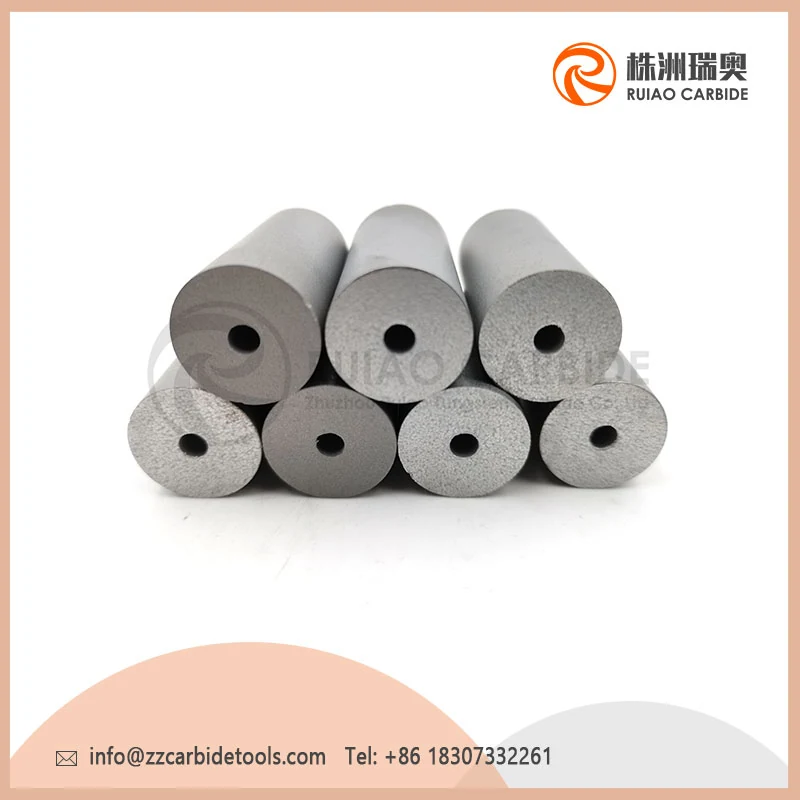

Tungsten Carbide Cold Forging Dies
Tungsten carbide dies for cold punching and heading of screws and nuts. Designed for copper, aluminum and steel fasteners, screw nails and rivets. High impact resistance, toughness, wear resistance and quality consistency. Made to drawings or samples.
Catalog PDF: Carbide nibs / cold forging dies
Where it runs
- Cold heading of screws and nuts
- Punching copper, aluminum and steel fasteners
- Rivet and nail tooling
Problems this part is meant to close
- Steel die wear and cracking under impact
Who sends the RFQ
- Fastener plants and die shops that cold-head or punch standard parts
Process used on the line
- Sintered carbide die nibs
- Finish to drawing
Published specifications
Only numbers that appear on the source product page or the matching catalog PDF.
| YG4C | 15.00 g/cm3, 89.5 HRA, TRS 1800 N/mm2 |
|---|---|
| YG6 | 14.80 g/cm3, 89.5 HRA, TRS 1700 N/mm2 |
| YG8 | 14.70 g/cm3, 88.5 HRA, TRS 2300 N/mm2 |
| YG8C | 14.70 g/cm3, 88.0 HRA, TRS 2300 N/mm2 |
| YG9C | 14.50 g/cm3, 87.0 HRA, TRS 2400 N/mm2 |
| YG11C | 14.40 g/cm3, 86.5 HRA, TRS 2450 N/mm2 |
| YG13C | 14.30 g/cm3, 86.0 HRA, TRS 2500 N/mm2 |
| YG15 | 14.00 g/cm3, 86.5 HRA, TRS 2500 N/mm2 |
| YG16 | 14.10-14.30 g/cm3, 87.5 HRA, TRS 2400 N/mm2 |
| YG20 | 13.40-13.70 g/cm3, 85.0 HRA, TRS 2254 N/mm2 — stamping dies under heavy impact |
Materials
- WC-Co grades YG4C through YG20 as published
Technical features
- Cold punching and heading dies
- Grade table published on the heading-dies page
Against the usual substitute
| Steel heading dies | Carbide dies are used for wear and impact resistance on copper, aluminum and steel fasteners |
|---|
Customization
- Produce according to drawings or samples
How to specify
- Send wire size, cavity drawing and preferred grade. YG20 is listed for heavy-impact stamping dies.
Questions buyers actually ask
Can you make cold heading dies from our drawing or sample?
Yes. Ruiao accepts custom manufacturing from customer specifications, samples, or drawings.
How do we request a quote?
WhatsApp +86 18307332261 or email [email protected] with the grade, size, quantity, and a drawing if you have one.
How are larger lots shipped?
The factory lists sea freight for larger lots and express for faster deliveries.
Which grade is listed for heavy impact stamping?
YG20, density 13.40-13.70 g/cm3, 85.0 HRA, TRS 2254 N/mm2.
