Key Benefits
- Attaches 20x20 mm labels to nylon, PET, non-woven or PLA film with ultrasonic bonding for strong, clean seals
- Achieves 99.8% finished product pass rate with automatic shutdown on missing label or film
- Runs 40 to 60 marks per minute with stable trigger-type ultrasonic sealing and low failure rate
- Switches between long-line and short-line formats without mechanical changeover
- One operator can manage the machine after training, replacing manual label attachment
- Supports multiple film types including biodegradable PLA and non-woven for compostable packaging
Application Scenarios
- Tea blenders producing pyramid tea bags with branded labels for retail or gift packaging
- Coffee roasters adding hanging-ear bags with custom labels for direct-to-consumer sales
- Contract packers running multiple label designs on one line with quick format switching
- Health-tea producers using biodegradable PLA film with branded labels for eco-conscious markets
Who It Is For
- Tea and coffee brands moving from manual label attachment to automated tagging
- Packaging producers needing consistent label placement on pyramid or hanging-ear bags
- Contract packers serving multiple clients with different label designs and film types
- Brands requiring durable labels that survive handling and shipping without peeling
Problems It Solves
- Manual label attachment causes inconsistent placement, missing labels and high labor cost
- Glue or heat sealing damages delicate film or causes label lifting during transport
- Film misfeeds or missing labels go undetected, leading to rejected batches
- Inability to switch between long-line and short-line formats without downtime
- Low pass rate from inconsistent bonding leads to waste and rework
Technical Features
- Ultrasonic bonding with three sealing devices for consistent label adhesion
- Trigger-type ultrasonic system with high stability and low failure rate
- PLC control with human machine interface for full process monitoring
- Automatic shutdown when film or label is missing to prevent waste
- Supports switching between long-line and short-line formats without mechanical change
- Runs on single phase 220V 50Hz with air supply at 0.6 MPa
Specifications
| Machine model | C25 |
|---|---|
| Machine type | Accessory Machine |
| Packing material | Nylon, PET, Non-woven, PLA |
| Label size | 20 x 20 mm |
| Label length | 110 - 130 mm |
| Film width | 120, 140, 160, 180 mm |
| Production speed | 40 - 60 marks/min |
| Bonding method | Ultrasonic |
| Qty of sealing device | 3 sets |
| Air supply pressure | 0.6 MPa |
| Power supply | AC 220V / 50Hz |
| Machine dimension | L1200 x W1200 x H1800 mm |
| Machine weight | About 500 kg |
| Finished product pass rate | 99.8% |
| Label roll core diameter | 76 mm |
| Label roll outside diameter | 400 mm |
Packing Materials It Runs

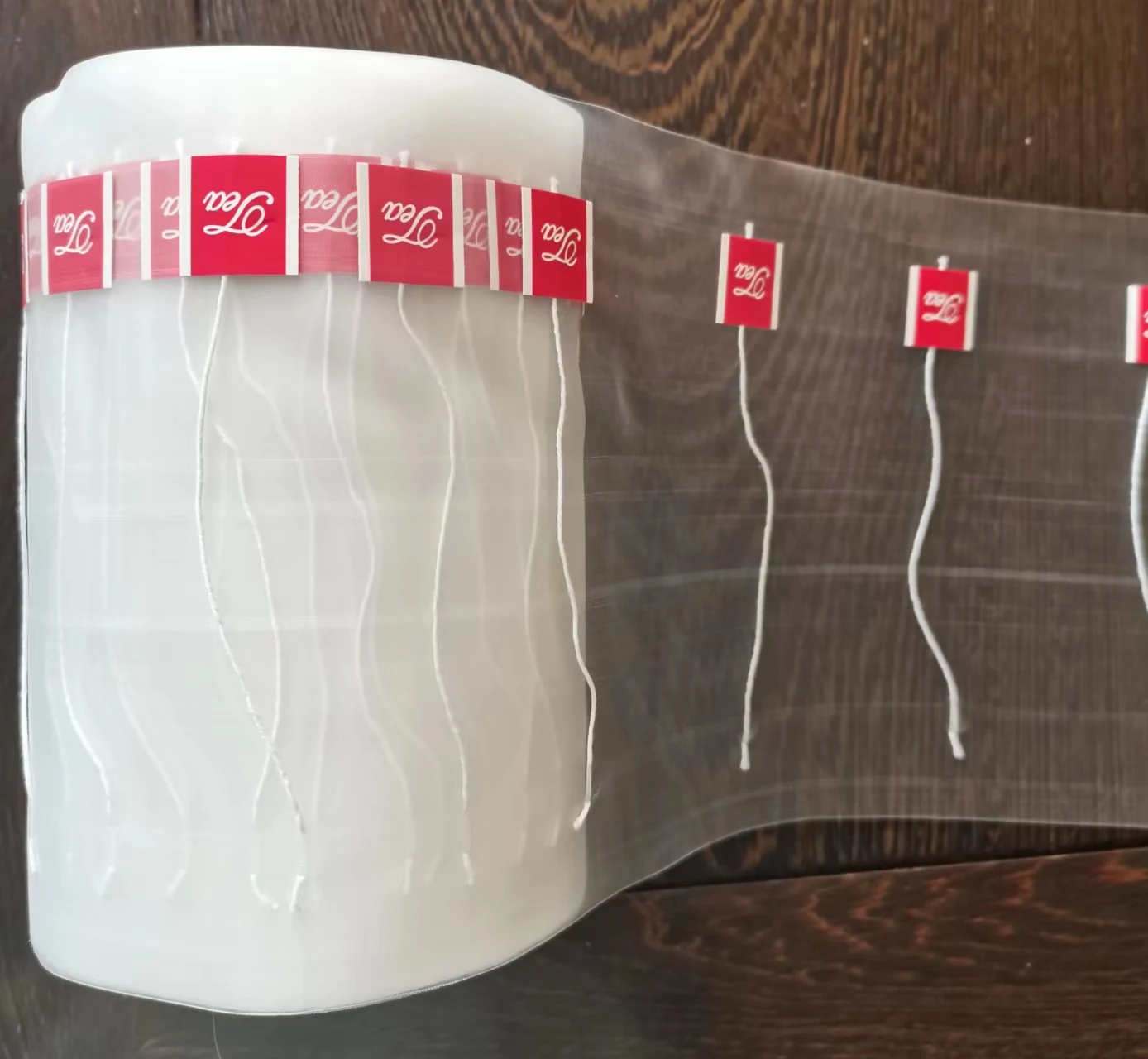

- Nylon film for durable, transparent labeling
- PET film for high clarity and moisture resistance

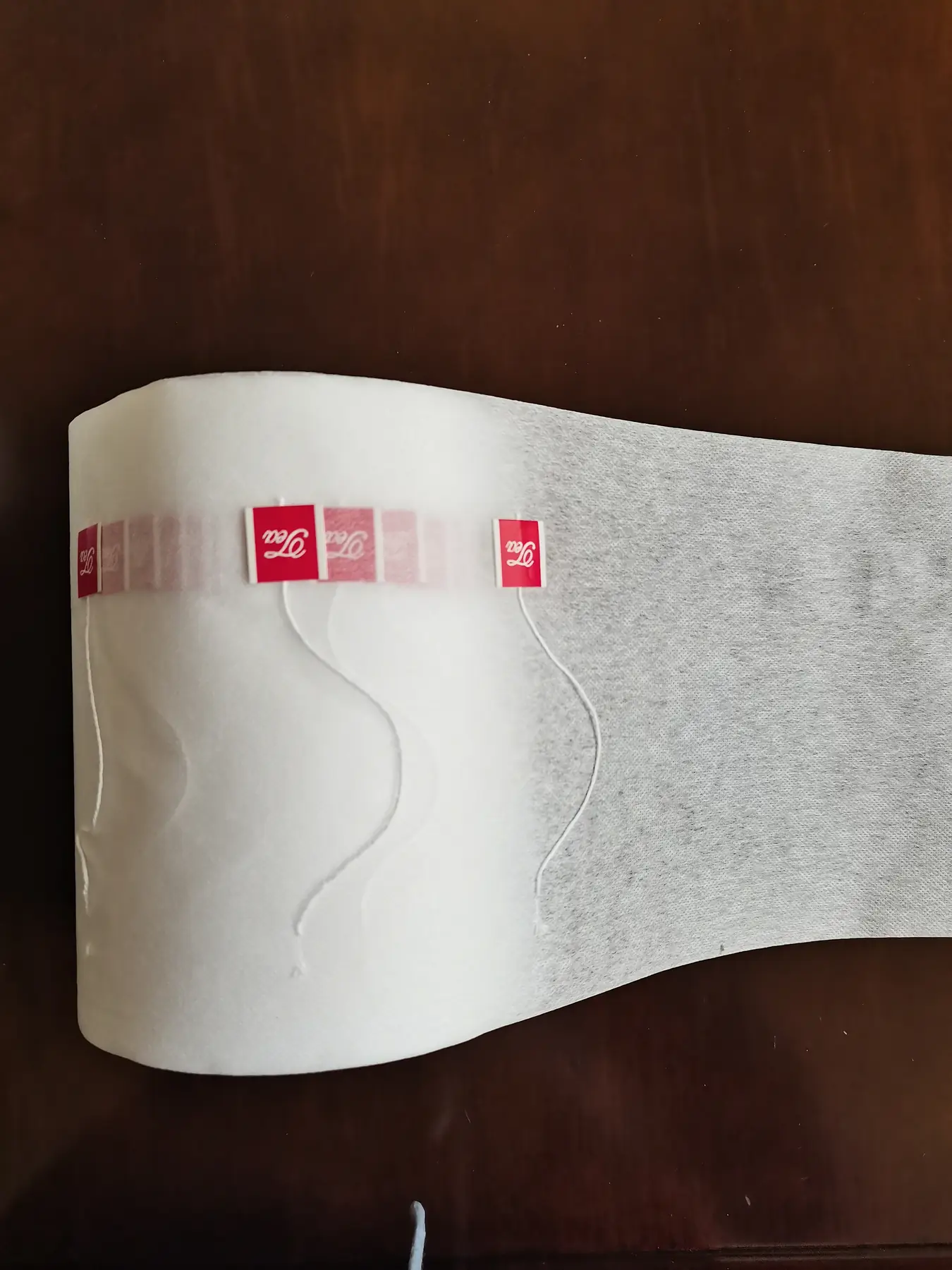

- Non-woven fabric film for textured, eco-friendly label backing
- PLA corn fibre film for 100% biodegradable labeling
How the Machine Works
- 1Film unwinding and alignment
- 2Label feeding and positioning
- 3Ultrasonic bonding of label to film
- 4Automatic detection of missing label or film
- 5Cutting and discharge of finished tag
Quality Control Before Shipment
- F
- i
- n
- i
- s
- h
- e
- d
- p
- r
- o
- d
- u
- c
- t
- p
- a
- s
- s
- r
- a
- t
- e
- v
- e
- r
- i
- f
- i
- e
- d
- a
- t
- 9
- 9
- .
- 8
- %
- d
- u
- r
- i
- n
- g
- t
- e
- s
- t
- r
- u
- n
- s
- A
- u
- t
- o
- m
- a
- t
- i
- c
- s
- h
- u
- t
- d
- o
- w
- n
- t
- r
- i
- g
- g
- e
- r
- e
- d
- o
- n
- m
- i
- s
- s
- i
- n
- g
- l
- a
- b
- e
- l
- o
- r
- f
- i
- l
- m
- d
- u
- r
- i
- n
- g
- o
- p
- e
- r
- a
- t
- i
- o
- n
- U
- l
- t
- r
- a
- s
- o
- n
- i
- c
- b
- o
- n
- d
- i
- n
- g
- s
- t
- r
- e
- n
- g
- t
- h
- c
- h
- e
- c
- k
- e
- d
- d
- u
- r
- i
- n
- g
- s
- e
- t
- u
- p
- a
- n
- d
- c
- a
- l
- i
- b
- r
- a
- t
- i
- o
- n
- L
- a
- b
- e
- l
- a
- l
- i
- g
- n
- m
- e
- n
- t
- i
- n
- s
- p
- e
- c
- t
- e
- d
- v
- i
- s
- u
- a
- l
- l
- y
- a
- n
- d
- b
- y
- s
- e
- n
- s
- o
- r
- b
- e
- f
- o
- r
- e
- f
- i
- n
- a
- l
- d
- i
- s
- c
- h
- a
- r
- g
- e
Certifications
- ISO
- CE
Customization Options
- Choice of film width at 120, 140, 160 or 180 mm to match bag size
- Label size fixed at 20x20 mm, but film length adjustable between 110 and 130 mm
- Support for nylon, PET, non-woven or PLA film based on brand and sustainability needs
- Air supply pressure adjusted to 0.6 MPa or customised for site conditions
- Power supply configured to 220V 50Hz or adapted to destination market on request
How It Compares
| Manual label attachment | The C25 replaces hand placement with consistent, high-speed bonding, but requires a fixed footprint and trained operator |
|---|---|
| Glue-based labeling machine | Ultrasonic bonding avoids adhesive residue and film damage, but requires an air supply and higher initial setup |
| Heat sealing machine | Ultrasonic sealing avoids scorching thin films and provides cleaner edges, but needs precise air pressure control |
Use Guide
- 1Connect a clean dry air supply at 0.6 MPa and a single phase 220V 50Hz power outlet
- 2Load the film roll with width matching your selected 120, 140, 160 or 180 mm setting
- 3Install the label roll with 76 mm core and ensure outer diameter does not exceed 400 mm
- 4Set label length between 110 and 130 mm and verify alignment on the first few marks
- 5Run a test batch of 20 marks and check label adhesion and placement before full production
- 6Clean the ultrasonic heads and label feed path between different film types to prevent contamination
C25 Nylon Tagging Tea Rolling Machine FAQ
What film widths does the C25 support?
120 mm, 140 mm, 160 mm, and 180 mm, depending on the model and bag size
Can it run biodegradable PLA film?
Yes. The C25 supports PLA corn fibre film as well as nylon, PET and non-woven fabric
What is the production speed?
40 to 60 marks per minute, depending on film type and label size
Does it detect missing labels?
Yes. The machine has automatic shutdown when a label or film is missing
What power supply does it need?
Single phase 220V 50Hz. We can adjust the voltage and plug for your destination market
How much space and lifting capacity do I need?
The machine measures 1200 x 1200 x 1800 mm and weighs about 500 kg. Plan for forklift access and doorway clearance
Is the machine certified?
Sengong is certified to ISO and CE. Certificates are available on request via email or WhatsApp
