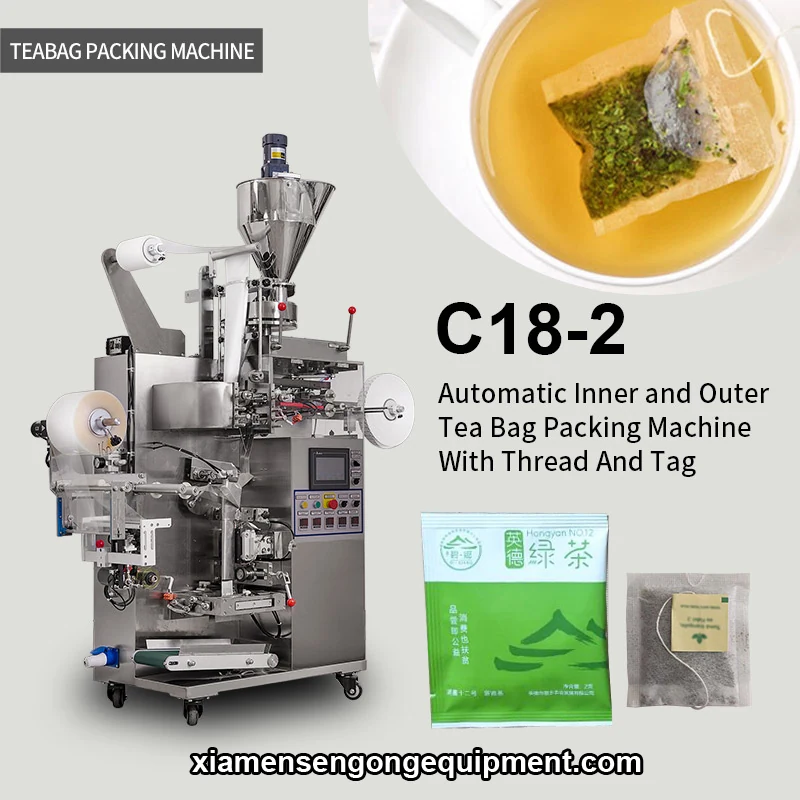

C18-2 heat sealing herbal tea bag filter paper machine with control panel and material feed system

Completed double-layer tea bags with visible inner filter paper and branded outer envelope produced on the C18-2 machine

Filter Paper Tea Bag Packing Machines · Model C18-

C18-2 Heat Sealing Herbal Tea Bag Filter Paper Machine (Upgrade Version)

The C18-2 forms and fills inner and outer tea bags simultaneously from filter paper and composite materials, running 40 to 60 bags per minute at 3 to 15 ml per bag. It is designed for tea blenders and health-tea producers who need to pack small granular blends with a visible inner bag and a branded outer envelope. The machine uses a measuring cup filler and heat sealing to close both bags in one cycle, with optional thread and tag attachment and photoelectric positioning for accurate tag placement.

Forms inner and outer tea bags at the same time, reducing manual handling and improving hygiene
Heat sealing ensures a tight closure without adhesive, suitable for dry granular products
Photoelectric positioning allows accurate tag placement on the outer bag for consistent branding
Adjustable inner and outer bag sizes to match different product formats and packaging designs

Key Benefits

Forms inner and outer tea bags at the same time, reducing manual handling and improving hygiene
Heat sealing ensures a tight closure without adhesive, suitable for dry granular products
Photoelectric positioning allows accurate tag placement on the outer bag for consistent branding
Adjustable inner and outer bag sizes to match different product formats and packaging designs
Measuring cup filling delivers consistent volume across batches with no overfill or underfill
Optional thread and tag attachment reduces need for secondary packaging steps

Application Scenarios

Tea blenders packaging small granular herbal and medicinal teas in branded double-layered bags
Health-tea producers running multiple short batches with different bag sizes and tag designs
Contract packers handling private label orders for retailers who require a premium outer envelope
Manufacturers upgrading from manual bagging to semi-automated packing with consistent fill volume

Who It Is For

Tea and herbal tea producers moving from hand packing to in-house automatic bagging
Brands that need a visible inner filter paper bag with a branded outer envelope
Producers who require accurate tag placement for compliance or branding purposes
Buyers replacing older machines with limited adjustability and no photoelectric control

Problems It Solves

Manual inner and outer bag formation leads to inconsistent fill and high labor cost
Inaccurate tag placement on outer bags causes rework or rejection by retailers
Older machines cannot adjust inner and outer bag sizes independently for different product lines
Lack of photoelectric control results in misaligned tags and poor product appearance
Inconsistent fill volume from gravity feeders leads to customer complaints and giveaway

Technical Features

Automatic simultaneous formation of inner and outer tea bags
Measuring cup filler for volume-based filling at 3 to 15 ml per bag
Heat sealing method for secure closure without adhesive
Photoelectric positioning system for accurate tag placement on outer bag
Adjustable inner bag size from 50 to 70 mm length and 40 to 80 mm width
Adjustable outer bag size from 70 to 120 mm length and 60 to 90 mm width
Optional thread and tag attachment with 155 mm thread length
Tag size adjustable at 20 to 24 mm length and 40 to 55 mm width
Runs on single phase 220V 50Hz with 3.7 kW motor power
Compact footprint of 1250 x 700 x 1800 mm (L x W x H)

Specifications

Machine model	C18-2
Machine type	Tea Bag Packing Machine Series
Packing material	Paper/Plastic, Plastic/Plastic, Plastic/Aluminum/Plastic, Paper/Aluminum/Plastic, Tea filter paper, Thread, Tag paper
Measuring method	Measuring cup filler
Filling range	3-15 ml/bag
Packing speed	40-60 bags/min
Inner bag size	L: 50-70 mm, W: 40-80 mm
Outer bag size	L: 70-120 mm, W: 60-90 mm
Tag size	L: 20-24 mm, W: 40-55 mm
Thread length	155 mm
Power supply	220V, 50Hz, 3.7 kW
Dimension	1250 x 700 x 1800 mm (L x W x H)
Machine weight	500 kg

Packing Materials It Runs

Tea filter paper for inner bags with thread and tag attachment
Composite paper for outer bags with optional aluminum layer
Plastic/Plastic, Plastic/Aluminum/Plastic, Paper/Aluminum/Plastic laminates for outer envelopes
Thread for tying the bag, 155 mm long
Tag paper for branding and product identification

How the Machine Works

1Film and material feeding for inner and outer bag formation
2Measuring cup filling with volume set at 3 to 15 ml
3Inner bag sealing and tag attachment (optional)
4Outer bag formation and sealing with photoelectric positioning
5Final discharge of completed double-layer tea bag

Quality Control Before Shipment

Certifications

Customization Options

Adjustable inner and outer bag sizes to match product and brand requirements
Option to include or exclude thread and tag attachment based on customer need
Tag size and position set via photoelectric control for consistent branding
Power supply configured for destination market voltage and plug type on request
Material feed path adjusted for different paper or composite film types

How It Compares

Manual inner and outer bag formation	The C18-2 automates both bag formation and sealing, reducing labor and improving consistency, but requires a fixed power and air supply
Flat bag machine with separate sealing	The C18-2 forms both bags in one cycle, reducing handling, but uses heat sealing which may not suit heat-sensitive materials
Machine without photoelectric positioning	The C18-2 ensures accurate tag placement, but requires a tag with a detectable edge for the sensor

Use Guide

1Connect a clean dry power supply at 220V 50Hz and ensure the 3.7 kW motor is supported
2Load the inner filter paper and outer composite film rolls according to the bag size settings
3Set the measuring cup to 3 to 15 ml based on the product density and desired fill
4Adjust inner and outer bag dimensions to match the required bag format
5Enable photoelectric positioning and test tag placement with a sample run
6Run ten test bags and verify fill volume, seal integrity, and tag alignment before full batch

C18-2 Heat Sealing Herbal Tea Bag Filter Paper Machine (Upgrade Version) FAQ

What is the filling range of the C18-2?

3 to 15 ml per bag, using a measuring cup filler for volume-based filling.

How fast does it run?

40 to 60 bags per minute, depending on bag size, material, and fill consistency.

Can it handle different bag sizes?

Yes. Inner bag size is adjustable from 50 to 70 mm length and 40 to 80 mm width. Outer bag size is adjustable from 70 to 120 mm length and 60 to 90 mm width.

Does it have photoelectric positioning for tags?

Yes. The machine uses photoelectric positioning to ensure accurate tag placement on the outer bag.

Can I add thread and tags?

Yes. Thread and tag attachment are optional and can be enabled based on customer requirement.

What power supply does it need?

220V 50Hz single phase, 3.7 kW. We can arrange the voltage and plug type for your destination market.

How much space and lifting capacity do I need?

The machine measures 1250 x 700 x 1800 mm and weighs 500 kg, so plan for a doorway height and forklift access accordingly.
