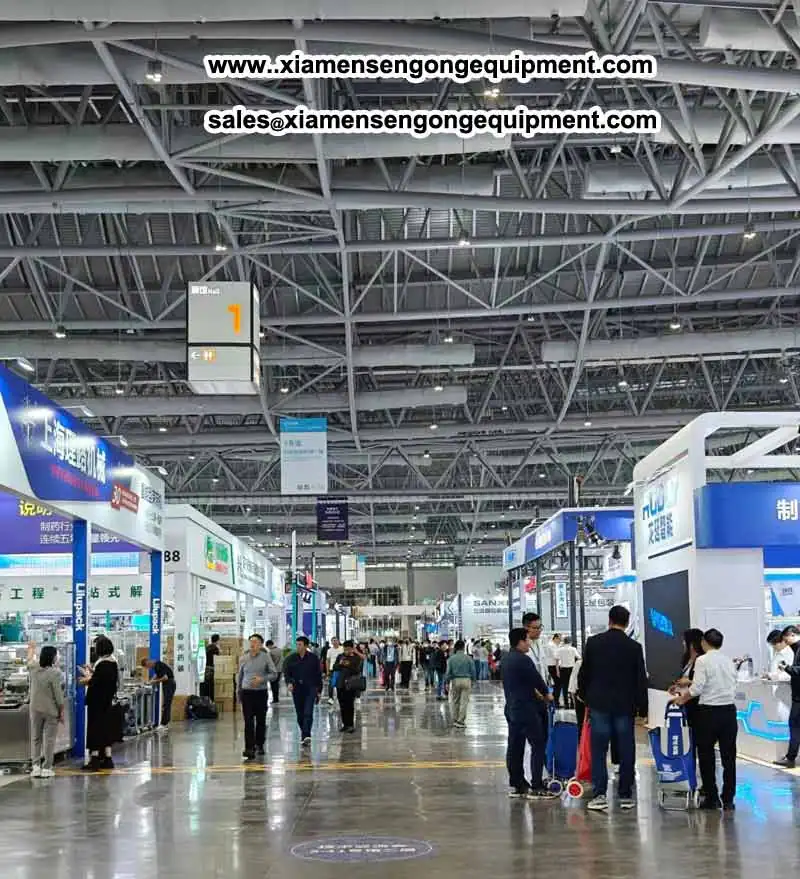

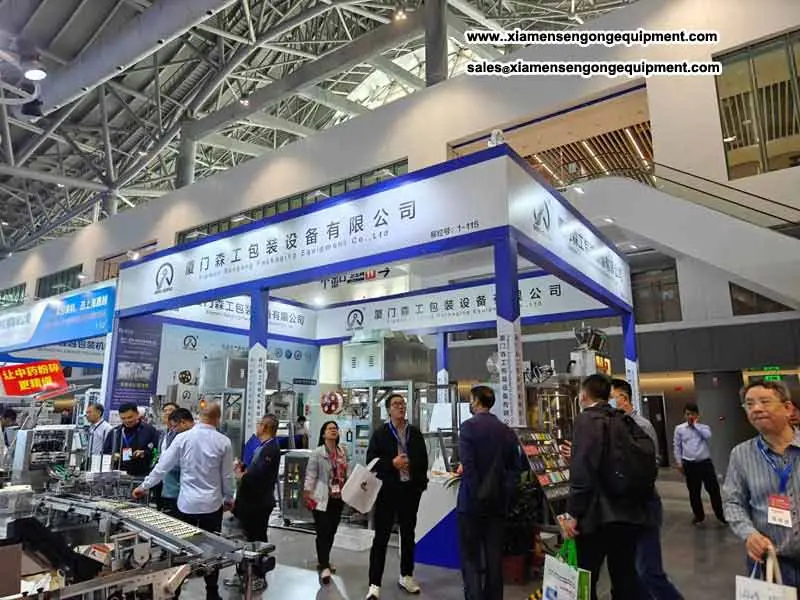

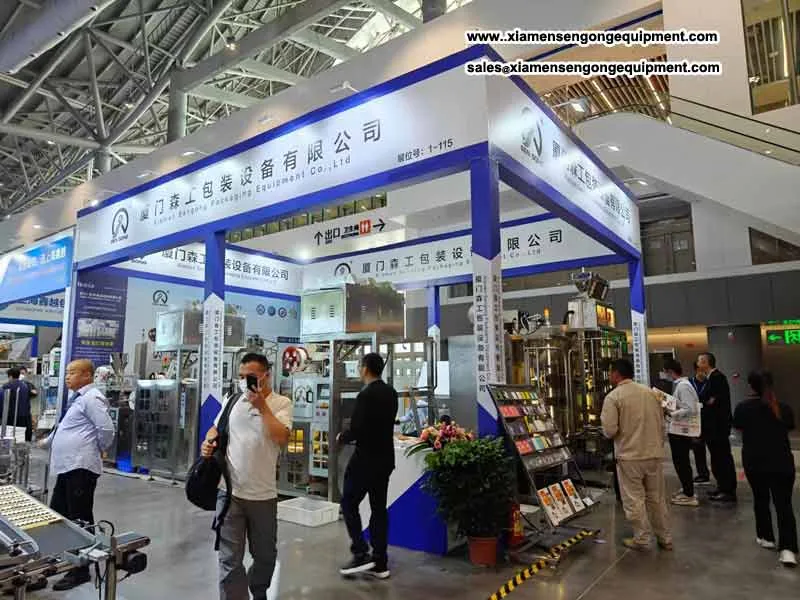

Our Pyramid Tea&coffee Bag Packing Machine on CIPM

Automatic Pyramid Tea and Coffee Bag Packing Machine

The machine forms, fills and ultrasonically seals pyramid tea and coffee bags from a single roll of filter film, running 30 to 60 bags per minute at 1 to 10 g per bag. It is designed for tea blenders, coffee roasters and health-tea producers who need to move from hand filling or outsourced packing to in-house automatic bagging. The system uses electronic scale filling to hold weight accuracy to 0.1 g per bag, and two ultrasonic sealing devices to close the bag without heat, glue or a wide waste edge. It accepts nylon and non-woven filter film imported from Japan, as well as PET and PLA biodegradable films.

Key Benefits

['Handles whole leaf, coarse herb and coffee grounds that jam auger fillers on flat bag machines', 'Ultrasonic sealing avoids heat and adhesive so delicate aromatics are not scorched at the seam', 'Electronic scale filling maintains 0.1 g accuracy per bag across a shift, reducing giveaway', 'Narrow seal edge reduces film consumption compared to wide heat-sealed borders', 'One operator can run the line after training instead of a hand-filling team', 'Roll width and seal length change over to three bag formats without a new machine']

Scenarios

['Tea estates packing single-origin whole leaf for retail sale under their own label', 'Herbal and health tea producers running short batches of many different blends', 'Contract packers serving several tea brands from one line with quick format changeover', 'Coffee roasters packaging ground coffee in pyramid bags for direct-to-consumer or retail']

Who for

['Tea blenders moving from outsourced packing to in-house pyramid bagging', 'Herbal tea producers whose leaf is too coarse for flat filter paper bags', 'Coffee roasters needing automatic hanging-ear bag packing for drip coffee', 'Brands that need the leaf or grounds visible through a transparent biodegradable bag']

Problems Solved

['Coarse whole leaf bridges and jams in machines designed for cut and fibre grades', 'Heat sealing melts a wide edge into nylon film and wastes material on every bag', 'Hand filling gives inconsistent bag weight and cannot hold a 0.1 g target', 'Manual pyramid folding limits output far below a 30 to 60 bag per minute demand', 'Non-food-grade film risks failing customer and retailer safety audits']

Technical Features

['Ultrasonic sealing and cutting with two sealing devices for a tight narrow seam', 'Electronic scale filling with 0.1 g per bag accuracy across the 1 to 10 g range', 'Accepts nylon and non-woven filter film imported from Japan plus PET and PLA biodegradable material', 'Packing roll width selectable at 120, 140 or 160 mm', 'Seal length selectable at 50, 60, 70 or 80 mm', 'Runs on single phase 220V 50Hz at 1.2 kW with air supply at 0.6 MPa']

Materials

['Nylon mesh film imported from Japan, non-toxic, heat resistant and food grade', 'Non-woven fabric filter film for opaque pyramid bags', 'PET film for high clarity pyramid bags', 'PLA corn fibre film for 100% biodegradable transparent bags']

Process

['Film unwind and pyramid bag forming', 'Electronic scale weighing and filling', 'Ultrasonic sealing by two sealing devices', 'Cutting and discharge']

Quality Control

['Filling weight checked against the 0.1 g per bag accuracy target during run-off', 'Seal integrity inspected on the ultrasonic seam before the machine ships', 'Food contact film verified as non-toxic non-bacteria heat resistant food grade material', "Machine test run with the customer's own tea before dispatch on request"]

Certifications

['ISO', 'CE']

Customization

['Choice of 120, 140 or 160 mm roll width to match your bag size', 'Seal length set at 50, 60, 70 or 80 mm', 'Nylon, non-woven, PET or PLA film supplied to suit your brand and compostability claim', 'Air compressor supplied with the machine where site air is not available', 'Voltage and plug arranged for the destination market on request']

Comparison

[{'vs': 'Flat filter paper tea bag machine', 'point': 'The machine handles coarse whole leaf and shows the blend through the film, while filter paper suits fine cut and fannings at lower film cost'}, {'vs': 'Heat sealed pyramid machine', 'point': 'Ultrasonic sealing keeps the edge narrow and avoids scorching nylon, at the cost of an air supply requirement'}, {'vs': 'Manual pyramid bagging', 'point': 'The machine replaces a hand-filling team and holds bag weight consistent, but needs a fixed footprint of 1800 x 900 mm and an operator trained on changeover'}]

Use Guide

['Connect a clean dry air supply at 0.6 MPa and a single phase 220V 50Hz outlet', 'Load the film roll matched to your chosen 120, 140 or 160 mm width', 'Set seal length to 50, 60, 70 or 80 mm for the bag size you are running', 'Enter target fill weight between 1 and 10 g and calibrate the electronic scale with your own tea', 'Run ten sample bags and check weight and seal before starting the batch', 'Clean the filling hopper between blends to avoid carry-over of aroma']
