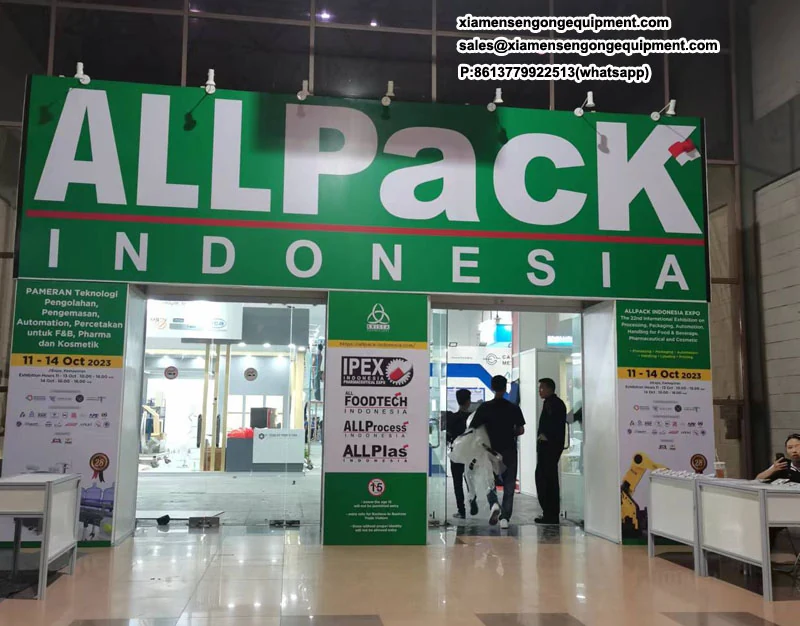

Senong Pyramid Tea Bag Machine Hot on ALLPACK INDONESIA EXPO 2023!
The Senong pyramid tea bag machine forms, fills and ultrasonically seals pyramid tea bags from a single roll of filter film, running at 30 to 60 bags per minute.
Automatic Pyramid Tea Bag Machine for High Speed Production
The Senong pyramid tea bag machine forms, fills and ultrasonically seals pyramid tea bags from a single roll of filter film, running at 30 to 60 bags per minute. It is designed for tea blenders, roasters and contract packers who need to move from hand filling to in-house automatic bagging. The machine handles whole leaf, flower and root blends that would otherwise bridge or jam in machines built for fine cut grades. Electronic scale filling ensures consistent weight across batches, with accuracy of 0.1 g per bag. Two ultrasonic sealing devices close the bag without heat or adhesive, preserving delicate aromatics and reducing film waste.
Solves Problems in Manual and Outdated Packaging Lines
This machine replaces hand folding and manual filling, which lead to inconsistent bag weight and slow output. It eliminates the need to outsource packing, reducing lead time and shipping costs. Heat-sealed machines scorch nylon film and create a wide waste edge; ultrasonic sealing avoids this by using precise vibration energy. The machine also prevents contamination from non-food-grade materials by using only food contact parts and certified films.
Runs Multiple Film Types for Brand and Sustainability Needs
The machine accepts nylon and non-woven filter film imported from Japan, as well as PET and PLA biodegradable films. This allows brands to choose between high clarity, opaque, or compostable packaging based on market requirements. The film is loaded as a roll and matched to the chosen bag size, with no need for tooling changes between formats.
Built for Quick Changeover and Easy Operation
The machine supports roll widths of 120, 140, and 160 mm, and seal lengths of 50, 60, 70, and 80 mm. These settings can be adjusted without tools. The human machine interface allows operators to set fill weight, speed and format. One trained operator can manage the line after initial setup, reducing labor dependency.
Backed by Factory Support and Global Shipment Experience
Sengong has over 18 years of experience in machine design and production. The company ships to the USA, UK, Italy, Canada, Australia, Russia and Turkey. Recent shipments include a 40ft container of pyramid tea bag machines to South Africa and a 40GP to America. After-sales support is available via online cloud service and WhatsApp.
Machines Mentioned
Filter Paper Tea Bag Packing MachinesC18 Automatic Filter Paper Tea Bag Outer Envelope MachineThe C18 automatically forms, fills and seals inner and outer tea bags from a single roll of filter paper and composite material, running 40 to 60 bagsView Machine
Filter Paper Tea Bag Packing MachinesC18 Automatic Filter Paper Automatic Tea Packaging MachineThe C18 forms and fills inner and outer tea bags from a single roll of filter paper and composite material, running 40 to 60 bags per minute at 3 to 1View MachineFilter Paper Tea Bag Packing MachinesC18 Automatic Filter Paper Black Tea Bag Packaging MachineThe C18 automatically forms, fills and seals inner and outer tea bags from filter paper and composite film, running 40 to 60 bags per minute at 3 to 1View MachineFrequently Asked Questions
What is the bag weight range and accuracy?
The machine fills 1 to 10 g per bag with an accuracy of 0.1 g per bag using electronic scale filling.
How fast does it run?
The machine runs at 30 to 60 bags per minute, depending on bag size, fill weight and material flow.
Can it run biodegradable film?
Yes. It runs PLA corn fibre and 100% biodegradable transparent material, as well as nylon, non-woven fabric and PET.
What power supply does it need?
Single phase 220V 50Hz. Motor power is 1.2 kW. Voltage can be arranged for the destination market on request.
Does it need compressed air?
Yes. The machine requires an air supply at 0.6 MPa. An air compressor can be supplied with the machine if site air is not available.
What film widths and seal lengths are supported?
Roll width options are 120, 140, and 160 mm. Seal length options are 50, 60, 70, and 80 mm.
Is the machine certified?
Sengong is certified to ISO and CE. Certificates are available upon request via email or WhatsApp.
Tell Us What You Pack and We Will Match the Machine
Send us your product, target bag weight and output per hour. We reply with the model, film option and a full quotation.
