LED linear light

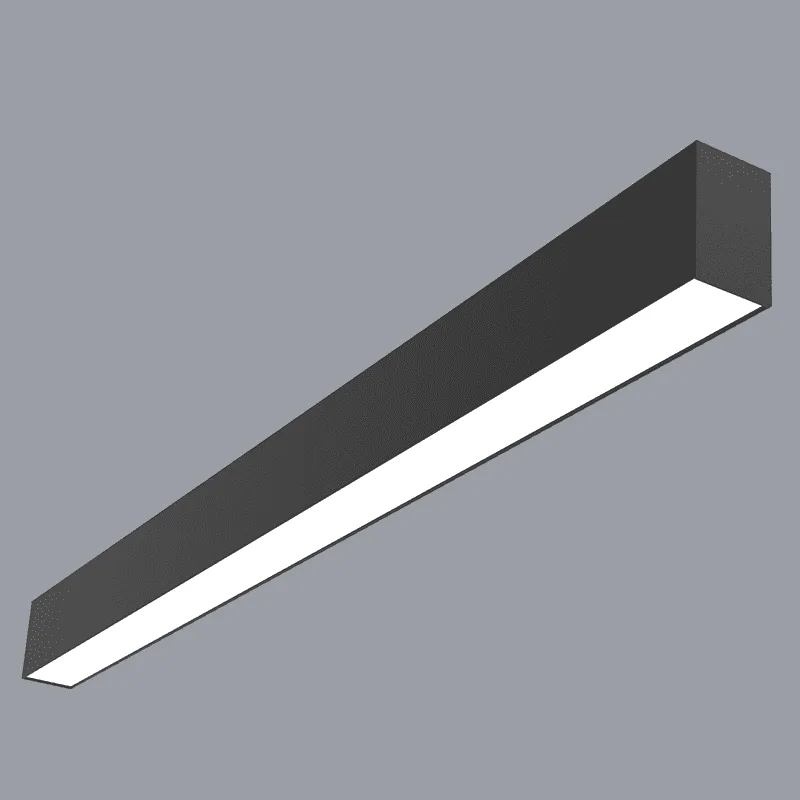

suspended LED linear tube light

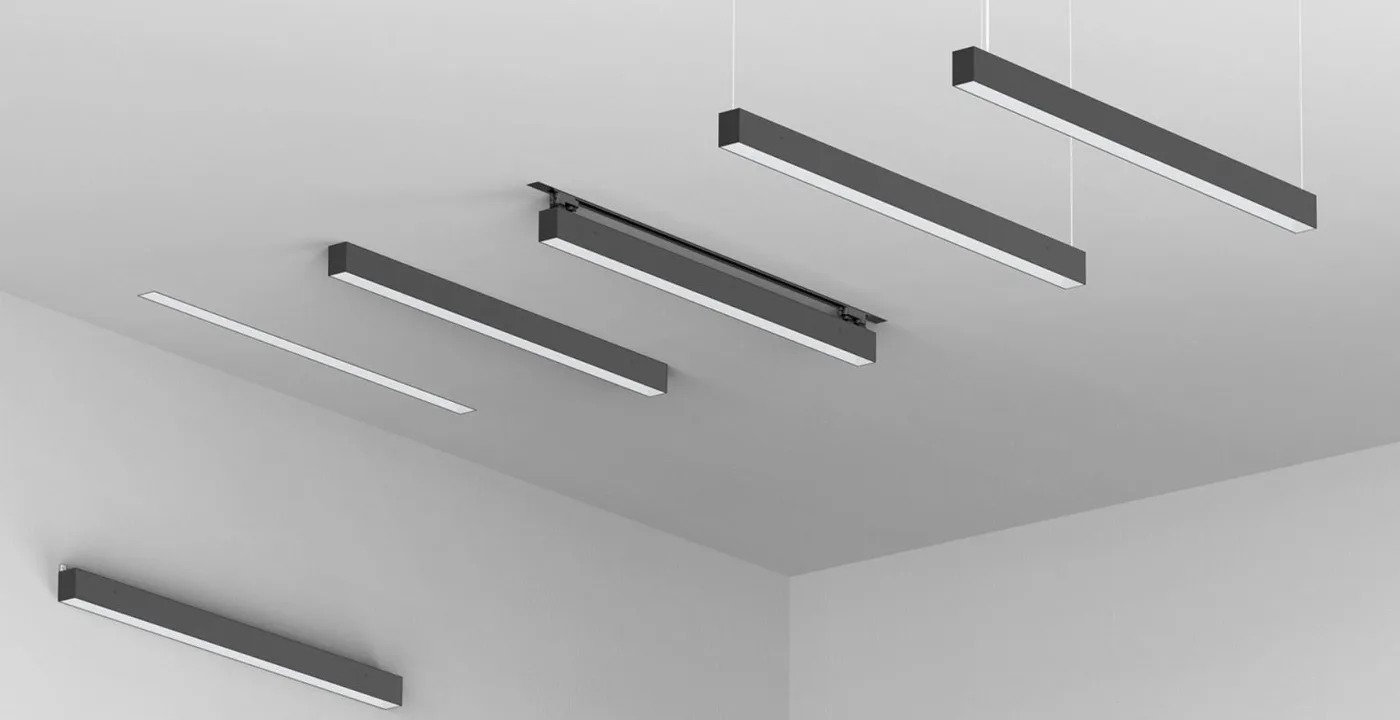

Suspended LED linear lights are sleek, modular lighting fixtures designed for surface suspension via cables or rods, ideal for commercial spaces like offices, retail stores, and exhibition halls.
Offices and retail need continuous linear light that replaces fluorescent tubes without extra drivers.
- Adjustable suspension height for flexible spatial adaptation.
- Uniform, glare-free linear illumination
- Customizable lengths, color temperatures (2700K–6500K) and dimming functions
- Modular design with seamless splicing; aluminum housing for efficient heat dissipation
- Space-saving, creates modern layered lighting effects
- Easy maintenance with quick component replacement
Certifications printed on this family of pages include CE, RoHS, FCC, SAA and PSE where the source listing says so. Confirm the file for this exact SKU before you print a spec sheet.
Specifications published on the source page
| Material | Aluminum Housing+PMMA Diffuser |
|---|---|
| Finish | white; black |
| Light efficacy | 110lm/w; 130-150lm/w (optional) |
| Input voltage | AC85-265V |
| CCT | 2700-6500K |
| Led type | 2835 smd (SamSung) |
| CRI | >80/90 |
| Beam angle | 120° |
| SDCM | <3 |
| Dimmable | No dimming/DALI ; 0/1-10V & Triac |
| Other | emergency or sensor (per request) |
| IP grade | IP20 |
| Operating Temperature | -20°C ~ +40°C |
| Lifespan | >50,000H(L90,Tc＝55°C) |
| Warranty | 3/5 years |
| Power | Size(mm) |
Factory note
Numbers in the table are copied from the current wellking-led.com product record. Lengths, wattages and IP ratings that are not in that record are not guessed here.
Customization and small trial orders are listed on the about page. Send cut length, CCT, CRI, dimming protocol and destination port with the quote.
