LED linear light

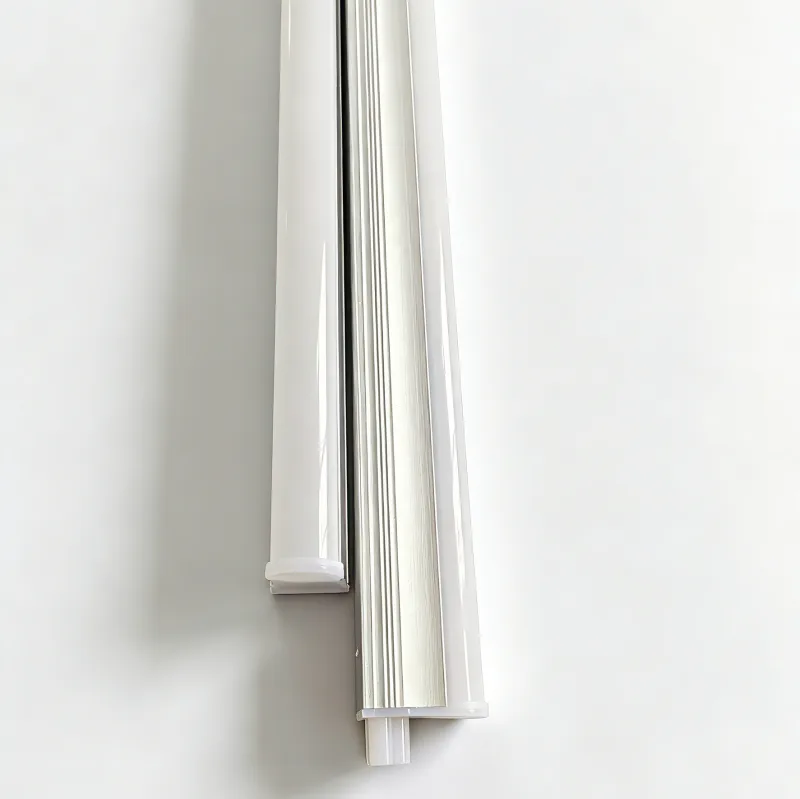

LED linear tube light – T5
All- in – one design with integrated driver & housing, no extra accessories needed, easy to install. Direct replacement for traditional T5, high luminous efficacy.
Offices and retail need continuous linear light that replaces fluorescent tubes without extra drivers.
- Product Features and advantage:
- one design : Integrated driver & housing, no extra accessories needed, easy to install.
- Direct replacement for traditional T
- high luminous efficacy.
- saving, low power consumption.
- Instant start, no flicker.
Certifications printed on this family of pages include CE, RoHS, FCC, SAA and PSE where the source listing says so. Confirm the file for this exact SKU before you print a spec sheet.
Specifications published on the source page
| Material | Aluminum Housing+PC cover |
|---|---|
| Finish | silver |
| Light efficacy | 110lm/w; 120-140lm/w (optional) |
| Input voltage | AC85-265V/ AC110-130V |
| CCT | 2700-7000K /R/G/B |
| Led type | 2835 smd (SamSung) |
| CRI | >80/90 |
| Beam angle | 130° |
| SDCM | <3 |
| Dimmable | No dimming/DALI ; 0/1-10V & Triac |
| Other | emergency or sensor (per request) |
| IP grade | IP20 |
| Operating Temperature | 20°C ~ +40°C |
| Lifespan | >50,000H(L90,Tc＝55°C) |
| Warranty | 3/5 years |
| Power | Size(mm) |
Factory note
Numbers in the table are copied from the current wellking-led.com product record. Lengths, wattages and IP ratings that are not in that record are not guessed here.
Customization and small trial orders are listed on the about page. Send cut length, CCT, CRI, dimming protocol and destination port with the quote.
