LED linear light

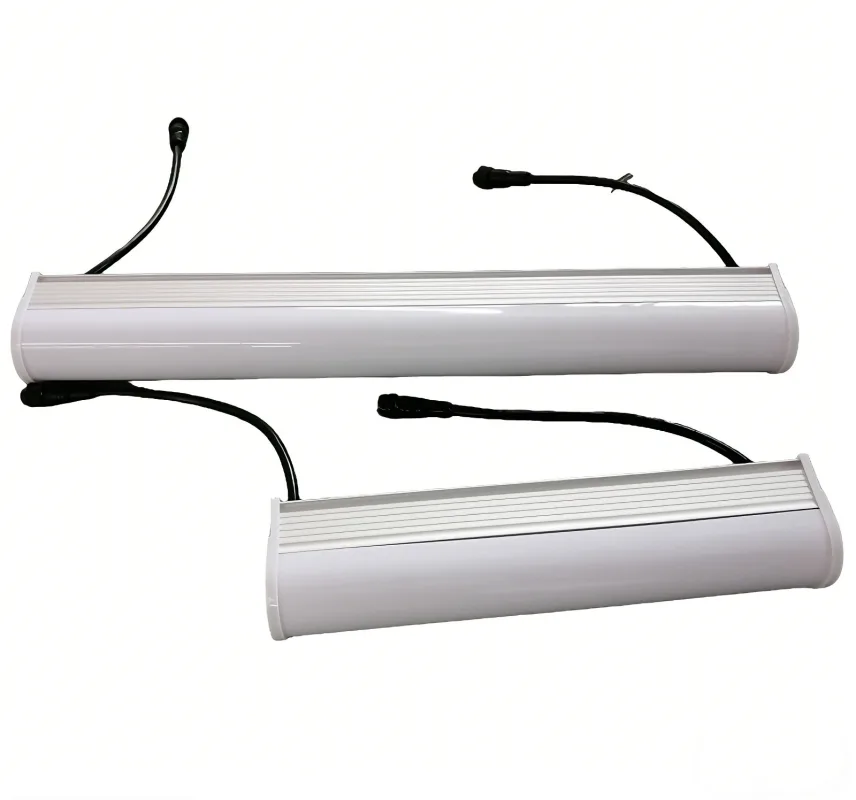

surface mounted LED linear tube light
Tool-Free Surface Mounted LED linear tube light – Compact, lightweight design enables direct installation on ceilings, walls or shelves without recessed grooves; compatible with screws or adhesive mounting brackets for flexible placement.
Offices and retail need continuous linear light that replaces fluorescent tubes without extra drivers.
- Product Features and advantage:
- Tool-Free Surface Mounting
- Uniform Glare-Free Illumination
- Integrated high-transmittance diffuser cover delivers soft, even linear light output, eliminating harsh shadows and glare to protect eyesight.
- Durable & Low-Maintenance Build
- Versatile Dimming Options
Certifications printed on this family of pages include CE, RoHS, FCC, SAA and PSE where the source listing says so. Confirm the file for this exact SKU before you print a spec sheet.
Specifications published on the source page
| Material | Aluminum Housing+PMMA Diffuser |
|---|---|
| Finish | white; black |
| Light efficacy | 110lm/w; 130-150lm/w (optional) |
| Input voltage | DC12V /DC24V |
| CCT | 2700-7000K /R/G/B/RGB |
| Led type | 2835 smd (SamSung) |
| CRI | >80/90 |
| Beam angle | 120° |
| SDCM | <3 |
| Dimmable | No dimming/DALI ; 0/1-10V & Triac |
| Other | emergency or sensor (per request) |
| IP grade | IP20/IP65 |
| Operating Temperature | -20°C ~ +40°C |
| Lifespan | >50,000H(L90,Tc＝55°C) |
| Warranty | 3/5 years |
| Gross Weight/ctn | Pcs/ctn |
Factory note
Numbers in the table are copied from the current wellking-led.com product record. Lengths, wattages and IP ratings that are not in that record are not guessed here.
Customization and small trial orders are listed on the about page. Send cut length, CCT, CRI, dimming protocol and destination port with the quote.
