LED downlight

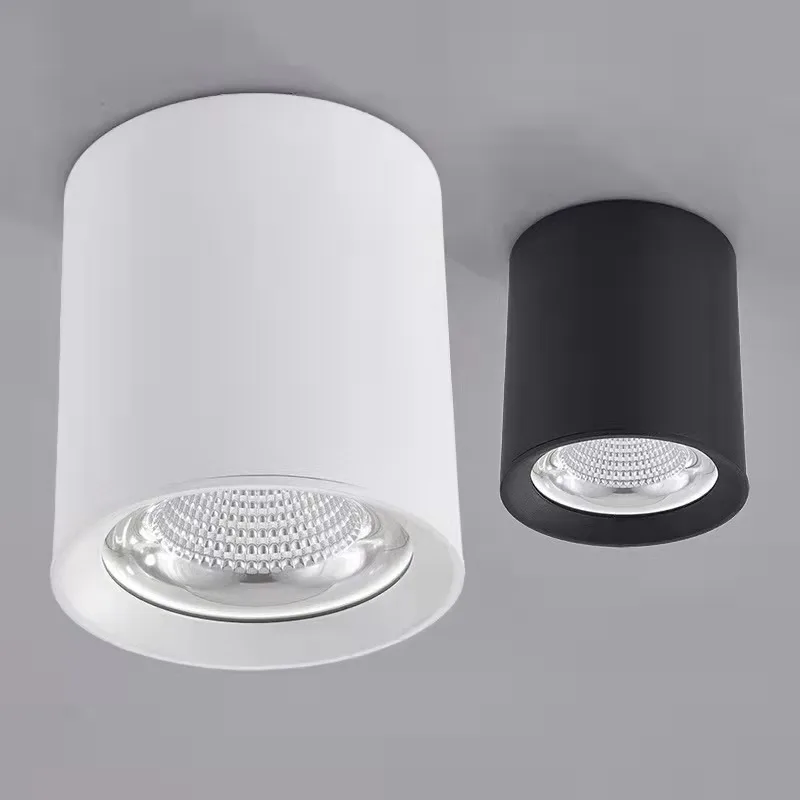

Surface mounted LED COB downlight

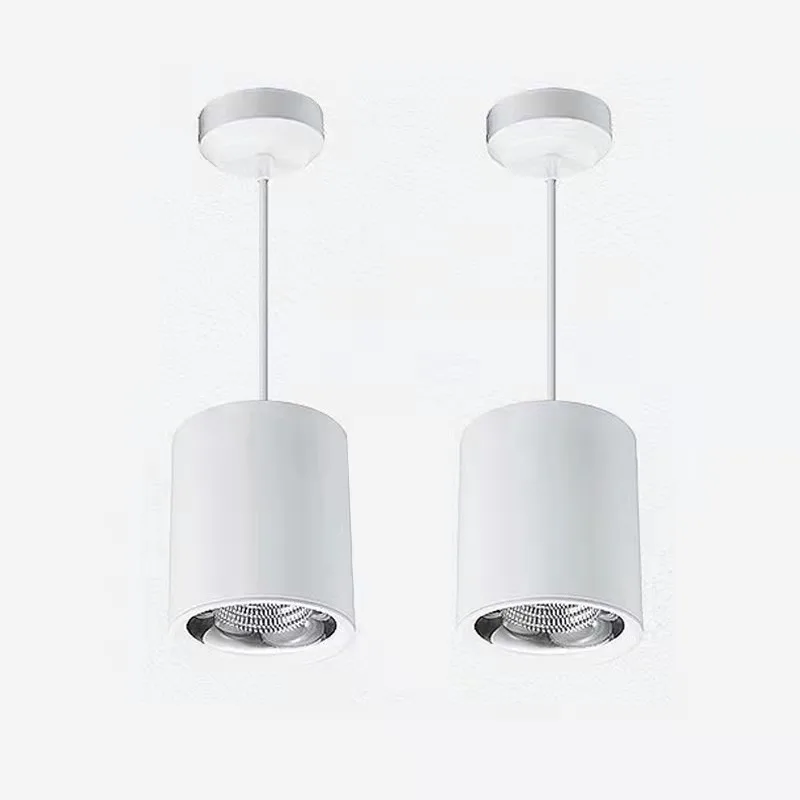

Surface mounted/pendent light. Hole-free surface mounting, easy and quick to install without complex ceiling renovation. Sleek & compact design, fits various interior styles (residential/commercial).
Interior projects need directional, low-glare light that installs into existing ceilings without a full fixture swap.
- surface mounted/pendent light. Hole-free surface mounting, easy and quick to install without complex ceiling renovation.
- Sleek & compact design, fits various interior styles (residential/commercial).
- die-casting aluminum housing, stable performance and extended product life.
- Mercury-free & eco-friendly, no UV/IR radiation, safe for daily use.
- Anti-glare optical design, comfortable lighting without eye strain.
Certifications printed on this family of pages include CE, RoHS, FCC, SAA and PSE where the source listing says so. Confirm the file for this exact SKU before you print a spec sheet.
Specifications published on the source page
| Material | die-casting aluminum |
|---|---|
| Finish | white; black |
| Light efficacy | 95 lm/w |
| Input voltage | AC100-240V |
| Power factor (PF) | >0.9 |
| CCT | 2700K/3000K/4000K/6000K |
| Led type | CREE COB |
| CRI | >80/90 |
| Beam angle | 24°/45° |
| SDCM | <3 |
| Control | Non-dim./ Triac Dim. / DALI dim./ 0-10V dim. |
| Tilting angle | / |
| Rotating angle | / |
| IP grade | IP20/IP65 |
| Operating Temperature | -20°C ~ +40°C |
| Lifespan | >50,000H(L90,Tc＝55°C) |
Factory note
Numbers in the table are copied from the current wellking-led.com product record. Lengths, wattages and IP ratings that are not in that record are not guessed here.
Customization and small trial orders are listed on the about page. Send cut length, CCT, CRI, dimming protocol and destination port with the quote.
