LED downlight

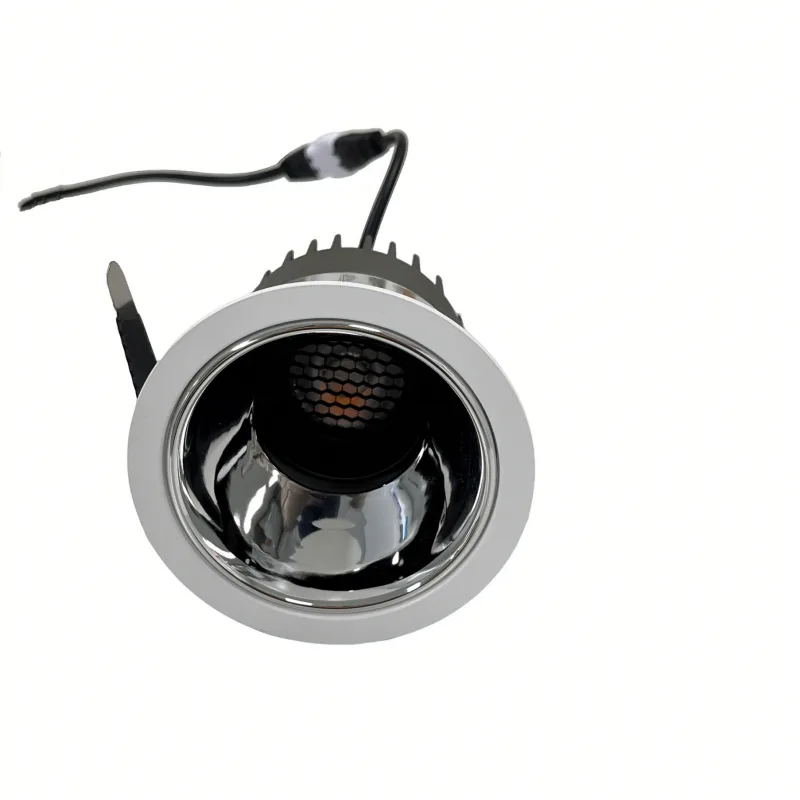

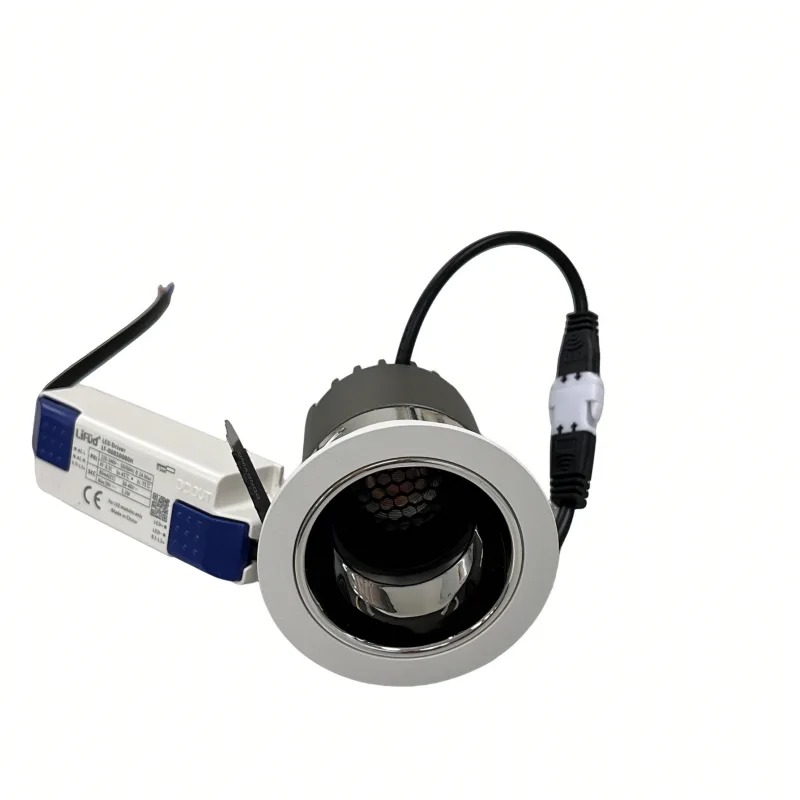

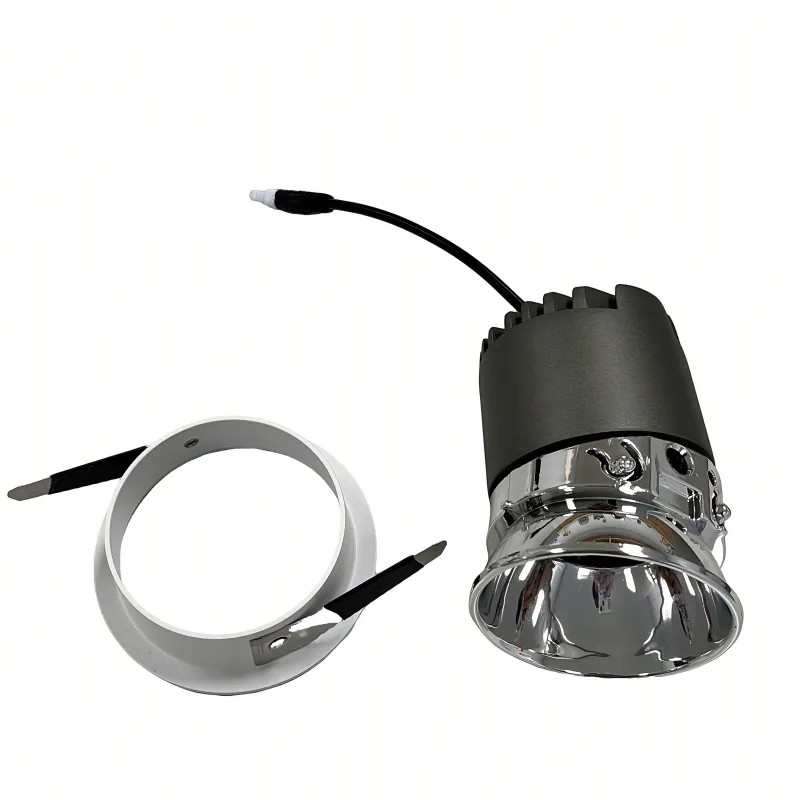

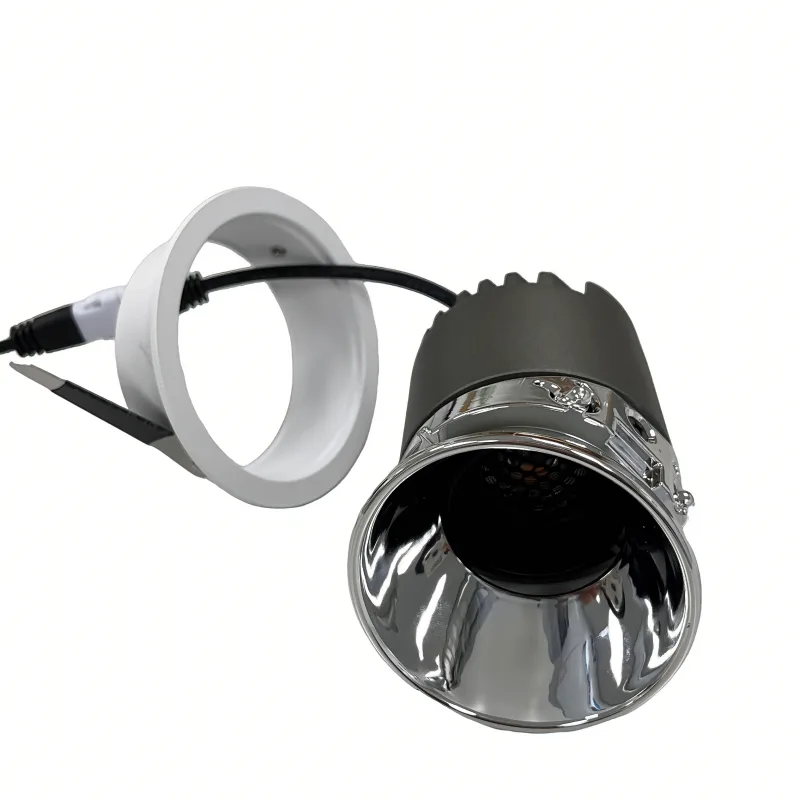

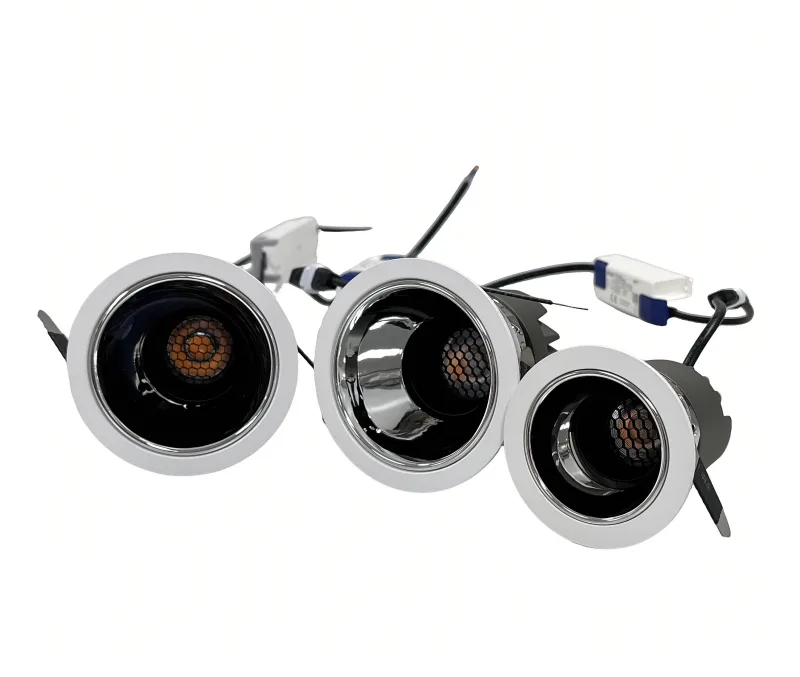

Adjustable and Retrofit LED downlight (adjustable beam)
Retrofit design for easy installation, no need to replace the original fixture. Adjustable lighting angle for flexible beam direction and targeted illumination.
Interior projects need directional, low-glare light that installs into existing ceilings without a full fixture swap.
- Retrofit design for easy installation, no need to replace the original fixture.
- Adjustable lighting angle for flexible beam direction and targeted illumination.
- Energy-saving, low power consumption and high luminous efficiency.
- Long lifespan, reducing maintenance and replacement frequency.
- Flicker-free, soft and even light, comfortable for daily use.
- Eco-friendly, no mercury or hazardous materials.
Certifications printed on this family of pages include CE, RoHS, FCC, SAA and PSE where the source listing says so. Confirm the file for this exact SKU before you print a spec sheet.
Specifications published on the source page
| Material | die-casting aluminum |
|---|---|
| Finish | white; black |
| Light efficacy | 95 lm/w |
| Input voltage | AC100-240V |
| Power factor (PF) | 3-6w (PF 0.6); >7w (PF 0.9) |
| CCT | 2700K/3000K/4000K/6000K |
| Led type | CREE COB |
| CRI | >80/90 |
| Beam angle | 24°/36°/40°/50°/60° |
| SDCM | <3 |
| Control | Non-dim./ Triac Dim. / DALI dim./ 0-10V dim. |
| Tilting angle | 30° |
| Rotating angle | 360° |
| IP grade | IP20 |
| Operating Temperature | 20°C ~ +40°C |
| Lifespan | >50,000H(L90,Tc＝55°C) |
Factory note
Numbers in the table are copied from the current wellking-led.com product record. Lengths, wattages and IP ratings that are not in that record are not guessed here.
Customization and small trial orders are listed on the about page. Send cut length, CCT, CRI, dimming protocol and destination port with the quote.
