Flexible LED strip light

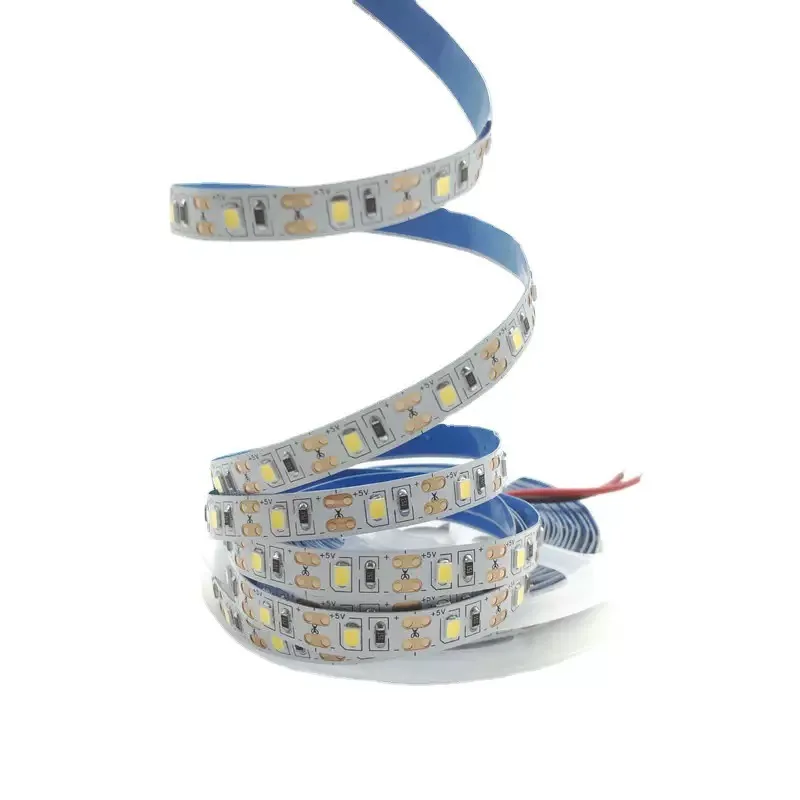

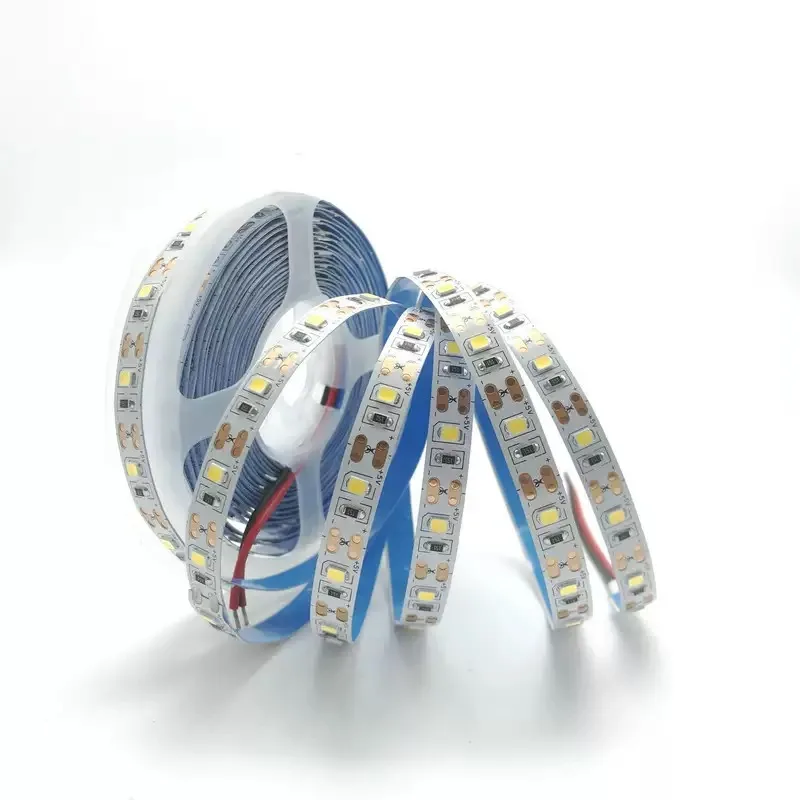

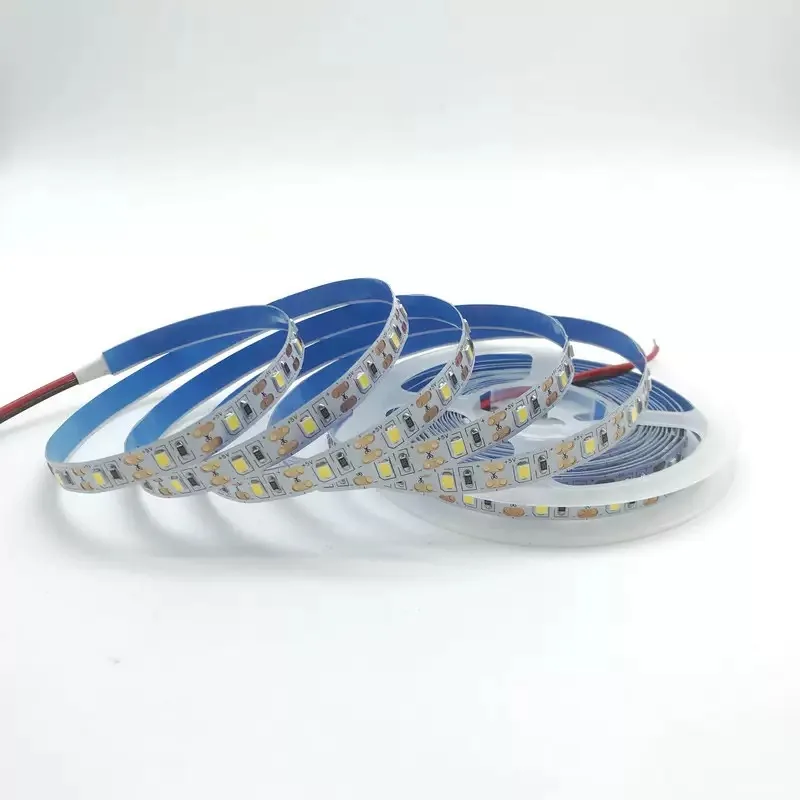

strip light with 3528 smd led
The chip structure is simple and reliable, with low failure rates and wide compatibility with controllers and power supplies.
Cabinets, coves, and display edges need thin, cuttable light that bends around corners.
- The chip structure is simple and reliable, with low failure rates and wide compatibility with controllers and power supplies.
- Flexibility & Customization: Bendable at any angle (up to 180°) for curved surfaces. Cuttable at 5cm/10cm marked intervals without damaging the circuit.
- Color Options: Single-color (white 2200-6500K, red, blue, green, etc.)
- Control Modes: Dimmable (supports PWM dimmers)
- General ambient lighting (living rooms, bedrooms),;
- Decorative lighting for ceilings/walls,;
Certifications printed on this family of pages include CE, RoHS, FCC, SAA and PSE where the source listing says so. Confirm the file for this exact SKU before you print a spec sheet.
Specifications published on the source page
| LED type | 3528 smd |
|---|---|
| Model number | WK-FP3528-30D/60D/120D… |
| PCB size (Wideth) | 8mm / 10mm |
| Input voltage | DC 12V/24V |
| LED qty | 30pcs/ 60pcs/ 120pcs…customizable |
| Power Consumption | 2.4w/ 4.8w/ 9.6w… |
| Color temperature | R/G/B / 2200-6500K |
| CRI (Ra) | > 80/90/95 |
| Beam angle | 120° |
| Lm per each led | 6-7 lm |
| IP grade | IP20/65/67/68 |
Factory note
Numbers in the table are copied from the current wellking-led.com product record. Lengths, wattages and IP ratings that are not in that record are not guessed here.
Customization and small trial orders are listed on the about page. Send cut length, CCT, CRI, dimming protocol and destination port with the quote.
