Flexible LED strip light

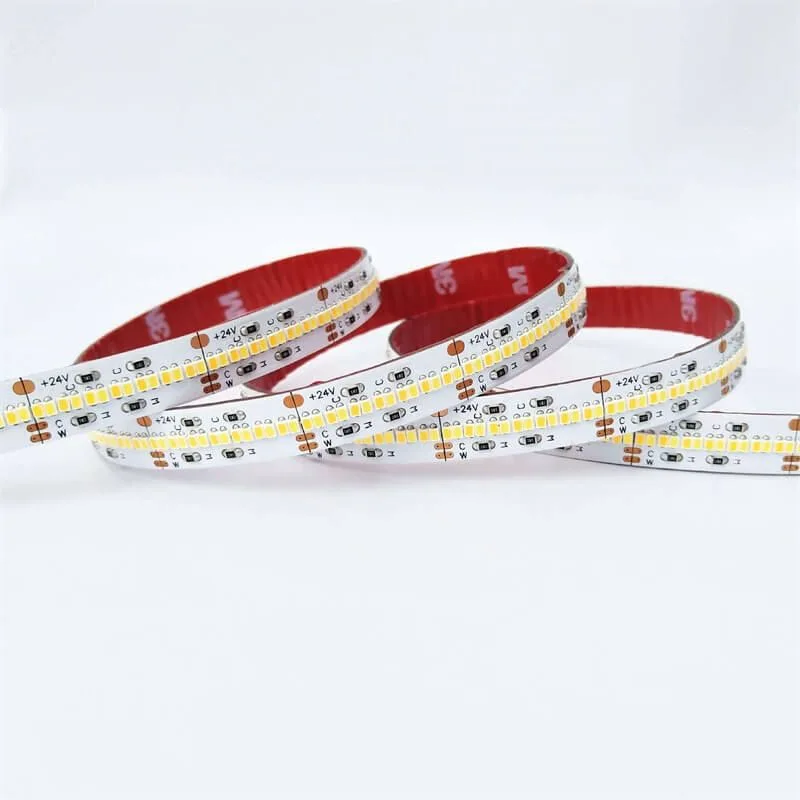

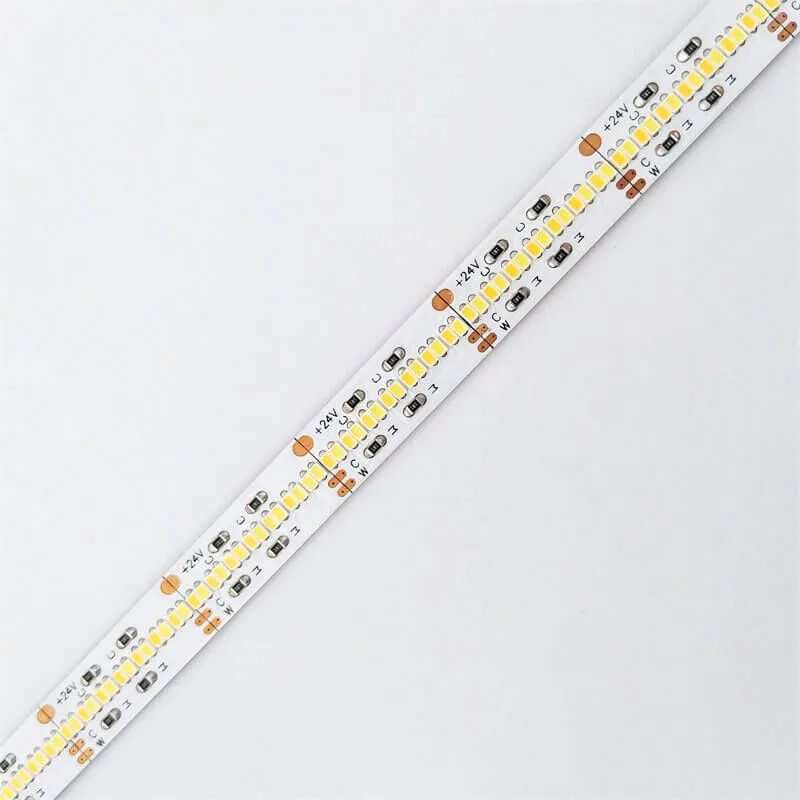

strip light with 2216 smd led
Its ultra-compact chip size (2.2×1.6mm) makes the light strip extremely thin and flexible, allowing it to bend freely around narrow corners, curved surfaces, or small spaces (e.g., gaps in furniture, edge of thin displays).
Cabinets, coves, and display edges need thin, cuttable light that bends around corners.
- Flexibility & Customization: Bendable at any angle (up to 180°) for curved surfaces. Cuttable at 5cm/10cm marked intervals without damaging the circuit.
- Color Options: Single-color (white 2200-6500K, red, blue, green, etc.).
- Control Modes: Dimmable (supports PWM dimmers).
- Ambient lighting for cabinets, drawer lighting, under-counter lighting (low-brightness needs).
- Decorative lighting for small electronic devices, or scenarios requiring hidden installation with strict space constraints.
Certifications printed on this family of pages include CE, RoHS, FCC, SAA and PSE where the source listing says so. Confirm the file for this exact SKU before you print a spec sheet.
Specifications published on the source page
| LED type | 2216 smd |
|---|---|
| Model number | WK-FP2216-60D/120D/180D/240D/300D… |
| PCB size (Wideth) | 5mm/ 8mm / 10mm |
| Input voltage | DC 12V/24V |
| LED qty | 60pcs/ 120pcs/ 180pcs/240pcs/300pcs… |
| Power Consumption(w/m) | 3.8w/9.6 w/ 14.4w/19.2w/21w… |
| Color temperature | 2200-6500K |
| CRI (Ra) | > 80/90/95 |
| Beam angle | 120° |
| Lm per each led | 7-8 lm |
| IP grade | IP20/65/67/68 |
Factory note
Numbers in the table are copied from the current wellking-led.com product record. Lengths, wattages and IP ratings that are not in that record are not guessed here.
Customization and small trial orders are listed on the about page. Send cut length, CCT, CRI, dimming protocol and destination port with the quote.
