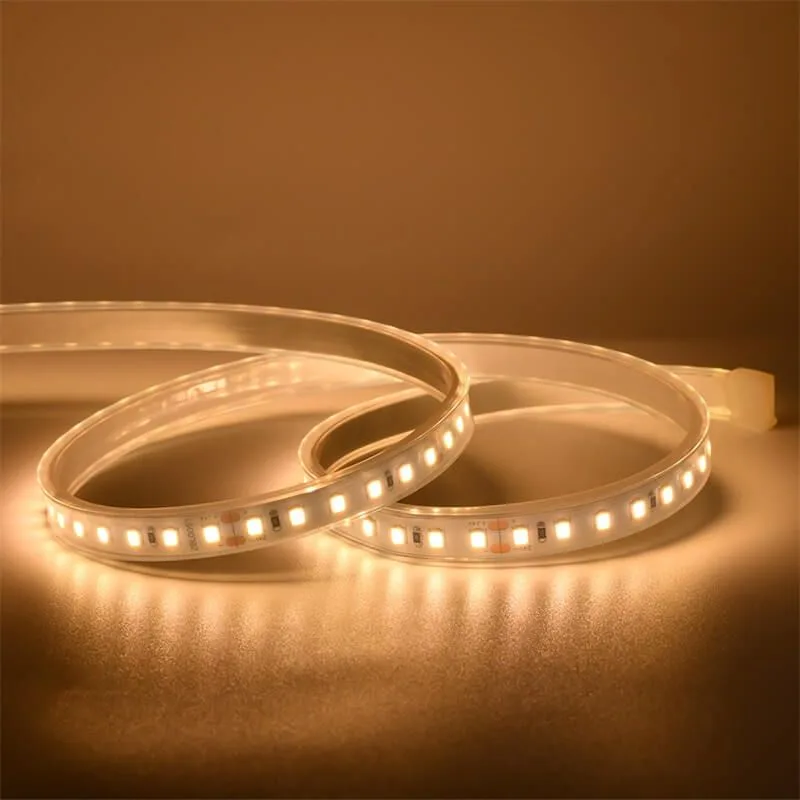

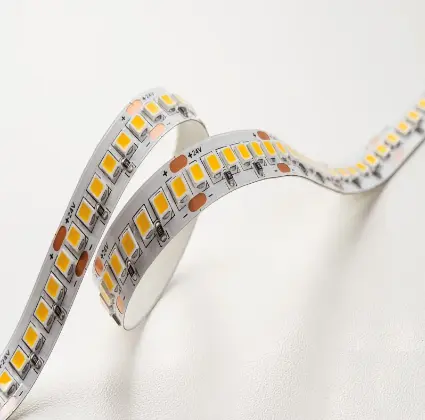

Flexible LED strip light
strip light with 2835 smd led
The most versatile and cost-effective size, solving the problem of low brightness in small-chip models. Low voltage operation, no flicker, no UV radiation, and surface temperature <45℃ (touch-safe).
Cabinets, coves, and display edges need thin, cuttable light that bends around corners.
- The most versatile and cost-effective size, solving the problem of low brightness in small-chip models.
- Flexibility & Customization: Bendable at any angle (up to 180°) for curved surfaces. Cuttable at 5cm/10cm marked intervals without damaging the circuit.
- Color Options: Single-color (white 2200-6500K, red, blue, green, etc.)
- Control Modes: Dimmable (supports PWM dimmers)
- Main lighting for kitchens, bathrooms, and corridors;
- Under-cabinet task lighting;
Certifications printed on this family of pages include CE, RoHS, FCC, SAA and PSE where the source listing says so. Confirm the file for this exact SKU before you print a spec sheet.
Specifications published on the source page
| LED type | 2835 smd |
|---|---|
| Model number | WK-FP2835-60D/120D/168D… |
| PCB size (Wideth) | 8mm / 10mm |
| Input voltage | DC 12V/24V |
| LED qty | 60pcs/ 120pcs/ 168pcs…customizable |
| Power Consumption | 7.2w/ 14.4w/ 17.6w… |
| Color temperature | R/G/B / 2200-6500K |
| CRI (Ra) | > 80/90/95 |
| Beam angle | 120° |
| Lm per each led | 24-26 lm |
| IP grade | IP20/65/67/68 |
Factory note
Numbers in the table are copied from the current wellking-led.com product record. Lengths, wattages and IP ratings that are not in that record are not guessed here.
Customization and small trial orders are listed on the about page. Send cut length, CCT, CRI, dimming protocol and destination port with the quote.
