LED downlight

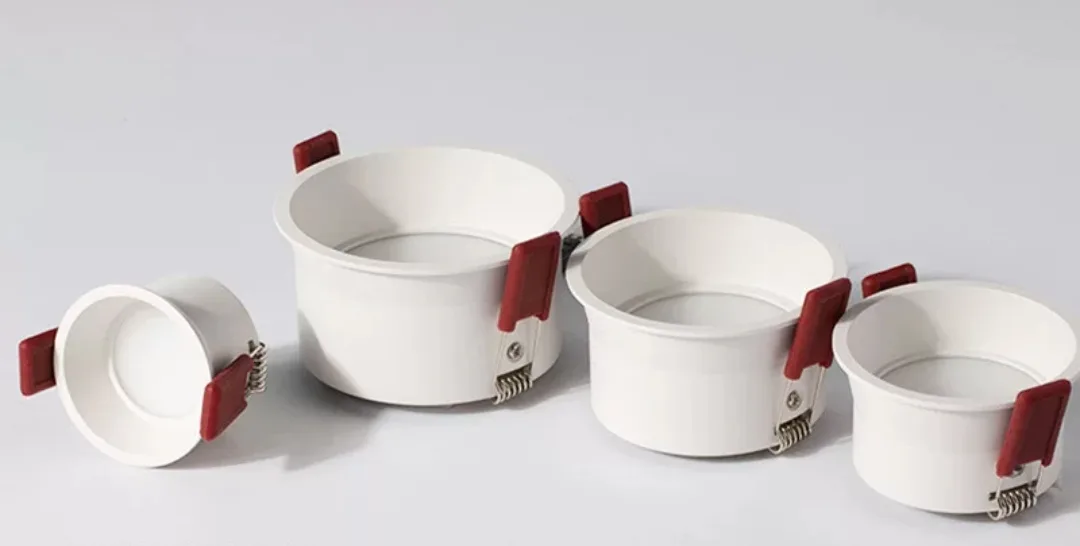

Recessed Anti-glare SMD Downlight
Recessed embedded design, simple and modern appearance. Anti-glare structure with soft light output. High-quality SMD LED chip, stable and reliable.
Interior projects need directional, low-glare light that installs into existing ceilings without a full fixture swap.
- Recessed embedded design, simple and modern appearance.
- Anti-glare structure with soft light output.
- High-quality SMD LED chip, stable and reliable.
- die-casting aluminum housing, stable performance and extended product life.
- Uniform light, no flicker, no dark spots.
Certifications printed on this family of pages include CE, RoHS, FCC, SAA and PSE where the source listing says so. Confirm the file for this exact SKU before you print a spec sheet.
Specifications published on the source page
| Material | die-casting aluminum |
|---|---|
| Finish | white |
| Light efficacy | 95 lm/w |
| Input voltage | AC100-240V |
| Power factor (PF) | >0.9 |
| CCT | 2700K/3000K/4000K/6000K |
| Led type | SamSung 2835smd |
| CRI | >80/90 |
| Beam angle | 120° |
| SDCM | <3 |
| Control | Non-dim./ Triac Dim. / DALI dim./ 0-10V dim. |
| Tilting angle | / |
| Rotating angle | / |
| IP grade | IP20 |
| Operating Temperature | 20°C ~ +40°C |
| Lifespan | >50,000H(L90,Tc＝55°C) |
Factory note
Numbers in the table are copied from the current wellking-led.com product record. Lengths, wattages and IP ratings that are not in that record are not guessed here.
Customization and small trial orders are listed on the about page. Send cut length, CCT, CRI, dimming protocol and destination port with the quote.
