Solar Generator

Solar Generator 1000W Portable Solar Power Kit with AC 220V DC 12V

Integrated 5V/12V/220V/110V Output Inverter/Battery/Controller All-in-One Design Portable & Stand-alone Kit Powered by Solar Energy Built-in Lithium Battery

Request A Quote Email Us

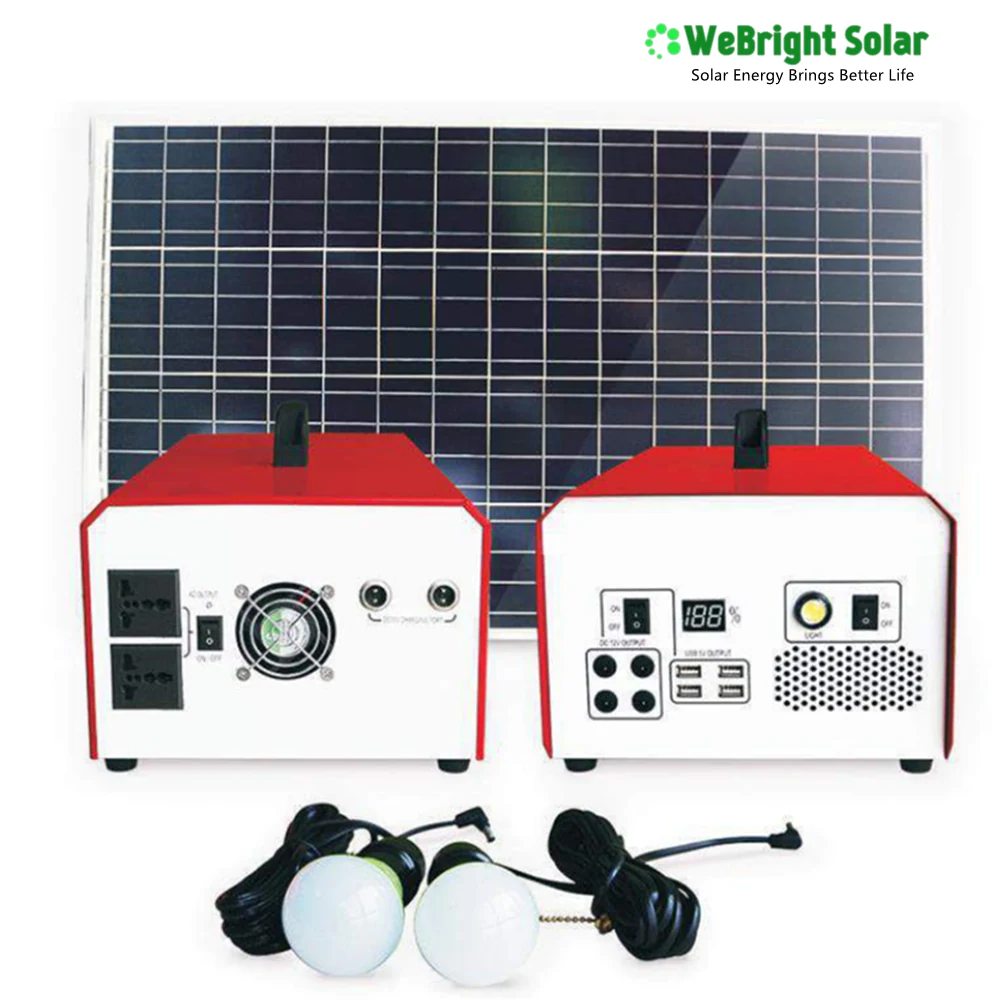

Solar energy kit with two red and white power units, a panel, and two light bulbs.
Diagram of red and yellow portable power stations connected to solar panels, TVs, fan, lights, and phone.A row of yellow electronic devices with digital displays lined up on a testing table in a factory, with lightbulbs above them.Rows of yellow portable solar power units with black handles lined up on workbenches in a factory.
Product Overview

What This Product Is

A portable 1000W solar power kit with integrated lithium battery, inverter and charge controller for off-grid home use. It includes a 100W 30V poly solar panel with 5M cable, a 26V 40Ah lithium battery, and outputs 220V/50Hz or 110V/60Hz AC, 12V/4A DC, 5V/2A USB and 5V/4A USB. The system is designed as a single unit for easy setup and stable operation without grid connection.

Key Benefits

What You Get

  • All-in-one design with inverter battery and charge controller integrated into one unit
  • Delivers 220V/50Hz or 110V/60Hz AC power for standard household appliances
  • Provides 12V/4A DC output for charging devices and 5V/2A USB for small electronics
  • Built-in 26V 40Ah lithium battery offers 148 hours of lighting with two 3W LED lamps
  • Charging time of 10 to 12 hours from solar input at 30-36V/10A max
  • Portable and stand-alone with dimensions 530*305*215mm and weight 6.5KG
Who It Is For

Buyers and Sites

  • Homeowners needing a simple off-grid power solution without complex wiring
  • Solar installers setting up small portable systems for remote or temporary use
  • Importers supplying portable solar kits to markets with unreliable or absent grid
  • Individuals in off-grid areas who want a ready-to-use power unit without assembly
Application Scenarios

Where It Is Installed

  • Emergency power supply during grid outages in homes with no backup
  • Remote cabin or holiday house with no grid access and limited power needs
  • Outdoor events or camping where a quiet, fuel-free power source is needed
  • Backup for small medical devices or communication equipment in off-grid locations
Problems It Solves

What This Removes From the Job

Technical Features

How It Is Built

  • 1000W modified sine wave inverter with 220V/50Hz or 110V/60Hz AC output
  • 26V 40Ah lithium battery with long-life span and 6-month storage capability
  • 100W 30V poly solar panel with 5M cable for solar charging
  • DC input range 30-36V/10A max for PV charging
  • 5V/2A USB and 5V/4A USB outputs for mobile devices
  • 12V/4A DC output for small DC loads
  • IP42 protection grade for dust and splash resistance
Specifications

Technical Data

Values below are taken from the product documentation. Anything not listed is confirmed against your order.

System Power1000W modified sine wave
AC Output220V/50Hz or 110V/60Hz
DC Output12V/4A
USB Output5V/2A and 5V/4A
Solar Panel100W 30V poly with 5M cable
Battery26V 40Ah lithium
Charging Time10-12 hours
Lighting Time148 hours (2 lamps)
LED Lamps2 x 3W with 5M cable each
Input Voltage30-36V/10A max
Dimensions530*305*215mm
Weight6.5KG per power box
Color OptionRed, Yellow
Protection GradeIP42
CertificationsCE, FCC, UN38.3, ROHS
Materials

What It Is Made Of

  • Poly crystalline silicon solar panel with 30V nominal voltage
  • Lithium battery with 26V nominal voltage and 40Ah capacity
  • Modified sine wave inverter with integrated charge controller
  • Copper conductors in 5M solar cable and internal wiring
  • Plastic housing with IP42 rated enclosure for dust and splash protection
Manufacturing and Preparation

Before It Ships

  • Review the load requirements against the 1000W inverter rating and 26V battery voltage
  • Connect the 100W 30V solar panel to the DC input using the 5M cable
  • Ensure the solar panel is placed in direct sunlight with no shading
  • Charge the 26V 40Ah lithium battery via solar input over 10 to 12 hours
  • Use the AC, DC or USB outputs for connected devices after full charge
  • Store the unit in a dry, cool place with 6-month storage capability
Quality Control

Checked Before Packing

Customisation

What Can Be Changed at Order Stage

  • Battery type can be changed to lithium on request
  • AC output frequency set to 50Hz or 60Hz based on regional standard
  • Color option selected as red or yellow at order stage
  • Solar panel cable length adjusted to 5M standard, no longer available
  • LED lamp count and cable length fixed at two 3W lamps with 5M cables
Comparison

How It Compares With the Alternatives

Grid-tie solar systemWorks without grid connection, but requires a battery bank that a grid-tie system does not
Portable generatorNo fuel, no noise, no emissions, but limited runtime compared to fuel-powered units
Separate inverter battery and controllerIntegrated design reduces wiring complexity and compatibility issues
Solar panel aloneProvides stored energy and multiple output types, not just DC power from the panel
Use Guide

Getting It Working on Site

1

Confirm that the total load does not exceed 1000W before connecting appliances

2

Place the solar panel in direct sunlight with no shading for optimal charging

3

Connect the solar panel to the DC input port using the 5M cable

4

Use the 12V/4A DC output for devices that accept 12V DC input

5

Charge the battery via solar for 10 to 12 hours before first use

6

Keep the unit in a dry, ventilated area to prevent overheating

Go Deeper

Related Pages

Related Guides

Related Products

Others in Solar Generator

Portable power station with AC outlets, USB ports, and digital display
Solar Power Station

500W Portable Power Station 1000W with AC 220V DC 12V

Pure Sine Wave Output Lithium Battery 550Wh Built-in Output: 220V/110V Type-C, DC 12V, USB Charged by Solar Pa

View product →
A portable power station with a digital display, accompanied by battery clamps, a multi-cable set, and a white adapter.
Solar Generator

300W Solar Power Bank DC AC Power Station with Lithium Battery

Pure Sine Wave Output Lithium Battery 330Wh Built-in Output: 220V/110V Type-C, USB Charged by Solar Panel & AC

View product →
Portable power station with silver top and black front panel showing AC and DC ports, with white adapter and cable
Solar Generator

Solar Power Station 120W AC Power Bank with Lithim Battery

Pure Sine Wave Output Lithium Battery 115Wh Built-in Output: 110V/220V, Type-c, USB Port Charged by Solar or A

View product →
A solar panel kit including a red power unit, two LED light bulbs, and cables.
Solar Generator

500W Solar Generator Complete Solar Panel Kit with DC 12V AC 110V 220V

Integrated 5V/12V/220V/110V Output Inverter/Lithium Battery/Solar Controller All-in-One Design Portable Power

View product →
FAQ

Questions About the Solar Generator 1000W Portable Solar Power Kit with AC 220V DC 12V

What is the output voltage and frequency?

The AC output is 220V/50Hz or 110V/60Hz, selectable based on regional standard.

Does the kit include the solar panel?

Yes. The kit includes a 100W 30V poly solar panel with a 5M cable.

Can I use this for a refrigerator?

It can run small refrigerators under 1000W, but check the starting surge current before connecting.

How long does it take to charge the battery?

It takes 10 to 12 hours from solar input at 30-36V/10A max.

What is the battery life span?

The lithium battery has a long-life span, and the system has a 6-month storage capability.

Is the system waterproof?

It has an IP42 protection grade, which resists dust and splashes but is not waterproof.

Can I connect more solar panels?

The system is designed for one 100W 30V panel only; additional panels are not supported.
