Solar Generator

500W Solar Generator Complete Solar Panel Kit with DC 12V AC 110V 220V

Name: 500W Solar Generator Complete Solar Panel Kit with DC 12V AC 110V 220V
Brand: WeBright Solar

Integrated 5V/12V/220V/110V Output Inverter/Lithium Battery/Solar Controller All-in-One Design Portable Power Generator Solar Powered Kit To Run LED Light, Fan, TV, Computer

Request A Quote Email Us

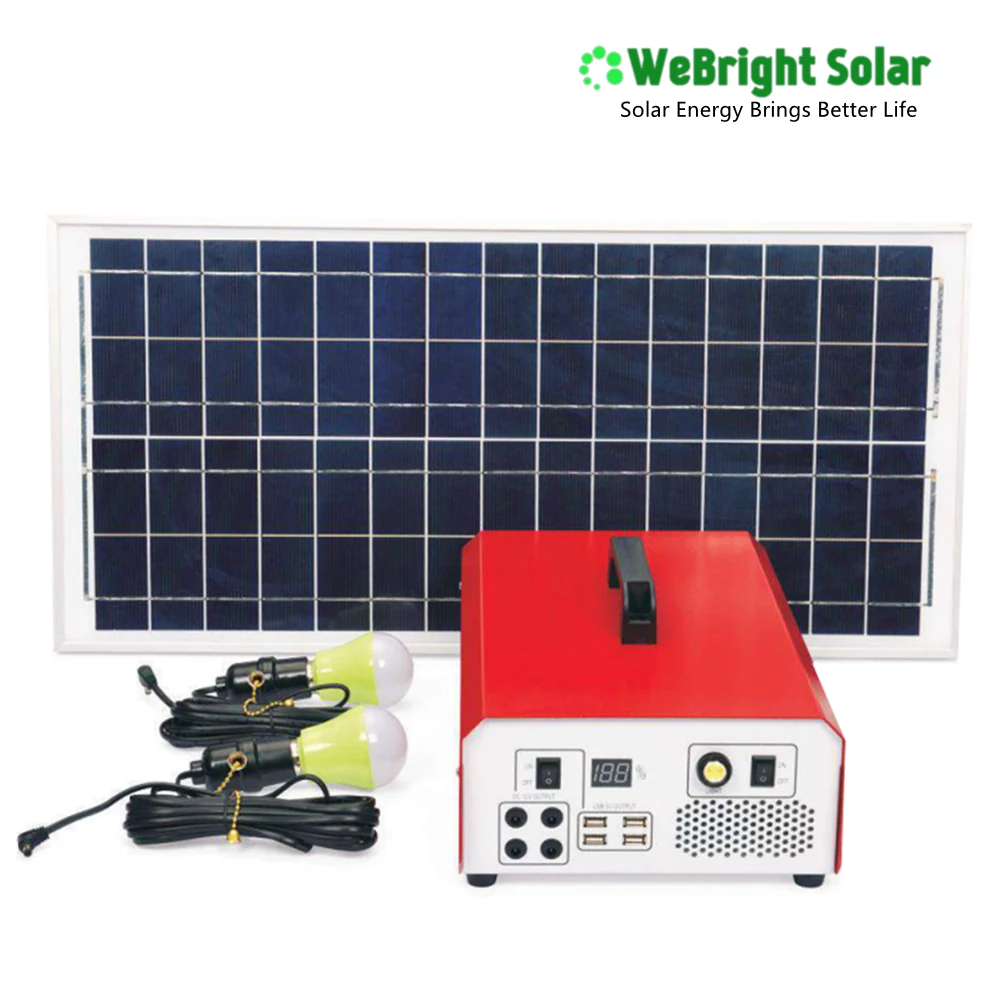

A solar panel kit including a red power unit, two LED light bulbs, and cables.

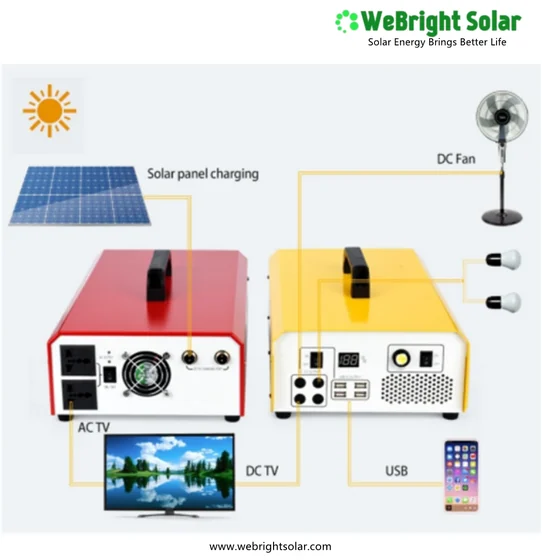

Diagram of red and yellow portable power stations connected to solar panels, TVs, fan, lights, and phone.

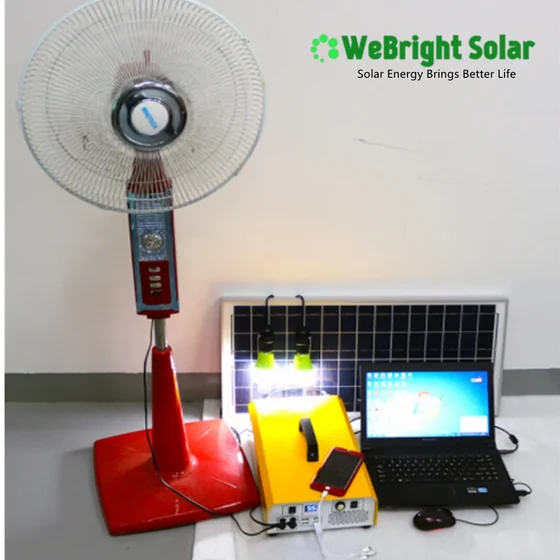

A red pedestal fan, solar panel, yellow power unit, laptop, and lights arranged on a floor.

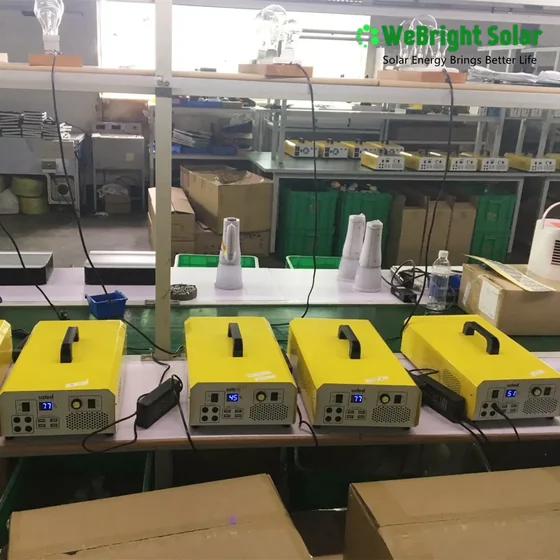

A row of yellow electronic devices with digital displays lined up on a testing table in a factory, with lightbulbs above them.

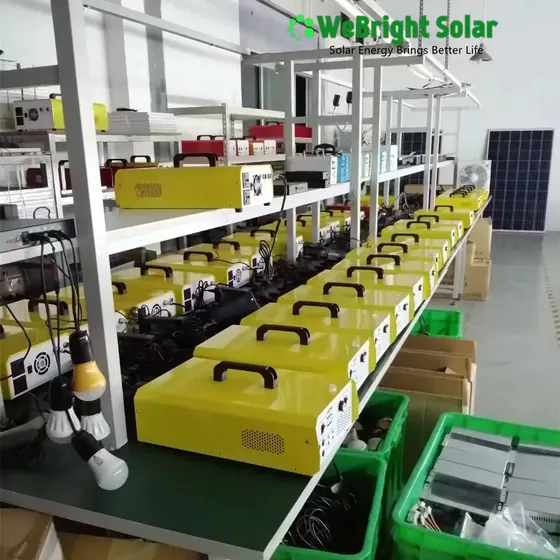

Rows of yellow portable solar power units with black handles lined up on workbenches in a factory.

Product Overview

What This Product Is

A complete 500W solar generator kit with integrated lithium battery, inverter and charge controller in one unit. It includes a 60W 18V poly solar panel with 5M cable, a 12V 40Ah lithium battery, a 500W modified sine wave inverter, and outputs DC 5V/12V and AC 110V/220V. The system is designed for off-grid power supply with plug-and-play setup, suitable for running small appliances and lighting without grid connection.

Key Benefits

What You Get

All-in-one design with inverter battery and charge controller integrated into a single unit
Runs LED lights fans TVs and laptops with AC 110V/220V output and DC 5V/12V ports
500W modified sine wave inverter supports motor and compressor loads

60W 18V poly solar panel with 5M cable for direct outdoor installation
12V 40Ah lithium battery provides 74 hours of lighting with two 3W LED lamps
Includes 5V/4A USB output and a 4-in-1 charging kit for multiple devices

Who It Is For

Buyers and Sites

Homeowners in off-grid or unstable-grid areas needing a simple power solution
Solar installers supplying complete kits to end users without technical expertise
Families or individuals needing portable power for lighting and small electronics
Small businesses or vendors operating in remote markets without reliable electricity

Application Scenarios

Where It Is Installed

Power supply for small homes or cabins with no grid connection
Backup power during grid outages for essential lighting and small appliances
Outdoor use at campsites or construction sites where grid access is unavailable
Emergency power for communication devices and medical equipment in remote areas
Use in tropical or coastal regions where salt and humidity are present

Problems It Solves

What This Removes From the Job

No need to source and match separate solar panel inverter battery and controller
Avoids compatibility issues between components with different voltage or current ratings
Eliminates missing or mismatched connectors and cables during on-site installation
Reduces commissioning time by providing a pre-integrated and tested unit
Solves the risk of incorrect battery charging due to unbalanced charge controller settings

Technical Features

How It Is Built

Integrated 500W modified sine wave inverter with AC 110V/60Hz or 220V/50Hz output
12V 40Ah lithium battery with long life span and 6-month storage capability
60W 18V poly solar panel with 5M cable for direct connection to the system
DC input range 15-18V/5A Max for solar charging from the panel

DC outputs: 5V/2A USB, 12V/4A for devices like fans and small pumps
AC output: 220V/50Hz or 110V/60Hz selectable at the unit
Includes two 3W LED lamps with 5M cables for direct lighting use

Specifications

Technical Data

Values below are taken from the product documentation. Anything not listed is confirmed against your order.

System Power	500W modified sine wave inverter
Solar Panel	60W 18V poly, 5M cable
Battery	12V 40Ah lithium
AC Output	110V/60Hz or 220V/50Hz
DC Output	5V/2A USB, 12V/4A
DC Input	15-18V/5A Max
Charging Time	10-12 hours
Lighting Time	74 hours (2 lamps)
LED Lamps	2 x 3W with 5M cable
USB Output	5V/4A
Protection Grade	IP42
Certifications	CE, FCC, UN38.3, ROHS
Dimensions	530305215mm
Weight	6.5KG per power box
Color Option	Red, Yellow

Materials

What It Is Made Of

Polycrystalline silicon solar cells in the 60W panel
Lithium iron phosphate (LiFePO4) battery chemistry for long life
ABS plastic housing with IP42 rated enclosure
Copper conductors in 5M cable and internal wiring
Standard black or red cable sheathing for PV connection

Manufacturing and Preparation

Before It Ships

Solar panel connected directly to the system via 5M cable
Battery charged using solar input or external AC adapter
Inverter tested for AC output and DC load handling before final packing
All components assembled and function tested in the factory
Unit packed in a protective box with internal foam for export

Quality Control

Checked Before Packing

Inverter output verified at 110V/60Hz and 220V/50Hz before packing
Battery voltage and capacity checked against 12V 40Ah specification
Solar panel output measured at 60W under standard test conditions
Cable length and connector type confirmed against the configuration
IP42 protection tested by dust and water ingress simulation

Customisation

What Can Be Changed at Order Stage

Battery capacity can be changed to other sizes upon request
AC output frequency and voltage can be set to 110V/60Hz or 220V/50Hz
Color option available in red or yellow for the power box

Additional DC or USB ports can be added in custom configurations
Cable length adjusted from 5M to longer if needed for site installation

Comparison

How It Compares With the Alternatives

Separate solar panel inverter and battery	No need to match voltages or wiring schemes; system is ready to use on arrival
Grid-tie solar system	Operates without grid connection, but requires battery storage unlike grid-tie systems
Diesel generator	No fuel, noise or emissions, but limited to 500W output and battery-based storage
Basic solar lantern	Supports multiple devices and AC power, not just lighting
