DC Fan

Rechargeable Fan DC AC Solar Fan Kit with Lithium

Name: Rechargeable Fan DC AC Solar Fan Kit with Lithium
Brand: WeBright Solar

Complete Fan Kit Rechargeable Fan with Battery With Solar Panel With 6V DC Outlet, USB port Solar Charging / AC Charging

Request A Quote Email Us

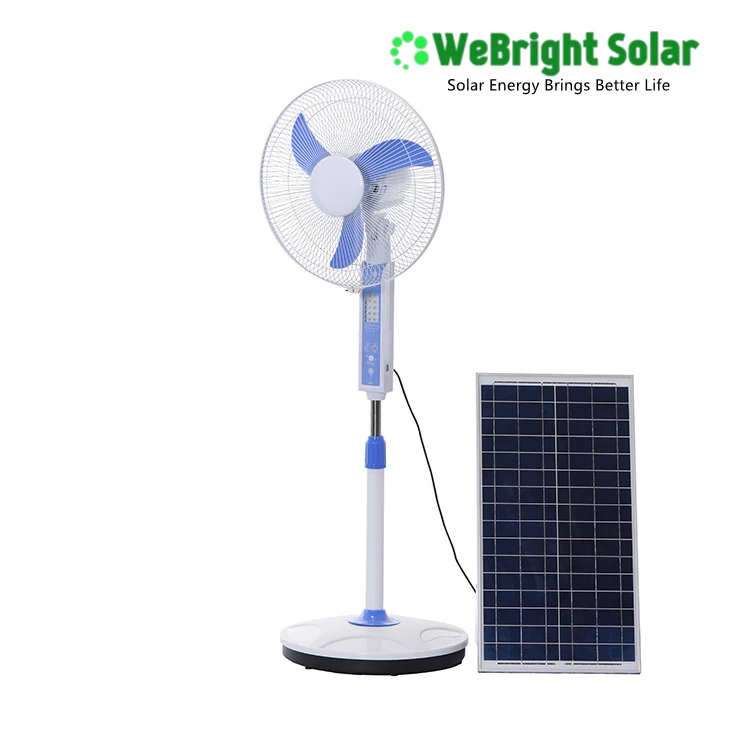

White and blue pedestal fan connected to a small solar panel against a white background

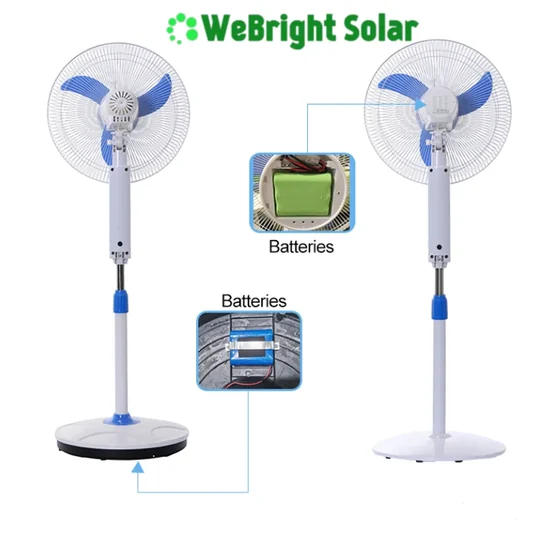

Product diagram showing two views of a pedestal fan with inset images of battery components and text labels.

Product Overview

What This Product Is

A 16-inch rechargeable standing fan kit with built-in lithium battery, designed for use in remote or off-grid areas. It operates on 12V DC and can be charged via solar panel or AC adapter. The kit includes a 12V DC brushless motor, 15 LED lights, 3 speed settings, oscillation, and USB charging ports. It is suitable for personal cooling and basic lighting where grid power is unavailable.

Key Benefits

What You Get

Runs on 12V DC with lithium battery for off-grid use without grid connection
Charged via solar panel or AC adapter, flexible power input options
Built-in 4400mAh/11.1V lithium battery provides 5.5 to 13.5 hours of discharge time

3 speed settings and oscillation for improved air circulation
Includes 15 LED lights for ambient lighting during low light
USB input and output ports for charging mobile devices

Who It Is For

Buyers and Sites

Solar installers supplying off-grid cooling and lighting solutions
Wholesalers distributing DC home appliances to unstable-grid markets
End users in remote villages or rural households seeking battery-powered cooling
Campers, outdoor workers, or temporary housing occupants

Application Scenarios

Where It Is Installed

Remote homes or cabins without access to stable electricity
Rural areas with frequent power outages and no backup generator
Outdoor work sites or temporary shelters needing portable cooling
Emergency use during power failures or disaster recovery
Solar-powered living spaces with limited electrical infrastructure

Problems It Solves

What This Removes From the Job

Fan and battery bought separately that do not match voltage or charging requirements
No built-in battery to run the fan after sunset or during solar downtime
Missing solar charge controller or USB ports for device charging
Fan stops working due to battery over-discharge without protection
No lighting option when the fan is used at night

Technical Features

How It Is Built

12V DC brushless motor with 11W rated power and max rpm of 1300±50
Lithium battery with capacity 4400mAh/11.1V (48.84W)
3 speed control settings with oscillation function
15 LED lights integrated into the fan head for lighting

AC/DC adaptor input 100-240V, output 15V 2.5A
Micro USB input 5V 2A, Micro USB output 5V 2A
Charging time 4.5 to 5 hours from AC or solar

Specifications

Technical Data

Values below are taken from the product documentation. Anything not listed is confirmed against your order.

Model No.	WS-Fan421
Motor	12V DC Brushless Motor
Rated Power	11W
Rated Voltage	12V DC
AC /DC Adaptor Input	100-240V
AC /DC Adaptor Output	15V, 2.5A
Micro USB Input	5V, 2A
Micro USB Output	5V, 2A
Battery	Lithium Battery
Battery Capacity	4400mAh/11.1V (48.84W)
Size	16 Inch
Blade	3 blades or 5 blades
Blade Size	14 Inch
Speed Control	3 Speeds
Max rpm	1300±50
Height	1.1-1.3M
Adaptor cord length	2M
Charging Time	4.5-5 hours
Discharge Time	5.5/8/13.5 hours
LED lights	15 LED lights
Oscillation	Yes
Battery Low Quantity Protection	Yes
Materials	PP/ABS/Iron/Copper
Motor warranty	2 years at leaset

Configuration

What Is in the Shipment

The packing list follows this table item by item.

Model No.	WS-Fan421
Motor	12V DC Brushless Motor
Rated Power	11W
Rated Voltage	12V DC
AC /DC Adaptor Input	100-240V
AC /DC Adaptor Output	15V,2.5A
Micro USB Input	5V, 2A
Micro USB Output	5V, 2A
Battery	Lithium Battery
Battery Capacity	4400mAh/11.1V(48.84w)
Size	16 Inch
Blade	3 blades or 5 blades
Blade Size	14 Inch
Speed Control	3 Speeds
Max rpm	1300±50
Height	1.1-1.3M
Adaptor cord length	2M
Charging Time	4.5-5 hours
Discharge Time	5.5/8/13.5hours
LED lights	15 LED lights
Oscillation	Yes
Battery Low Quantity Protection	Yes
Materials	PP/ABS/Iron/Copper
Motor warranty	2 years at leaset

Materials

What It Is Made Of

PP/ABS plastic for housing and structural parts
Iron and copper used in motor and electrical components
Lithium battery with 4400mAh/11.1V capacity
Brushless DC motor for efficient and quiet operation

Manufacturing and Preparation

Before It Ships

Verify the 12V DC system voltage matches the fan and battery
Assemble the fan unit with the lithium battery installed
Test the motor, speed control, oscillation, and LED lights
Confirm USB input and output functionality
Check battery charging via AC adapter and solar input
Package the complete kit with all accessories for export

Quality Control

Checked Before Packing

Motor tested under load to confirm 11W power and 1300±50 rpm
Battery capacity verified at 4400mAh/11.1V before packing
USB ports tested for input and output at 5V 2A
Oscillation function checked for full range of motion
LED lights tested for brightness and uniformity

Customisation

What Can Be Changed at Order Stage

USB output, remote control, and timer functions can be added
Blade count changed between 3 and 5 blades
Battery type changed to other lithium or lead-acid on request

Height adjustment range modified for specific use cases
LED light count or brightness adjusted for different lighting needs

Comparison

How It Compares With the Alternatives

Fan with no battery	Can run only when connected to power source; no portable or off-grid use
Fan with lead-acid battery	Heavier and shorter lifespan; lithium offers lighter weight and longer cycle life
Fan with solar panel only	No stored energy; stops working at night or in low light
AC-only fan	Cannot operate without grid power; not suitable for remote or off-grid locations
