250W Mono Solar Panel for Home Solar System

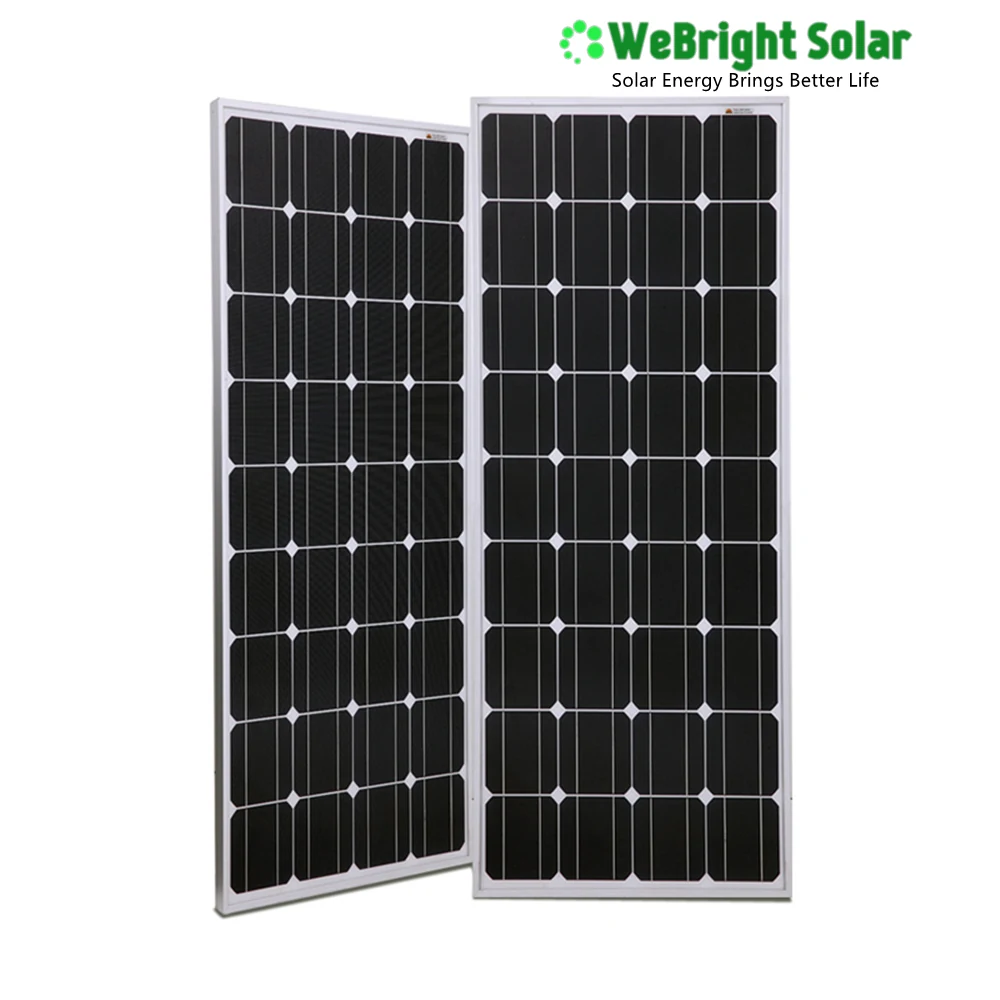

Name: 250W Mono Solar Panel for Home Solar System
Brand: WeBright Solar

25 year transferrable power output warranty: 10 years / 90%, 25 years / 80% Rated Power: 250W Max Volt: 30.85V Max Current: 8.11A

Request A Quote Email Us

Rooftop solar panel installation on a large white building with workers visible on the roof.

Solar panels resting on wheeled racks inside a brightly lit manufacturing facility.

Product Overview

What This Product Is

A 250W monocrystalline solar panel designed for residential off-grid and hybrid solar systems. It has 60 solar cells, a maximum power voltage of 30.85V, and a maximum system voltage of 1000V. The panel is built for long-term outdoor use with a 25 year transferrable power output warranty and a power tolerance of 0 to +5%. It is suitable for rooftop and ground mounting in residential applications.

Key Benefits

What You Get

250W rated power with 0 to +5% power tolerance for predictable energy yield
Monocrystalline cells with 18.33% efficiency for high energy density
Open circuit voltage of 36.92V allows for string configuration in cold climates

Maximum system voltage of 1000V supports larger array designs
25 year transferrable power output warranty: 10 years at 90%, 25 years at 80%

Who It Is For

Buyers and Sites

Solar installers building residential solar systems with matched components
Homeowners installing a solar system for self-consumption or backup power
EPC contractors sourcing panels for small-scale residential projects
Importers supplying solar panels to markets with weak or unstable grid access

Application Scenarios

Where It Is Installed

Residential rooftop installation in areas with moderate to high solar irradiance
Off-grid home power system where consistent energy generation is required
Hybrid solar system with battery backup for homes with intermittent grid supply
Ground-mounted solar array for homes with limited roof space or shading issues

Problems It Solves

What This Removes From the Job

Panels with mismatched voltage or power output that reduce system efficiency
Lack of long-term warranty on panel performance leading to financial risk
Inconsistent cell efficiency across batches causing uneven power generation
Insufficient system voltage rating that limits string length and design flexibility

Technical Features

How It Is Built

Monocrystalline silicon cells with 60 cells per panel
Peak power output of 250W at standard test conditions
Open circuit voltage (Voc) of 36.92V suitable for cold climate operation
Short circuit current (Isc) of 8.45A for safe and efficient current handling

Maximum system voltage of 1000V for flexible string design and larger arrays

Specifications

Technical Data

Values below are taken from the product documentation. Anything not listed is confirmed against your order.

Peak Power	250W
Cell Efficiency	18.33%
Maximum Power Voltage (Vmp)	30.85V
Maximum Power Current (Imp)	8.11A
Open Circuit Voltage (Voc)	36.92V
Short Circuit Current (Isc)	8.45A
Power Tolerance	0~+5%
Maximum System Voltage	1000V
Dimensions	165099050mm
Solar Cells	60
Warranty	25 years transferrable at 80% output

Configuration

What Is in the Shipment

The packing list follows this table item by item.

Model Type	WE250W-M
Peak Power	250W
Cell Efficiency	18.33%
Maximun Power Voltage(Vmp)	30.85V
Maximun Powe Current(Imp)	8.11A
Open Circuit Voltage(Voc)	36.92V
Short Circuit Current(Isc)	8.45A
Power Tolerance	0~+5%
Maximun System Voltage	1000V
Dimensions	165099050mm
Solar Cells	60

Materials

What It Is Made Of

Monocrystalline silicon cells with high purity and uniformity
Tempered glass front sheet with anti-reflective coating
Aluminium frame with corrosion-resistant anodised finish
Polyethylene backsheet with UV and moisture resistance
Soldered interconnects with low resistance and high durability

Manufacturing and Preparation

Before It Ships

Cell selection based on efficiency and power output consistency
Panel assembly using automated soldering and lamination
Electrical testing at module level for power output and insulation resistance
Final visual inspection and label application before packing
Packaging in protective cardboard boxes for safe shipping

Quality Control

Checked Before Packing

Power output verified against the 250W rating at standard test conditions
Voltage and current values checked against the specified Vmp and Imp
Insulation resistance tested to ensure safety under wet conditions
Visual inspection for cracks, delamination, or frame damage
Label accuracy confirmed against the model type and serial number

Customisation

What Can Be Changed at Order Stage

Available in black or blue frame and glass options
Can be integrated into pre-configured solar kits with inverters and batteries
Mounting brackets and rails available for roof or ground installation

Custom packaging options for bulk export shipments

Comparison

How It Compares With the Alternatives

Polycrystalline panel	Higher efficiency and better performance in low light, but slightly more expensive
300W panel	Lower power output but more suitable for smaller systems or limited roof space
Thin film panel	Lower efficiency and higher degradation rate, but lighter and flexible
Grid-tie panel	Same power output but designed for higher system voltage and different safety standards
