ESS

10kwh Power Wall LiFePO4 Battery Pack for Energy Storage System

Nominal Volt: 51.2V Nominal Capacity: 200Ah Energy Storage: 10kWh With MBS Maximum Batteries in Series * 15 Recommended Charge Current: 20A Recommended Charge Voltage:56.8-57.6V

Request A Quote Email Us

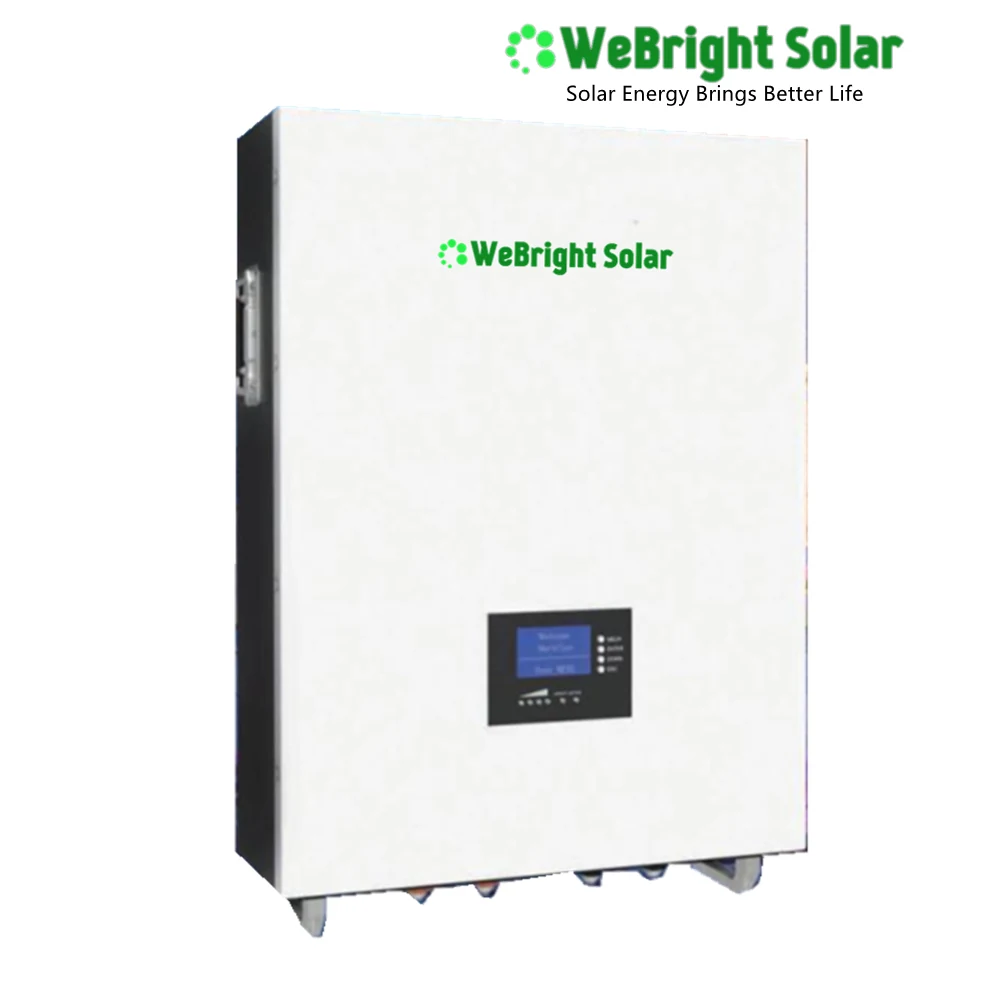

White WeBright Solar inverter unit with blue digital display and side handles
Product Overview

What This Product Is

A 10KWH wall-mounted LiFePO4 battery pack designed for home energy storage systems. It features a nominal voltage of 51.2V and a nominal capacity of 200Ah, with an energy storage capacity of 10240Wh. The pack includes an integrated Battery Management System (BMS) for protection and monitoring, supports up to 3 parallel units, and is suitable for solar energy storage, backup power, and off-grid applications. It is built for long life, low maintenance, and safe operation in high ambient temperatures.

Key Benefits

What You Get

  • 10KWH energy storage capacity with 51.2V nominal voltage for stable home energy supply
  • 4000 cycles at 80% depth of discharge, reducing long-term ownership cost
  • Integrated BMS with circuit protection against overcharge, over-discharge, short circuit and temperature abuse
  • Extremely low self-discharge rate allows safe storage up to 6 months without recharging
  • Recharges quickly with over 96% charge/discharge efficiency, reducing downtime
  • Operates safely in ambient temperatures up to +60°C, suitable for hot climates
Who It Is For

Buyers and Sites

  • Solar installers integrating battery storage into residential solar systems
  • EPC contractors specifying battery packs for off-grid or hybrid projects
  • Homeowners upgrading to solar with battery backup for uninterrupted power
  • Importers and wholesalers supplying energy storage components to unstable-grid markets
  • Facility managers needing low-maintenance, long-life battery solutions for remote sites
Application Scenarios

Where It Is Installed

  • Residential solar energy storage where grid supply is unreliable or absent
  • Backup power for homes during extended outages without a diesel generator
  • Off-grid homes requiring a stable, long-life battery bank for daily energy use
  • Telecom and communication sites needing reliable, maintenance-free power storage
  • Commercial buildings with solar systems that require energy shifting and load leveling
Problems It Solves

What This Removes From the Job

Technical Features

How It Is Built

  • Nominal voltage 51.2Vdc, nominal capacity 200Ah, energy 10240Wh
  • Battery Management System (BMS) with active monitoring and protection
  • Supports up to 3 parallel packs for scalable energy storage
  • Maximum continuous discharge current 100A, peak discharge current 110A (3s)
  • Recommended charge current 20A, maximum charge current 100A
  • Recommended charge voltage 57.6V, BMS charge cut-off voltage <58.4V (3.65V/Cell)
  • BMS discharge cut-off voltage >32.0V (2.0V/Cell), reconnect voltage >40.0V (2.5V/Cell)
Specifications

Technical Data

Values below are taken from the product documentation. Anything not listed is confirmed against your order.

Nominal Voltage51.2V
Nominal Capacity200Ah
Energy Storage10240Wh
Cycle Life4000 cycles @80% DoD
BMSIntegrated Battery Management System
Parallel SupportUp to 3 packs
Recommended Charge Current20A
Maximum Charge Current100A
Recommended Charge Voltage57.6V
BMS Charge Cut-Off Voltage<58.4V (3.65V/Cell)
Reconnect Voltage>57.6V (3.6V/Cell)
Balancing Voltage<57.6V (3.6V/Cell)
Maximum Batteries in Series15
Maximum Continuous Discharge Current100A
Peak Discharge Current110A (3s)
BMS Discharge Cut-Off Current150A (300ms)
Balancing Open Voltage55.2V (3.45V/Cell)
Recommended Low Voltage Disconnect44V (2.75V/Cell)
BMS Discharge Cut-Off Voltage>32.0V (2.0V/Cell)
Reconnect Voltage>40.0V (2.5V/Cell)
Efficiency>96%
Resistance≤45mΩ @50% SOC
Ambient Temperature RangeUp to +60°C
Self Discharge RateExtremely low, safe for 6 months storage
Configuration

What Is in the Shipment

The packing list follows this table item by item.

Nominal Voltage51.2 V
Nominal Capacity200 Ah
Capacity @ 20A600 min
Energy10240 Wh
CommunicationCAN2.0/RS232/RS485
Resistance≤45 mΩ @ 50% SOC
Efficiency>96%
Module ParallelUp to 3 packs
Recommended Charge Current20A
Maximum Charge Current100A
Recommended Charge Voltage57.6V
BMS Charge Cut-Off Voltage<58.4 V (3.65V/Cell)
Reconnect Voltage>57.6 V (3.6V/Cell)
Balancing Voltage<57.6 V (3.6V/Cell)
Maximum Batteries in Series15
Maximum Continuous Discharge Current100 A
Peak Discharge Current110 A (3s)
BMS Discharge Cut-Off Current150 A (300ms)
Balancing open voltage55.2 V (3.45V/Cell)
Recommended Low Voltage Disconnect44 V (2.75V/Cell)
BMS Discharge Cut-Off Voltage>32.0V (2s) (2.0V/Cell)
Reconnect Voltage>40.0 V (2.5V/Cell)
Short Circuit Protection250 ~ 500 μs
Dimension (L x W x H)580 x 420 x 230 mm 21.7 x 16.5 x 9.05″
Approx. Weight37.2 lbs (82 kg)
Terminal TypeDIN POST
Terminal Torque80 ~ 100 in-lbs (9 ~ 11 N-m)
Case MaterialSPPC
Enclosure ProtectionIP65
Discharge Temperature-4 ~ 131 ºF (-20 ~ 55 ºC)
Charge Temperature-4 ~ 113 ºF (0 ~ 45 ºC)
Storage Temperature23 ~ 95 ºF (-5 ~ 35 ºC)
BMS High Temperature Cut-Off149 ºF (65 ºC)
Reconnect Temperature131 ºF (55 ºC)
Heating Temperature Range-4 to 41 ºF (-20 to 5 ºC)
Heating TimeApproximately 1 hour @ 7.5 A
BMS Heating Foil Cut-Off158 ºF (70 ºC)
Materials

What It Is Made Of

  • Lithium iron phosphate (LiFePO4) cells with stable chemistry and high thermal safety
  • Integrated Battery Management System (BMS) with electronic protection circuits
  • Steel casing with wall-mounting brackets for secure installation
  • Copper busbars and high-conductivity interconnects for low resistance
  • Insulated enclosure with ventilation slots for thermal management
Manufacturing and Preparation

Before It Ships

  • Battery pack assembled with LiFePO4 cells and BMS integrated at cell level
  • BMS firmware calibrated and tested for charge, discharge, and protection thresholds
  • Resistance and voltage checks performed at 50% SOC before final assembly
  • Pack tested under load for efficiency, discharge performance, and thermal stability
  • Final inspection and labeling completed before packing for export
Quality Control

Checked Before Packing

Customisation

What Can Be Changed at Order Stage

  • Battery pack configured for single or multi-series string setups up to 15 batteries
  • BMS communication interface selected from CAN2.0, RS232 or RS485
  • Mounting brackets adapted for wall, rack or floor installation
  • Pack size adjusted for space-constrained installations with custom dimensions
  • Communication protocol and data logging settings configured on request
Comparison

How It Compares With the Alternatives

Lead-acid battery bankLonger cycle life and lower maintenance, but higher initial cost
Other lithium chemistriesSafer chemistry with better thermal stability, but lower energy density than NMC
No battery storageProvides backup and energy shifting, but requires solar or grid input to charge
Larger battery systemsModular design allows scaling with fewer units, but limited to 3 parallel packs per system
Use Guide

Getting It Working on Site

1

Install the pack in a clean, cool, dry, and ventilated area with ambient temperature below +60°C

2

Store the battery at 30–50% state of charge and recharge every 3 months if unused

3

Connect to solar inverter or charge source using correct polarity and cable gauge

4

Do not short circuit, reverse polarity, crush, disassemble, heat or immerse in liquid

5

Use only recommended charge current (20A) and voltage (57.6V) to avoid BMS lockout

6

Monitor BMS status via CAN2.0/RS232/RS485 interface for real-time performance

Go Deeper

Related Pages

Related Solutions

Related Industries

Related Guides

Related Products

Others in ESS

White and black cabinet style solar energy storage unit with green text on a white background
ESS

5kWh All in One Solar Energy Storage System for Home Use

5kWh Solar Energy Storage System Off Grid Type for Home Use All-in-One Inverter + Hybrid Inverter Power by Sol

View product →
Black 48V100AH rack-mounted solar battery unit with handles, display, and circuit breaker
ESS

48V 100Ah 200Ah LiFePO4 Battery for Energy Storage System

Nominal Volt: 48V Nominal Capacity: 200Ah Energy Storage: 9600Wh With MBS Maximum Batteries in Series * 15 Rec

View product →
A black rectangular deep cycle solar battery with a white label showing specifications.
ESS

12V 100Ah 200Ah 24V LiFePO4 Battery for Home Energy Storage System

Nominal Volt: 12.8V Nominal Capacity: 100Ah Energy Storage: 1280Wh With MBS Maximum Batteries in Series * 4

View product →
FAQ

Questions About the 10kwh Power Wall LiFePO4 Battery Pack for Energy Storage System

What is the energy capacity of the 10KWH battery pack?

The pack stores 10240Wh of energy with a nominal voltage of 51.2V and a capacity of 200Ah.

How many cycles can the battery last?

It supports 4000 cycles at 80% depth of discharge, which reduces long-term ownership cost.

Can I connect multiple packs in parallel?

Yes, up to 3 packs can be connected in parallel for scalable storage.

What is the recommended charge current?

The recommended charge current is 20A, with a maximum of 100A for short periods.

Is the battery safe in high temperatures?

Yes, it is designed to operate safely in ambient temperatures up to +60°C.

What communication interfaces are available?

The BMS supports CAN2.0, RS232, and RS485 for monitoring and control.

How should I store the battery if not in use?

Store at 30–50% state of charge in a clean, cool, dry, and ventilated area, and recharge every 3 months.
