Solar Generator

1000W Solar Generator All-in-one Solar Home System with Battery

Features & Advantages Integrated 5V/12V/220V Output Inverter/Battery/Controller All-in-One Design Moveable Power Supply Generator Solar Charging and Grid Charging

Request A Quote Email Us
A blue solar generator unit with wheels next to two standing solar panels.

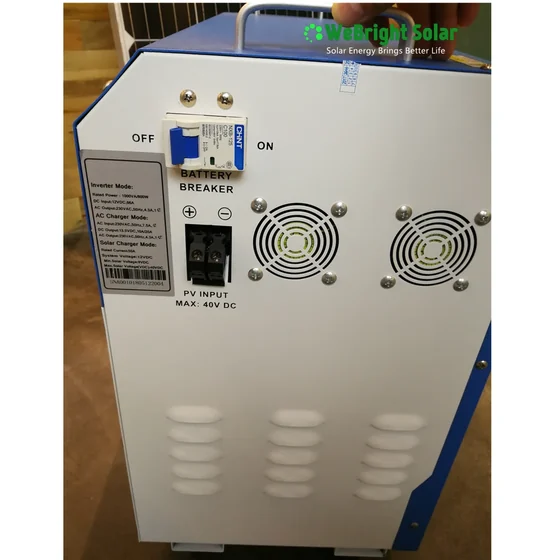

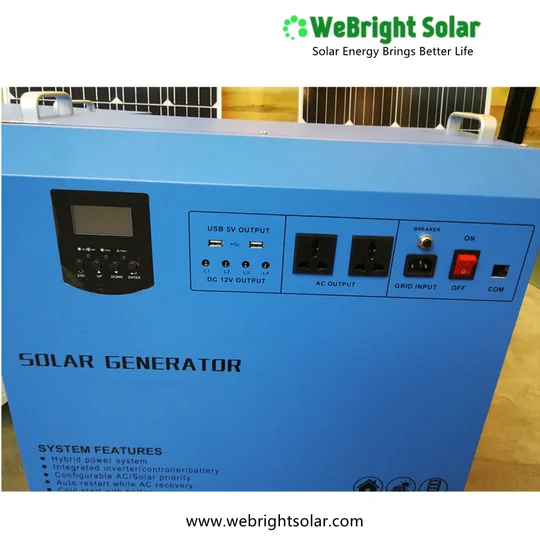

Blue solar generator unit with LCD screen, USB, AC, and DC output ports, and grid input.White and blue industrial power unit with a DC breaker, battery terminals, and cooling fans.
Product Overview

What This Product Is

A 1000W off-grid solar generator system designed for independent power supply in homes without grid access. It ships as a pre-configured all-in-one unit with two 18V 200W solar panels, a 12V 200Ah lead-acid battery, a 50A 12V PWM charge controller, and a 1000VA sine wave inverter. The system integrates AC, DC and USB outputs in a single unit, enabling immediate use without site assembly or compatibility checks.

Key Benefits

What You Get

  • All-in-one design with inverter battery and controller pre-integrated for fast deployment
  • Provides 220V AC, 12V DC and 5V USB outputs from a single unit
  • Solar charging and grid charging options for flexible power input
  • Moveable power supply suitable for temporary or remote locations
  • 200W solar panels per unit with 18V nominal voltage for reliable charging
  • 12V 200Ah lead-acid battery provides extended backup power
Who It Is For

Buyers and Sites

  • Solar installers setting up complete off-grid power for residential use
  • Importers supplying solar power solutions to off-grid markets
  • Homeowners seeking a simple, ready-to-use solar generator
  • Small businesses or farms needing a portable backup power source
Application Scenarios

Where It Is Installed

  • Remote homes or cabins with no grid connection
  • Power outages in rural or unstable-grid areas
  • Outdoor events or construction sites needing temporary power
  • Emergency backup for household appliances during blackouts
  • Mobile use in camping, RVs or small workshops
Problems It Solves

What This Removes From the Job

Technical Features

How It Is Built

  • 1000VA pure sine wave inverter with 220V AC output at 50Hz or 60Hz
  • 12V 200Ah lead-acid battery with internal storage and deep cycle capability
  • 50A 12V PWM charge controller for stable solar charging
  • Four 12V DC 1A output ports and two 5V USB 1A ports for low-power devices
  • DC input range 15V to 18V for solar or grid charging
  • Max AC charge current of 20A for grid charging support
Specifications

Technical Data

Values below are taken from the product documentation. Anything not listed is confirmed against your order.

System Power1000VA
Inverter Output220V 50Hz or 60Hz AC
Solar Panels2 pieces 18V 200W
Battery12V 200Ah lead-acid
Charge Controller50A 12V PWM
AC Output220V 50Hz or 60Hz
DC Output4 x 12V 1A ports
USB Output2 x 5V 1A ports
DC Input15V to 18V PWM
Max AC Charge Current20A
Solar ChargingYes, via 18V 200W panels
Grid ChargingYes, via DC input 15V-18V
Materials

What It Is Made Of

  • Polycrystalline or monocrystalline silicon solar cells in 18V 200W panels
  • Lead-acid battery with deep cycle design and 12V nominal voltage
  • PWM charge controller with 50A current rating and 12V system voltage
  • Pure sine wave inverter with 1000VA output capacity
  • Copper wiring and standard connectors for internal circuitry
Manufacturing and Preparation

Before It Ships

  • Confirm load requirements against the 1000VA inverter capacity
  • Verify solar panel input voltage matches the 18V nominal rating
  • Ensure battery is at full charge before first use
  • Connect solar panels to the charge controller before system activation
  • Test AC DC and USB outputs after initial setup
  • Package the complete unit with solar panels and battery in a transportable housing
Quality Control

Checked Before Packing

Customisation

What Can Be Changed at Order Stage

  • Battery type changed from lead-acid to lithium on request
  • Output frequency set to 50Hz or 60Hz based on regional standard
  • Solar panel configuration adjusted if more than two panels are needed
  • DC input range extended for higher voltage charging if required
  • Housing modified for outdoor or indoor mounting
Comparison

How It Compares With the Alternatives

Separate solar inverter battery and controllerIntegrated unit reduces on-site wiring and compatibility issues, but limits component choice
Grid-tie solar systemWorks without grid connection, but requires battery storage unlike grid-tie systems
Portable diesel generatorNo fuel required and silent operation, but lower power output and shorter runtime than diesel
Basic solar charger with no batteryProvides continuous power during sunlight, but no backup during night or cloud cover
Use Guide

Getting It Working on Site

1

Check that the 12V 200Ah battery is fully charged before first use

2

Connect the two 18V 200W solar panels to the charge controller before turning on the system

3

Use the 220V AC outlet for appliances like lights, fans, or small refrigerators

4

Plug low-power devices into the 12V DC and 5V USB ports for direct charging

5

Enable grid charging via DC input if available, using a 15V-18V source

6

Keep the unit in a dry, ventilated area to prevent overheating

Go Deeper

Related Pages

Related Guides

Related Products

Others in Solar Generator

Portable power station with AC outlets, USB ports, and digital display
Solar Power Station

500W Portable Power Station 1000W with AC 220V DC 12V

Pure Sine Wave Output Lithium Battery 550Wh Built-in Output: 220V/110V Type-C, DC 12V, USB Charged by Solar Pa

View product →
A portable power station with a digital display, accompanied by battery clamps, a multi-cable set, and a white adapter.
Solar Generator

300W Solar Power Bank DC AC Power Station with Lithium Battery

Pure Sine Wave Output Lithium Battery 330Wh Built-in Output: 220V/110V Type-C, USB Charged by Solar Panel & AC

View product →
Portable power station with silver top and black front panel showing AC and DC ports, with white adapter and cable
Solar Generator

Solar Power Station 120W AC Power Bank with Lithim Battery

Pure Sine Wave Output Lithium Battery 115Wh Built-in Output: 110V/220V, Type-c, USB Port Charged by Solar or A

View product →
Solar energy kit with two red and white power units, a panel, and two light bulbs.
Solar Generator

Solar Generator 1000W Portable Solar Power Kit with AC 220V DC 12V

Integrated 5V/12V/220V/110V Output Inverter/Battery/Controller All-in-One Design Portable & Stand-alone Kit Po

View product →
FAQ

Questions About the 1000W Solar Generator All-in-one Solar Home System with Battery

What is the output voltage and frequency of the inverter?

The inverter provides 220V AC output at either 50Hz or 60Hz, selectable based on regional needs.

Does the system include the battery?

Yes. The system includes one 12V 200Ah lead-acid battery as standard.

Can I use a lithium battery instead of lead-acid?

Yes. Lithium battery options are available on request. Notify us at order stage to adjust controller settings.

How many solar panels are included?

Two 18V 200W solar panels are included in the system.

Can I charge the battery from the grid?

Yes. The system supports grid charging via the DC input range of 15V to 18V.

What devices can I run on this generator?

It can power small household appliances like lights, fans, TVs, and USB devices. Avoid high-wattage motors or compressors exceeding 1000VA.

Is the system portable?

Yes. The all-in-one design with integrated components makes it moveable for use in different locations.

Request a Quote for the 1000W Solar Generator All-in-one Solar Home System with Battery

Send your load list or drawing on WhatsApp or by email and an engineer will reply with pricing, the configuration and the packing details.
