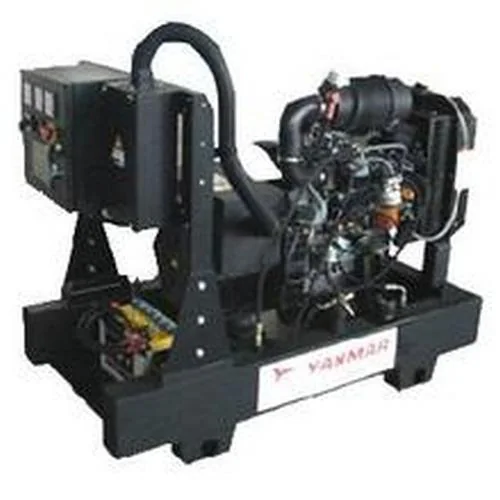

Yanmar diesel generator set
Cummins, Perkins, Volvo, Doosan Daewoo, Deutz, MTU, Mitsubishi, Yanmar and Chinese engine gensets from 5 kVA to 3000 kVA, in open, soundproof, container and trailer configurations.
| Category | Diesel Generator Sets |
| Standard controller | Smartgen, other brands on request |
| Standard alternator | Stamford, other brands on request |
| Testing | No load, 50 %, 75 %, full load and 110 % load before shipment |
YANMAR series diesel generator adopts the Yanmar diesel engine. They are used widely in the industry, railway, outdoor project as the small power generator because of compact configuration, easy to operate, environment-friendly, low fuel consumption. Moreover, it accord with the EU and EPA Emissions standard. The Yanmar diesel engine is the Japan origin
| Genset Model | Genset Specification | Engine Model | Open Type | Technical Data | ||||
|---|---|---|---|---|---|---|---|---|
| (50Hz) | Prime Power | Standby Power | YANMAR | Dimention | Gross Weight (kg) | |||
| kVA | kW | kVA | kW | (L×W×H)(mm) | ||||
| UYM6 | 6 | 5 | 8 | 6 | 3TNV76-GGE | 1100×530×900 | 350 | Download |
| UYM9 | 9 | 8 | 11 | 9 | 3TNV82A-GGE | 1150×530×900 | 360 | Download |
| UYM13 | 13 | 10 | 14 | 11 | 3TNV88-GGE | 1200×530×900 | 430 | Download |
| UYM15 | 15 | 12 | 16 | 13 | 4TNV88-GGE | 1350×560×920 | 480 | Download |
| UYM18 | 18 | 14 | 19 | 15 | 4TNV88-GGE | 1350×560×920 | 490 | Download |
| UYM20 | 20 | 16 | 23 | 18 | 4TNV84T-GGE | 1650×600×1000 | 640 | Download |
| UYM25 | 25 | 20 | 28 | 22 | 4TNV98-GGE | 1650×600×1000 | 640 | Download |
| UYM30 | 30 | 24 | 33 | 26 | 4TNV98-GGE | 1680×600×1150 | 680 | Download |
| UYM33 | 33 | 26 | 36 | 29 | 4TNV98-GGE | 1860×650×1150 | 800 | Download |
| UYM40 | 40 | 32 | 44 | 35 | 4TNV98T-GGE | 1860×650×1150 | 820 | Download |
| UYM50 | 50 | 40 | 55 | 44 | 4TNV106-GGE | 1860×650×1250 | 850 | Download |
| UYM60 | 60 | 48 | 66 | 53 | 4TNV106T-GGE | 1860×650×1250 | 870 | Download |
FAQ
The power in kVA or kW, the frequency, the voltage, and whether you need open, soundproof, container or trailer type. Tell us the quantity and the destination port as well and we will quote delivered.
Yes. Smartgen and Stamford are standard. Deepsea, ComAp and Harsen controllers and Leroy Somer, Marathon, Engga or Kaijielie alternators are available on request.
Yes. Sets are tested at no load, 50 % load, 75 % load, full load and 110 % load, and ship with a test report signed by the technical department.
Send the power, the frequency and the voltage and we will confirm the model and the price.
