60Hz Perkins Diesel Generator Set - Diesel Generator Sets

Pekins diesel generator set

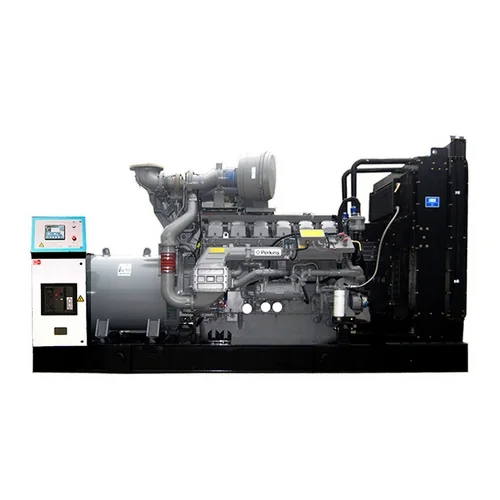

60Hz Perkins Diesel Generator Set

Cummins, Perkins, Volvo, Doosan Daewoo, Deutz, MTU, Mitsubishi, Yanmar and Chinese engine gensets from 5 kVA to 3000 kVA, in open, soundproof, container and trailer configurations.

CategoryDiesel Generator Sets
Standard controllerSmartgen, other brands on request
Standard alternatorStamford, other brands on request
TestingNo load, 50 %, 75 %, full load and 110 % load before shipment
Get A Quote WhatsApp

60HZ Perkins Gensets

● Driven by well known Perkins engine, powerful
● Four stroke, water cooled, exhaust turbo charger, intercooler
● Built in a separate fuel injector, more economical fuel consumption
● Unique piston and cylinder design
● Excellent exhaust and cooling system, high-performance in security
● Emissions optimized to meet the Euro emission standards and the U.S. EPA Standards
● Power range:9KW-1350KW
GensetPrime PowerStandby PowerPerkins EngineAlternatorOpen typeFuelConsumption(L/H)
ModelkvakwkvakwModelNo.of CylinderBrandModelL*W*H(mm)G.W(kg)Fuel Tank(L)Noise dBA100%50%
UP11G1191210403D-11G3.LStamfordPI044E1200x600x95036050912.51.3
UP15G15121713403D-15G3.LStamfordPI044G1200x600x95043060913.31.7
UP20G20162218404D-22G4.LStamfordPI044H1350x560x105050060914.42.3
UP23G23182520404D-22G4.LStamfordPI144D1350x560x1050520609152.6
UP28G28223024404D-22TG4.LStamfordPI144E1350x560x105055060915.13.2
UP31G31253528404D-22TG4.LStamfordPI144F1350x560x105080060916.93.6
UP35G352839311103A-33G3.LStamfordPI144G1550x760x115080065957.84
UP40G403244351103A-33TG13.LStamfordPI144H1600x760x120092075956.94.6
UP50G504055441103A-33TG13.LStamfordPI144K1600x760x1200950759511.15.8
UP63G635069551103A-33TG23.LStamfordUCI224D1700x760x12501000759513.97.2
UP68G685475601103A-33TG23.LStamfordUCI224E1700x760x12501030759515.17.8
UP75G756083661104A-44TG14.LStamfordUCI224F1900x760x125010601009516.68.8
UP94G9475103831104A-44TG24.LStamfordUCI224G1900x760x125011001009520.810.8
UP106G10685117941006TG1A6.LStamfordUCI274C2150x860x149012502009822.511.7
UP112G11290124991104C-44TAG24.LStamfordUCI274C1900x860x125021002209823.912.4
UP120G120961321061006TG2A6.LStamfordUCI274C2150x860x149012502009825.413.2
UP135G1351101511211006TAG6.LStamfordUCI274D2250x860x145014002009829.215.2
UP150G1501201651321006TAG6.LStamfordUCI274E2250x860x145014002209831.816.5
UP188G1881502061651106C-E66TAG46.LStamfordUCI274F2500x850x145014502209839.820.7
UP200G2001602201761106C-E66TAG46.LStamfordUCI274G2500x850x1450170023510042.422.1
UP225G2251802481981306C-E87TAG36.LStamfordUCI274H2800x1050x1600170023510047.724.8
UP250G2502002752201306C-E87TAG46.LStamfordUCI274J2800x1050x160024002801005327.6
UP300G3002403302642206A-E13TAG56.LStamfordHCI444C3250x1120x2000336048010260.731.6
UP350G3502803853082206A-E13TAG56.LStamfordHCI444D3250x1120x2000338048010270.836.8
UP375G3753004133302206A-E13TAG56.LStamfordHCI444ES3250x1120x2000340048010275.939.5
UP400G4003204403522206A-E13TAG56.LStamfordHCI444E3250x1120x200034504801028142.1
UP438G4383504823852206D-E13TAG36.LStamfordHCI444FS3250x1120x2000350048010288.646
UP500G5004005504402506D-E15TAG16.LStamfordHCI544C3500x1120x20503600550102101.252.6
UP563G5634506194952506C-E15TAG36.LStamfordHCI544D3500x1120x20503700550102113.959.2
UP625G6255006885502806C-E18TAG36.LStamfordHCI544E3500x1300x21004000750102128.565.8
UP688G6885507576052806C-E18TAG36.LStamfordHCI544E3500x1300x21004000750102139.272.4
UP750G7506008256604006-23TAG2A6.LStamfordHCI544E4100x1660x22005300880102151.878.9
UP850G8506809357484006-23TAG3A6.LStamfordLVI634B4100x1660x2200550088010617289.5
UP875G8757009637704008TAG18.LStamfordLVI634B4750x2100x245077001200105177.192.1
UP1000G100080011008804008TAG28.LStamfordLVI634C4750x2100x24507900120010617289.5
UP1250G12501000137511004012-46TWG2A12.VStamfordLVI634E4900x1800x250010000\106253131.6
UP1375G13751100151312104012-46TWG3A12.VStamfordLVI634F4900x1800x250010000\106278.3144.7
UP1500G15001200165013204012-46TAG2A12.VStamfordLVI634G5000x2200x255010200\106303.6157.9
UP1688G16881350185714854012-46TAG3A12.VStamfordPI734B5000x2200x255010200\106341.6177.6
Notes: 1.Above gensets based on 60HZ, rated volatage 440v/254v, power factor is 0.8lag, and connecting method are 3phase 4 wires.
2.If user needs other type voltage,  it is also adjustable,like 60HZ 480V,220V,440V,460V,etc.
3."S" stands for soundproof type, eg. UP11GS
4.Smartgen brand control panel as one standard controller, other brand controller also available.
5.Stamford alternator as standard alternator, but other brand alternator also availble, like leroysomer, marathon , etc.
6.Sound level test:open type-at 1meter distance;soundproof type: at 7meter distance.
60Hz Perkins Diesel Generator Set

Related Products

All Diesel Generator Sets
5kW Diesel Generator Set

5kW Diesel Generator Set

Chinese diesel generator set
Chinese Brand Diesel Generator Set

Chinese Brand Diesel Generator Set

Chinese diesel generator set
Container Type Generator Set

Container Type Generator Set

Container Type generator
50Hz Cummins Diesel Generator Set

50Hz Cummins Diesel Generator Set

Cummins diesel generator set

FAQ

Product FAQ

What information do you need to quote this set?

The power in kVA or kW, the frequency, the voltage, and whether you need open, soundproof, container or trailer type. Tell us the quantity and the destination port as well and we will quote delivered.

Can the engine, alternator or controller brand be changed?

Yes. Smartgen and Stamford are standard. Deepsea, ComAp and Harsen controllers and Leroy Somer, Marathon, Engga or Kaijielie alternators are available on request.

Is the set tested before shipment?

Yes. Sets are tested at no load, 50 % load, 75 % load, full load and 110 % load, and ship with a test report signed by the technical department.

Quote 60Hz Perkins Diesel Generator Set

Send the power, the frequency and the voltage and we will confirm the model and the price.
