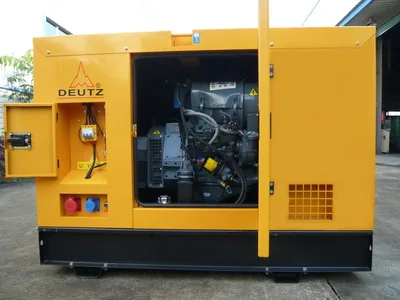

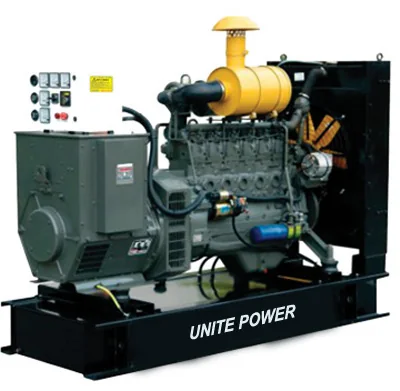

60Hz Deutz Diesel Generator Set

Germany Deutz Diesel Genset

Drive by Deutz Engine, it provides strong power, high torque and is easy to maintain and start with high reaction speed, wide application of electroinic speed controller, the variation of genset frequency form zero load to 100% is less than 1%, the performance is steady.and It is one-piece compact structure wit multiple internal vibration isolation small volume, reliable performance and long working life

Model	Prime Power		Standby Power		Fuel Consumption	Engine	No.of cylinder	Open Type			Soundproof Type
Model	kva	kw	kva	kw	l/h	Model	No.of cylinder	LxWxH(mm)	G.W(kg)	Fuel tank(L)	LxWxH(mm)	G.W(kg)	Fuel tank(L)
UD13G	13	10	14	11	3	F2L912D(air cooled)	2	1400×800×1100	500	80	1700×1000×1450	650	85
UD19G	19	15	21	17	4.5	F3L912D(air cooled)	3	1650×750×1100	560	94	1800×900×1120	800	94
UD25G	25	20	28	22	4.5	F3L912D(air cooled)	3	1650×750×1100	600	104	1820×900×1120	860	104
UD38G	38	30	41	33	8.6	F4L912D(air cooled)	4	1700x800x1100	700	150	1850x920x1150	900	150
UD50G	50	40	55	44	8.6	F4L912TD(air cooled)	4	1700x800x1100	800	200	1850x920x1150	940	200
UD63G	63	50	69	55	9	F6L912D(air cooled)	6	1700x850x1100	900	250	1850x950x1150	1000	250
UD70G	70	55	77	61	9.8	BF4M2012	4.L	1880x690x1350	850	180	2852x1000x1380	2020	180
UD81G	81	65	89	72	11.9	BF4M2012C	4.L	1880x690x1350	950	180	2852x1000x1380	2040	180
UD88G	88	70	96	77	13.3	BF4M1013E	4.L	2100x850x1500	1350	250	300x1100x1380	2110	250
UD100G	100	80	110	88	14	BF4M1013EC	4.L	2100x850x1500	1350	250	3000x1100x1480	2220	250
UD131G	131	105	144	116	18.9	BF4M1013FC	4.L	2100x850x1500	1500	250	3245x1200x1700	2330	250
UD163G	163	130	179	143	23.1	BF6M1013EC	6.L	2300x900x1500	1700	380	3245x1200x1700	3030	380
UD200G	200	160	220	176	28.7	BF6M1013FCG2	6.L	2300x900x1500	1800	380	3300x1306x1825	3130	380
UD219G	219	175	241	193	32.2	BF6M1013FCG3	6.L	2450x1000x1600	1900	380	3500x1355x1925	3330	380
UD250G	250	200	275	220	37.1	BF6M1015-LAGA	6.V	2600x1100x1700	2100	560	3500x1355x1925	3530	500
UD269G	269	215	296	237	38.5	BF6M1015C-LA G1A	6.V	2800x1100x1700	2800	560	3500x1355x1925	4553	626
UD313G	313	250	344	275	44.8	BF6M1015C-LA G2A	6.V	2800x1100x1700	3030	560	3500x1355x1925	4600	626
UD338G	338	270	371	297	49.7	BF6M1015C-LA G3A	6.V	2800x1100x1700	3030	560	3500x1355x1925	5200	626
UD375G	375	300	413	330	54.6	BF6M1015C-LA G4	6.V	2900x1250x1800	3450	560	4100x1520x2230	5500	626
UD394G	394	315	433	347	54.6	BF6M1015CP-LA G	6.V	3100x1500x2100	3800	560	4100x1520x2230	6120	626
UD450G	450	360	495	396	64.4	BF8M1015C-LA G1A	8.V	3300x1550x2100	4120	688	4300x1620x2250	6120	865
UD475G	475	380	523	418	70	BF8M1015CP-LA G1A	8.V	3300x1550x2100	4120	688	4300x1620x2250	6225	865
UD513G	513	410	564	451	79.1	BF8M1015CP-LA G2	8.V	3300x1550x2100	4210	688	4310x1720x2450	6400	865
UD588G	588	470	646	517	88.2	BF8M1015CP-LA G4	8.V	3300x1550x2100	4210	688	4310x1720x2450	6700	865
UD600G	600	480	660	528	90.3	BF8M1015CP-LA G5	8.V	3300x1550x2100	4210	688	4310x1720x2450	6800	865

Notes

Above gensets all based on 60HZ,1800RPM, rated volatage 127V/220V, power factor is 0.8lag, and connecting method are 3phase 4 wires
The other type voltage, it is also adjustable,like 60HZ 480V,440V,460V,etc
"S" stands for soundproof type, eg. UD13GS;4.Smartgen brand control panel as one standard controller, other brand controller also available
Stamford alternator as standard alternator, but other brand alternator also availble, like leroysomer, marathon , etc

FAQ

Product FAQ

What information do you need to quote this set?

The power in kVA or kW, the frequency, the voltage, and whether you need open, soundproof, container or trailer type. Tell us the quantity and the destination port as well and we will quote delivered.

Can the engine, alternator or controller brand be changed?

Yes. Smartgen and Stamford are standard. Deepsea, ComAp and Harsen controllers and Leroy Somer, Marathon, Engga or Kaijielie alternators are available on request.

Is the set tested before shipment?

Yes. Sets are tested at no load, 50 % load, 75 % load, full load and 110 % load, and ship with a test report signed by the technical department.

Category	Diesel Generator Sets
Standard controller	Smartgen, other brands on request
Standard alternator	Stamford, other brands on request
Testing	No load, 50 %, 75 %, full load and 110 % load before shipment
