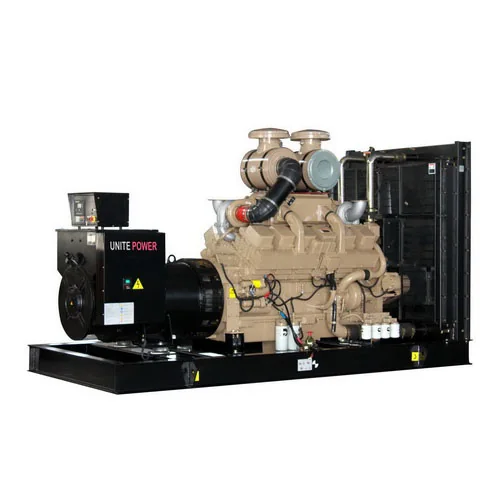

60Hz Cummins Diesel Generator Set

Cummins Diesel Genset (60HZ)

Driven by well known Cummins engine, powerful
Four stroke, water cooled, exhaust turbo charger, intercooler
Unique piston and cylinder design
Excellent exhaust and cooling system, high-performance in security
Smartgen brand control panel as standard controller, other brand controller is also available, like Deepsea, ComAp, Harsen
Stamford alternator as standard alternator, but other brand alternator is also available, like Leroysomer, Kaijielie, Engga ,etc
Sound level testing: open type: at 1meter distance; silent type : at 7 meter distance. About Silent type details,contact us
The voltage can be adjustable, like 127V/220V; 220 V/380V ; 254V/440V; 277V/480V etc

Genset	Prime Power		Standby Power		Cummins Engine		Alternator		Open type				FuelConsumption(L/H)
Model	kva	kw	kva	kw	Model	No.of Cylinder	Brand	Model	LWH(mm)	G.W(kg)	Fuel Tank(L)	NoisedBA	100%	50%
UPC29G	29	23	32	25	4B3.9-G1	4.L	Stamford	PI144E	1700x730x1300	700	100	93	6.4	3.3
UPC31G	31	25	34	28	4BT3.9-G1	4.L	Stamford	PI144F	1700x730x1300	700	100	95	6.9	3.6
UPC38G	38	30	41	33	4BT3.9-G1	4.L	Stamford	PI144H	1750x760x1300	750	100	95	8.3	4.3
UPC43G	43	34	47	37	4BT3.9-G1	4.L	Stamford	PI144J	1750x760x1300	800	100	95	9.4	4.9
UPC50G	50	40	55	44	4BTA3.9-G2	4.L	Stamford	PI144K	1750x760x1300	900	110	96	11.1	5.8
UPC63G	63	50	69	55	4BTA3.9-G2	4.L	Stamford	UCI224D	1800x760x1300	900	110	96	13.9	7.2
UPC94G	94	75	103	83	6BT5.9-G2	6.L	Stamford	UCI224G	2150x830x1400	1100	160	98	19.9	10.3
UPC100G	100	80	110	88	6BT5.9-G2	6.L	Stamford	UCI274C	2150x830x1400	1100	160	98	21.2	11
UPC125G	125	100	138	110	6BTA5.9-G2	6.L	Stamford	UCI274D	2150x830x1400	1200	180	98	26.5	13.8
UPC150G	150	120	165	132	6BTAA5.9-G2	6.L	Stamford	UCI274E	2300x830x1400	1300	200	98	31.8	16.5
UPC188G	188	150	206	165	6CTA8.3-G2	6.L	Stamford	UCI274F	2320X850X1500	1700	220	100	39.8	20.7
UPC200G	200	160	220	176	6CTAA8.3-G2	6.L	Stamford	UCI274G	2510X850X1600	1800	220	100	42.4	22.1
UPC250G	250	200	275	220	6LTAA8.9-G2	6.L	Stamford	UCDI274J	2550X960X1650	2000	275	103	53	27.6
UPC250G	250	200	275	220	NTA855-GA	6.L	Stamford	UCDI274J	3000x1120x1655	2600	315	105	53	27.6
UPC313G	313	250	344	275	NTA855-G1	6.L	Stamford	HCI444D	3000x1120x1655	2600	400	105	63.3	32.9
UPC344G1	344	275	378	303	NTA855-G1B	6.L	Stamford	HCI444D	3000x1120x1655	2800	400	105	69.6	36.2
UPC344G2	344	275	378	303	NTA855-G2	6.L	Stamford	HCI444D	3000x1120x1655	3000	400	105	69.6	36.2
UPC394G	394	315	433	347	NTA855-G3	6.L	Stamford	HCI444ES	3000x1120x1655	3100	400	105	79.7	41.4
UPC438G	438	350	481	385	KTA19-G2	6.L	Stamford	HCI444FS	3400x1360x2070	4200	660	106	88.6	46
UPC513G	513	410	564	451	KTA19-G3	6.L	Stamford	HCI544C	3400x1360x2070	4200	660	106	103.7	53.9
UPC563G	563	450	619	495	KTA19-G4	6.L	Stamford	HCI544D	3400x1360x2070	4200	660	106	113.9	59.2
UPC625G	625	500	688	550	KTAA19-G5	6.L	Stamford	HCI544E	3600x1550x2200	4500	660	106	126.5	65.8
UPC688G1	688	550	756	605	KTAA19-G6A	6.L	Stamford	HCI544E	3600x1550x2200	4500	660	106	139.2	72.4
UPC688G2	688	550	756	605	KTAA19-G7	6.L	Stamford	HCI544E	3600x1550x2200	4500	660	106	139.2	72.4
UPC688G3	688	550	756	605	QSK19-G3	6.L	Stamford	HCI544E	4060x1880x2250	6200	660	106	139.2	72.4
UPC775G	775	620	853	682	KT38-G	12.V	Stamford	HCI544FS	4200x1820x2250	7500	\	109	156.9	81.6
UPC906G	906	725	997	798	KTA38-G2	12.V	Stamford	LVI634B	4200x1820x2250	7600	\	109	183.4	95.4
UPC1000G	1000	800	1100	880	KTA38-G2A	12.V	Stamford	LVI634C	4200x1820x2250	7700	\	109	202.4	105.4
UPC1125G	1125	900	1238	990	KTA38-G4	12.V	Stamford	LVI634D	4200x1820x2250	9400	\	109	227.4	118.4
UPC1200G	1200	960	1320	1056	QSK38-G5	12.V	Stamford	HCI634J	4200x1820x2250	9800	\	109	227.4	118.4
UPC1375G	1375	1100	1513	1210	KTA50-G3	16.V	Stamford	LV634F	4200x1820x2250	10000	\	109	278.4	144.7
UPC1563G	1563	1250	1719	1375	KTA50-G9	16.V	Stamford	PI734B	4870x2100x2500	11000	\	109	316	164.5
UPC1688G	1688	1350	1856	1485	QSK60-G4	16.V	Stamford	PI734B	5620x2280x2350	12000	\	110	342	177.5
UPC1875G	1875	1500	2063	1650	QSK60-G6	16.V	Stamford	PI734C	5800x2240x2500	15000	\	110	380	197.5
UPC2000G	2000	1600	2200	1760	QSK60-G6	16.V	Stamford	PI734D	5800x2240x2500	15300	\	110	405	210
UPC2250G	2250	1800	2475	1980	QSK60-G6	16.V	Stamford	PI734E	5800x2240x2500	15500	\	110	455	236.8

FAQ

Product FAQ

What information do you need to quote this set?

The power in kVA or kW, the frequency, the voltage, and whether you need open, soundproof, container or trailer type. Tell us the quantity and the destination port as well and we will quote delivered.

Can the engine, alternator or controller brand be changed?

Yes. Smartgen and Stamford are standard. Deepsea, ComAp and Harsen controllers and Leroy Somer, Marathon, Engga or Kaijielie alternators are available on request.

Is the set tested before shipment?

Yes. Sets are tested at no load, 50 % load, 75 % load, full load and 110 % load, and ship with a test report signed by the technical department.

Category	Diesel Generator Sets
Standard controller	Smartgen, other brands on request
Standard alternator	Stamford, other brands on request
Testing	No load, 50 %, 75 %, full load and 110 % load before shipment
