Kraft Paper Cushion Making Machine
This machine converts a roll of 70-80 gsm kraft paper into a single or double-layer paper cushion pad in a single pass. The machine feeds the paper, forms the cushion structure, and rewinds the finished pad roll. This allows a packaging producer to make its own cushioning material instead of purchasing finished pads, reducing dependency on external suppliers and avoiding the cost of a converter margin.
- Converts kraft paper reels into paper cushion pads on site, reducing reliance on third-party suppliers
- Supports single or double-layer feeding for stronger cushioning performance
- Operates at a consistent speed of 25 m/min, suitable for continuous production runs
- Compact footprint fits into small production spaces without requiring major facility changes
- Single-pass process eliminates the need for separate forming and rewinding steps
Why Buyers Choose It
- Plastic cushioning is being rejected by end customers in export markets due to environmental restrictions
- Purchasing finished paper cushion pads adds a supplier margin and long lead times
- Manual cushioning is inconsistent and slow compared to machine-fed production
- Lack of in-house cushioning capacity forces reliance on external suppliers with variable quality
Who Runs This Machine
- Packaging producers looking to convert kraft paper into cushion pads without buying finished products
- Fulfilment operators running automated lines that need reliable, consistent cushioning
- Paper slitting houses adding a converting step to their existing operations
- Small to mid-sized converters with limited space and budget for new machinery
Where This Machine Is Used
- Protective packaging producers replacing plastic foam or bubble wrap with paper cushioning
- E-commerce fulfilment centres needing consistent cushioning for fragile items in high-volume packing
- Paper converters adding value by producing paper cushion pads from kraft reels
- Packaging lines that require a low-cost, low-maintenance solution for in-house cushioning
Features And Specifications
Technical features
- Single or double-layer feeding capability for 70-80 gsm kraft paper
- Feeding roll width of 760 mm for standard kraft reels
- Fixed operating speed of 25 m/min with stable performance
- Machine dimensions: 1250 x 1000 x 850 mm (L x W x H)
- Machine weight: 100 kg for easy handling and installation
- Rewinding system built into the machine for continuous roll production
- Simple mechanical design with no complex servo systems or digital controls
Specifications
| Feeding roll width | 760 mm |
|---|---|
| Operating speed | 25 m/min |
| Material thickness | 70-80 gsm |
| Layer configuration | 1 or 2 ply feeding |
| Machine dimensions | 1250 x 1000 x 850 mm (L x W x H) |
| Machine weight | 100 kg |
How The Machine Runs
Materials
- Kraft paper reels from 70 to 80 gsm
- Optional second layer of kraft paper for double-layer cushioning
- Standard kraft paper used in packaging and converting industries
Quality Control
- Machine is tested with customer-supplied kraft paper before shipment
- Consistent feeding width ensures uniform cushion pad formation
- Fixed speed operation maintains repeatable output across runs
Customisation
- Feeding width can be adjusted to match different reel sizes on request
- Rewinding system can be modified for different core diameters
- Power supply can be built to the voltage and frequency of the destination country
- Machine frame can be modified for site-specific installation constraints
Certifications
- ISO9001:2000 certificate obtained in 2005
- CE certificate obtained in 2006
How It Compares
| Buying finished paper cushion pads | Converting in house removes the supplier margin but requires inventory of kraft paper and machine ownership |
|---|---|
| Plastic foam cushioning | Paper cushioning is recyclable and accepted in markets restricting plastic, though it has lower impact resistance per unit weight |
| Honeycomb paper machines | This machine forms flat cushion pads; honeycomb machines create expandable honeycomb structures with different performance characteristics |
Running It On Your Floor

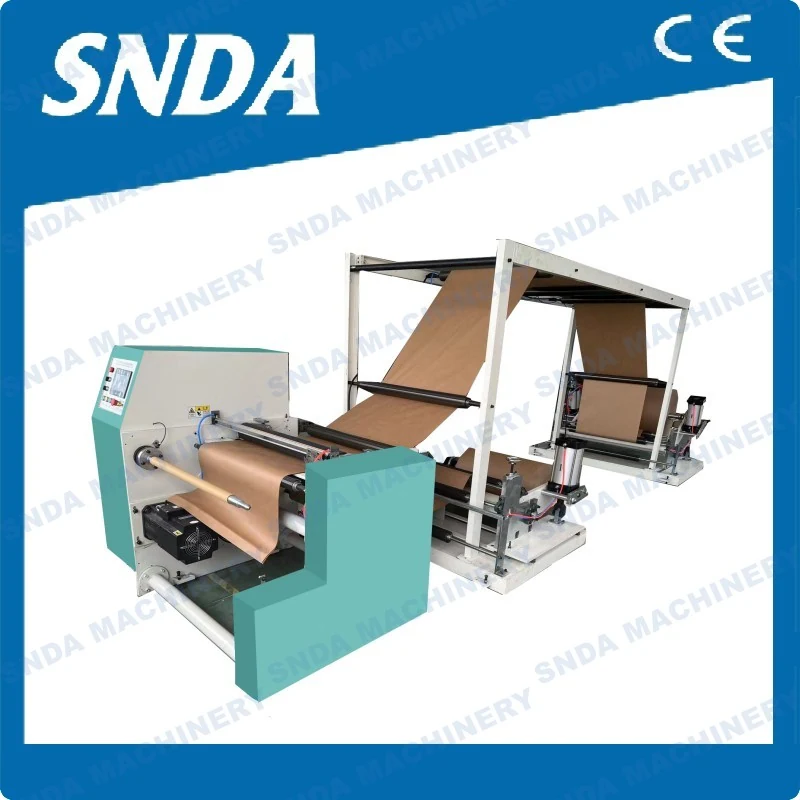

- Ensure the kraft paper reel is properly loaded and aligned on the feeding stand
- Select 1 or 2 layer feeding mode based on required cushion strength
- Start the machine at low speed and check the first few metres for proper formation
- Monitor the rewinding tension to avoid loose or wrinkled rolls
- Clean the forming rollers regularly to prevent paper dust buildup
Kraft Paper Cushion Making Machine FAQ
What paper weight can this machine run
It is designed for 70 to 80 gsm kraft paper, with support for 1 or 2 ply feeding.
How fast does it run
The machine operates at a fixed speed of 25 m/min.
Can it handle double-layer paper
Yes, it supports 1 or 2 layer feeding, with the second layer providing stronger cushioning.
What is the machine footprint
The machine measures 1250 x 1000 x 850 mm (L x W x H), suitable for small production areas.
What power supply do you build it for
Standard power supply is 380 V 3 phase, but we build to the voltage and frequency of your country on request.
Do you hold quality certificates
Wenzhou Snda Machinery holds an ISO9001:2000 certificate obtained in 2005 and a CE certificate obtained in 2006.
