Fanfold Kraft Paper Folding Machine with C type Folding inline
The SD-PF800A converts two reels of kraft paper into fanfolded cushioning sheets with a C-type fold in a single inline process. It feeds two kraft paper reels, forms a two-layer structure with a C-fold, performs perforation cutting, and delivers the finished fanfolded sheets onto a conveyor. This allows packaging producers to make their own fanfold paper for use as a protective cushioning material without relying on external suppliers.
- Produces fanfolded paper with a C-type fold that has stronger surface strength for protective packaging
- Two-reel feeding and inline C-fold formation create a double-layer structure in one process
- Perforation cutting and folding happen inline, so no separate machine is needed
- Delivers finished fanfold sheets directly to a conveyor for stacking or downstream integration
- Enables in-house production of fanfold paper, reducing dependency on external suppliers
Why Buyers Choose It
- Plastic foam inserts are being restricted or rejected by end customers in export markets
- Buying finished fanfold paper from suppliers adds a margin and long replenishment lead times
- Manual folding of kraft paper is slow and inconsistent compared to inline automation
- Lack of a reliable inline C-fold and perforation system requires multiple machines
- Inconsistent stack height or fold alignment causes issues in downstream packaging
Who Runs This Machine
- Packaging converters that already use kraft paper reels and want to add fanfold cushioning
- Fulfilment centres needing consistent fanfold paper for automated packing lines
- Paper mills and slitting houses expanding their product range with folded paper
- Packaging producers supplying fanfold paper to appliance or electronics manufacturers
Where This Machine Is Used
- Protective packaging producers making fanfold paper for use in e-commerce fulfilment centres
- Packers using fanfold paper to cushion electronics, appliances, and fragile goods during transit
- Paper converters adding a value-added folding and perforating step to kraft paper reels
- 3PL operators integrating fanfold paper into automated packaging lines for consistent output
- Manufacturers replacing plastic foam inserts with a paper-based fanfold cushioning solution
Features And Specifications
Technical features
- Two-reel feeding system for simultaneous processing of two kraft paper reels
- C-type folding inline to form a double-layer structure with enhanced surface strength

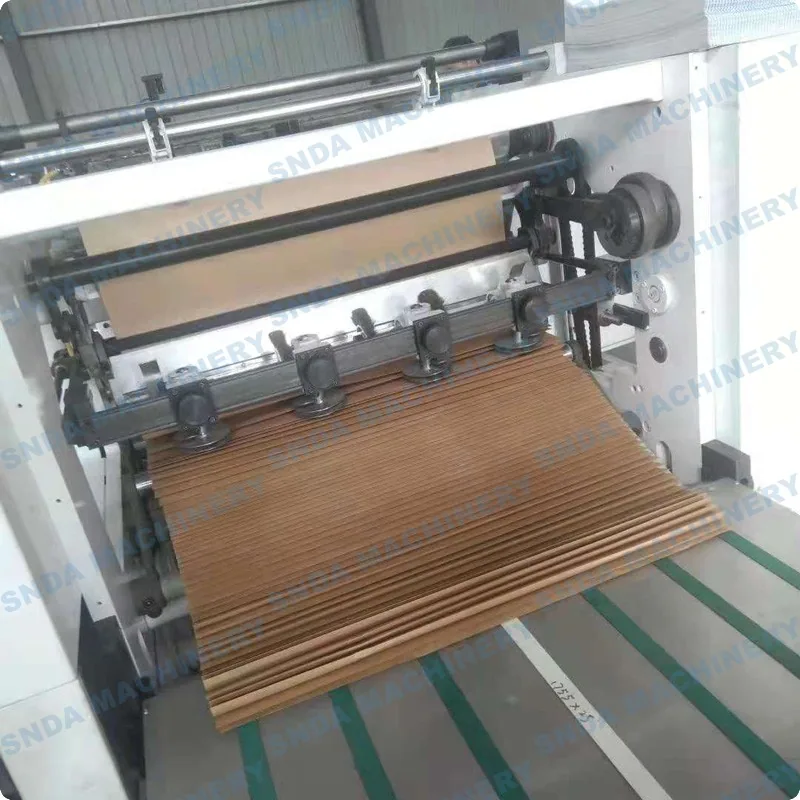

- Integrated perforation cutting and folding unit for continuous production
- Conveyor-based stacking system for direct output to downstream processes
- Inverter-driven main motor for stable operation at 150 m/min maximum speed
- 3 inch inflatable air shaft for unwinding reels up to 1200 mm diameter
- Automatic web guiding system to maintain alignment across the width
- Magnetic powder brake and clutch for consistent web tension control
Specifications
| Machine model | SD-PF800A |
|---|---|
| Max material width | 800 mm |
| Machine working speed | 150 m/min |
| Unwinding diameter | 0-1200 mm |
| Stacking system | By conveyor |
| Unwinding stand weight | 1 Ton |
| Unwinding shaft | 3 inch inflatable air shaft |
| Machine size | 6500 x 1600 x 1500 mm (L x W x H) |
| Machine weight | 3000 kg |
| Power supply | 380 V 3 phase |
How The Machine Runs
Materials
- Kraft paper reels from 70 to 100 gsm
- Two separate kraft paper reels fed simultaneously
- Optional soft white paper backing layer for laminated fanfold liner
- Perforation-ready paper stock for clean tear lines
Quality Control
- Web guide system maintains alignment across the full 800 mm width
- Magnetic powder brake and clutch ensure consistent tension during folding
- Folding and cutting units are checked for alignment before shipment
- Test runs are conducted with customer-provided paper before delivery
- Conveyor system is calibrated to ensure even stacking and no paper jams
Customisation
- Folding pattern can be adjusted for different fanfold angles or spacing
- Perforation pitch and depth can be modified to match customer tear requirements
- Power supply can be built to the voltage and frequency of the destination country
- Conveyor height and length can be adjusted for integration with existing lines
- Optional roll-to-sheet cutting unit can be added for downstream processing
Certifications
- ISO9001:2000 certificate obtained in 2005
- CE certificate obtained in 2006
How It Compares
| Buying finished fanfold paper rolls | In-house production removes the supplier margin but requires investment in kraft reel inventory and machine operation |
|---|---|
| Manual folding and cutting | The inline machine is faster and more consistent, reducing labour and variability in fold quality |
| Single-reel folding machines | This machine uses two reels to create a double-layer C-fold, which provides stronger surface strength |
Running It On Your Floor
- Load two kraft paper reels onto the inflatable air shafts, ensuring they are balanced
- Set the desired fold spacing and perforation pitch on the control panel before starting
- Start at low speed to verify web tracking and fold alignment
- Adjust the web guide and tension settings if the paper drifts or wrinkles
- Monitor the first few fanfold sheets to confirm clean perforation and consistent folding
Fanfold Kraft Paper Folding Machine with C type Folding inline FAQ
What paper weight can the machine handle
It is designed for kraft paper in the 70 to 100 gsm range, suitable for cushioning applications.
How fast does the machine run
The maximum working speed is 150 m/min, adjustable based on paper type and process stability.
What power supply do you provide
Standard is 380 V 3 phase. We can build to the voltage and frequency of your country on request.
What is the machine footprint and weight
The machine measures 6500 x 1600 x 1500 mm and weighs 3000 kg, so plan for a level floor and forklift access.
Can it handle two separate kraft paper reels
Yes, the machine is designed for two-reel feeding to form a double-layer C-fold structure.
Does it include perforation and folding
Yes, the machine performs inline perforation cutting and folding as part of the single process.
Do you hold quality certificates
Wenzhou Snda Machinery holds an ISO9001:2000 certificate obtained in 2005 and a CE certificate obtained in 2006.
