Gift Filler Crinkle Paper Shredding Machine

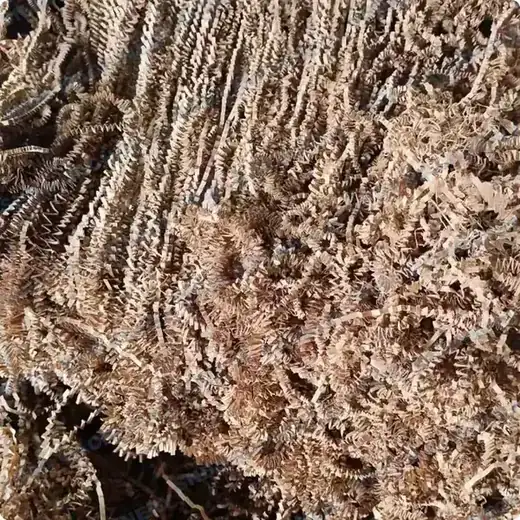

The SD-PS300 converts kraft paper rolls into crinkled filler paper strips in a single pass. The machine feeds paper from a roll, cuts it to length, and shreds it into fluffy, three-dimensional strips suitable for packaging fragile items. This allows a packaging producer to make its own gift filler paper instead of purchasing pre-made strips, reducing cost and improving supply control.
- Produces crinkled filler paper on site, eliminating reliance on third-party suppliers
- Adjustable cutting length from 120 to 380 mm allows custom strip sizes for different packaging needs
- Capable of producing 1 to 5 layers of paper, enabling multi-color or multi-layered filler strips
- Rotary blade cutting ensures clean, consistent shredding without fraying or tearing
- Operates at 0.6 to 0.7 m/s, with a capacity of about 100 to 120 kg per hour for steady production
Why Buyers Choose It
- Pre-made crinkle filler paper is expensive and subject to supply delays or stockouts
- Plastic foam and loose fill materials are being restricted by retailers and end customers
- Manual crinkling or cutting of paper is slow and inconsistent in thickness and length
- Inconsistent filler strip size leads to poor packing performance and customer complaints
- Lack of control over color, layer count, and texture in off-the-shelf filler products
Who Runs This Machine
- Packaging converters already using kraft paper rolls and looking to add a value-added product
- E-commerce packers replacing plastic foam or loose fill with paper-based alternatives
- Gift box manufacturers producing custom packaging with branded or multi-color filler
- Food and beverage packers needing recyclable, non-toxic filler for retail presentation
Where This Machine Is Used
- Packaging producers making custom crinkle filler paper for e-commerce gift boxes
- Electronics and glassware packers needing shock-absorbing, eco-friendly filler material
- Flower and wine packaging lines requiring decorative, lightweight filler for presentation
- Candy and confectionery manufacturers using crinkle paper for product display and protection
- Fulfilment centres producing bulk filler paper for high-volume order packing
Features And Specifications
Technical features
- Uses rotary blade cutting for clean, uniform shredding of paper strips
- Adjustable cutting length from 120 to 380 mm to match packaging requirements
- Supports 1 to 5 layers of paper feeding, allowing multi-color or multi-layered output
- Can produce both crinkled and straight paper effects on the same machine
- Automatic feeding and cutting reduce manual handling and operator effort
- Inflatable air shaft for smooth unwinding of paper rolls up to 600 mm diameter
- Stable operation at 0.6 to 0.7 m/s with consistent output across runs
Specifications
| Machine model | SD-PS300 |
|---|---|
| Max material width | Usually 3 mm (2 mm, 4 mm, or 5 mm require module change) |
| Cutting length | 120–380 mm adjustable |
| Machine working speed | 0.6–0.7 m/s adjustable |
| Capacity | About 100–120 kg/hour |
| Cutting type | Rotary blade |
| Unwinding diameter | Φ 600 mm |
| Unwinding shaft | 3 inch inflatable air shaft |
| Machine size | 1850 × 1150 × 1350 mm (L × W × H) |
| Machine weight | N.W 770 kg; GW 880 kg |
| Machine power | 6 KW |
| Power supply | 380 V 3 phase, 50 Hz or as customer requirement |
How The Machine Runs
Materials
- Kraft paper rolls from 50 to 180 gsm
- Multi-layer paper rolls for 1 to 5 layer output
- Color-matched paper rolls for multi-color filler strips
- Optional special illusion paper for decorative packaging
Quality Control
- Rotary blade maintains consistent cutting edge to prevent fraying or uneven strips
- Adjustable tension control ensures even feeding and prevents paper wrinkling
- Machine is test run with customer paper before shipment to verify output quality
- Cutting length is verified across multiple runs to ensure consistency
- Inflatable air shaft maintains uniform roll tension during unwinding
Customisation
- Cutting module can be changed for 2 mm, 4 mm, or 5 mm material width
- Power supply can be built to match the voltage and frequency of the destination country
- Layer count can be adjusted to 1, 3, or 5 layers based on customer request
- Machine can be configured to produce both crinkled and straight paper effects
- Optional integration with paper wrapper or packaging line for automated feeding
Certifications
- ISO9001:2000 certificate obtained in 2005
- CE certificate obtained in 2006
How It Compares
| Buying pre-made crinkle filler paper | Converting in house removes the supplier margin and allows custom strip length and layer count, but requires investment in the machine and kraft paper inventory |
|---|---|
| Plastic foam or loose fill materials | Paper crinkle filler is recyclable and accepted in markets restricting plastic, though it has lower bulk density and may require more volume for the same protection |
| Manual crinkling or cutting | The machine provides consistent strip length and texture, reducing labor and variability, but requires setup and maintenance |
Running It On Your Floor
- Ensure the kraft paper roll is properly mounted on the 3 inch inflatable air shaft
- Set the cutting length and layer count before starting the machine
- Begin at low speed and increase gradually to avoid web misalignment
- Check the first few strips for uniformity and correct layering
- Clean the rotary blade regularly to prevent paper dust buildup and maintain cutting quality
- Use the correct paper thickness for the selected number of layers to avoid jamming
Gift Filler Crinkle Paper Shredding Machine FAQ
What paper thickness can the machine handle
It supports 50–180 gsm for 5 roll feeding, 20–30 gsm recommended for 3 roll feeding, 50–60 gsm recommended for 1–2 roll feeding, and 70 gsm recommended for 1–2 roll feeding
How fast does the machine run
Working speed is adjustable from 0.6 to 0.7 m/s, with a capacity of about 100 to 120 kg per hour
Can it produce multi-color or multi-layer strips
Yes, it can produce 1 to 5 layers of paper, allowing for multi-color or multi-layered filler strips based on customer request
What power supply do you provide
Standard is 380 V 3 phase, 50 Hz, but we build to the voltage and frequency of your country on request
What is the machine size and weight
The machine is 1850 × 1150 × 1350 mm (L × W × H) and weighs 770 kg (N.W) or 880 kg (G.W)
Can it cut different widths of paper
The standard width is 3 mm; 2 mm, 4 mm, or 5 mm require a module change
Do you hold quality certificates
Wenzhou Snda Machinery holds an ISO9001:2000 certificate obtained in 2005 and a CE certificate obtained in 2006
