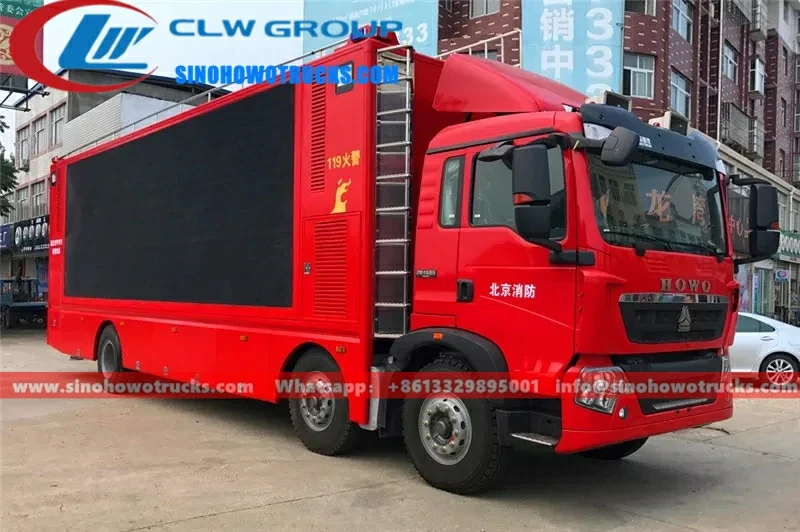

Sinotruk HOWO 6x2 LED fire protection advertising truck in Nigeria with dual side-mounted full-color LED screens

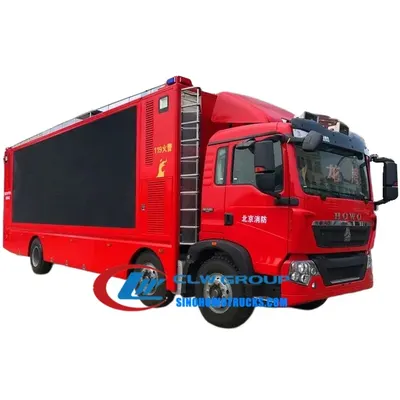

Side view of the HOWO LED advertising truck showing the 1.5 m lifting screen mechanism

Rear view of the HOWO LED fire propaganda truck with double-color scrolling marquee

Sinotruk Howo Led fire protection advertising truck nigeria

Name: Sinotruk Howo Led fire protection advertising truck nigeria
Brand: Sinotruk HOWO

The Sinotruk HOWO LED fire protection advertising truck is a 6x2 mobile digital billboard built on a HOWO chassis with a 240 HP diesel engine and 10-speed manual gearbox. It is designed for public safety campaigns, emergency awareness events, and live product promotions in urban and rural areas where fixed advertising is impractical. The truck features dual full-color LED screens on the sides, capable of displaying high-definition video and live broadcasts under direct sunlight. It supports fire safety education demonstrations and can be deployed at roadblocks, community centres, or disaster response zones to deliver real-time visual messaging.

Request A Quote Email Specification

Key Benefits

Dual side-mounted full-color LED screens with P3 to P6 pixel pitch for high clarity in daylight
Auto-brightness adjustment ensures visibility in all lighting conditions
Side screens lift 1.5 metres for stage-style public appearances and crowd engagement
Super-silent generator with low power consumption and environmental protection
P8 outdoor LED screen with imported EPISTAR chips and IP65 waterproof rating
10-speed manual gearbox and 240 HP engine provide reliable performance on rough roads
Luxury wood floor with plastic overlay improves durability and appearance
Double-color scrolling marquee on rear door enhances message visibility
18995 kg total mass allows stable operation with full electrical load

Buyer Profile

Who It Is for

Nigerian state and local government public safety departments running fire prevention programs
Private fire safety training companies delivering mobile education to industrial zones
Retail and FMCG brands launching new products in high-traffic public spaces
Event organisers needing mobile digital display units for outdoor festivals
Telecom and utility companies promoting safety messages near construction sites
NGOs and humanitarian groups conducting emergency awareness in flood-prone regions

Operating Problems

Problems It Solves

Lack of permanent advertising infrastructure in rural and informal settlements
Ineffective static posters that fail to capture attention in busy public spaces
Limited reach of fixed digital billboards in areas with poor network coverage
High cost and logistical complexity of setting up temporary stages for live events
Inability to deliver real-time emergency messages during crises without broadcast equipment
Low engagement from passive advertising methods in high-traffic urban corridors

Where It Works

Application Scenarios

Fire safety awareness campaigns in Nigerian urban and peri-urban communities
Emergency public alerts during flood or fire outbreaks with live video messaging
Product launches and live sales events in open-air markets and shopping districts
Mobile education units for schools and community centres with visual safety training
Concerts and mini-shows in remote areas without permanent stage infrastructure
Roadside safety demonstrations with live fire cause simulation and video playback

Engineering

Technical Features

HOWO 6x2 chassis with 240 HP diesel engine and 10-speed manual gearbox
Dual full-color LED screens on both sides with P3 to P6 pixel pitch options
Side screens lift 1.5 m for stage-level visibility and public interaction
P8 outdoor LED screen with 15625 pixels per sqm and high uniformity
Auto-brightness control adjusts screen output based on ambient light
Imported EPISTAR chips with DIP encapsulation for high brightness and long life
IP65 waterproof and anti-corrosion protection for outdoor durability
Super-silent generator with energy-saving operation and low noise
Double-color scrolling marquee on rear door for dynamic message display
High-quality media playback devices with integrated audio system
Luxury wood floor with plastic overlay for passenger comfort and durability
Fire cause demonstration setup integrated into the body structure

Specifications

Technical Data


Chassis	Sinotruk HOWO 6x2 left or right hand drive
Engine	240 HP diesel
Gearbox	10 shift manual
Overall Size	11590 x 2500 x 3990 mm
Total Mass	18995 kg
Cab Capacity	3 people
Number of Axles	3
Maximum Speed	110 km/h
Tire Size	315/60R22.5
Number of Tires	8
Wheelbase	1800+5600 mm
Emission Standard	Euro 3
Engine Power	176 kW
Engine Capacity	6870 cc
Fuel Type	Diesel
LED Screen Type	P3, P4, P5, P6 full color
Screen Brightness	Auto-adjusting
Screen IP Rating	IP65
Screen Material	DIP encapsulated, EPISTAR chips
Screen Lift Height	1.5 m side screens
Generator	Super-silent, energy-saving
Flooring	Luxury wood with plastic overlay
Marquee	Double-color scrolling on rear door
Lead Time	20 days
Shipping Port	China main port
Payment	T/T

Build Materials

Materials

Aluminium alloy side screen frames and lifting mechanisms
P3 to P6 full-color LED modules with imported EPISTAR chips
IP65 rated LED screen housing with anti-oxidation coating
Luxury wood flooring with wear-resistant plastic overlay
High-strength steel subframe for screen mounting and structural stability
Fire-resistant insulation in the electrical compartment

How It Is Built

Manufacturing Process

Chassis is received from Sinotruk and inspected for alignment and frame integrity
Body structure is fabricated with steel frame and mounting points for LED screens
LED screens are assembled and tested for pixel uniformity and brightness
Side screen lifting mechanisms are installed and calibrated for 1.5 m vertical lift
Electrical system including generator, media player, and audio equipment is wired and tested
Fire cause demonstration setup is integrated into the body structure
Interior flooring and cabin finishes are installed with luxury wood and plastic overlay
Final system integration includes auto-brightness control and marquee programming
Full system test is conducted on the factory apron including screen operation and generator performance
Photos and videos of the finished truck are sent to the buyer before balance payment

Testing

Quality Control

All trucks are 100 percent tested before delivery
LED screens are tested for pixel uniformity, brightness, and auto-brightness response
Generator and electrical system tested under full load for 4 hours
Side screen lift mechanism tested for 1000 cycles with no failure
Fire safety demonstration system verified for safe operation
Photos and videos of the finished truck are sent to the buyer before balance payment
Compliance with GB/T 20001.1-2001 for mobile advertising vehicles

Build to Order

Customization Options

LED screen pixel pitch selected from P3, P4, P5, or P6 based on viewing distance
Screen size and layout adjusted to match customer’s visual content requirements
Left or right hand drive chassis to match local traffic regulations
Tank colour and logo applied free of charge
Fire cause demonstration setup modified to match local safety education content
Interior flooring material changed to non-slip or anti-static if required
Media player software customized with customer’s content schedule

Comparison

How It Compares With the Alternatives

Single screen LED truck	Less visual impact and lower audience reach but simpler maintenance and lower cost
Fixed digital billboard	Higher mobility and flexibility but less permanent presence and higher initial setup cost
Traditional printed billboard truck	Dynamic content and real-time updates but higher power and maintenance needs

Operating Notes

Use Guide

Confirm left or right hand drive chassis at order stage to match local traffic rules
Do not operate the LED screens in direct rain without canopy protection
Use the auto-brightness setting to maintain visibility and reduce power consumption
Lift side screens only when the truck is on level ground and secured
Perform generator maintenance every 250 operating hours to ensure reliability
Store the truck in a dry, covered area when not in use to protect the LED screens

Buyer Questions About This Truck

What is the lead time for this LED advertising truck?

Generally 20 days after the advance payment is received. The exact date depends on chassis availability and screen configuration.

Can the LED screen be P3 instead of P6?

Yes. P3, P4, P5, and P6 are available. P3 offers the highest clarity and is best for close viewing distances.

What are your payment terms?

T/T with 30 percent deposit and 70 percent before delivery. We send photos and videos of the finished truck before you pay the balance.

Do you supply left or right hand drive?

Yes. The chassis is ordered in left or right hand drive to match your traffic regulations. Confirm this at order stage.

How is the truck shipped?

By Ro-ro or bulk ship from a China main port. Trade terms can be EXW, FOB, CFR, or CIF.

What warranty and after sales support do you provide?

The whole vehicle is guaranteed for one year and core parts for two years. Overseas engineers make regular return visits and provide technical training and manuals before delivery.

Can the fire safety demonstration setup be changed?

Yes. Send us your safety message content and we will integrate it into the body structure before delivery.
