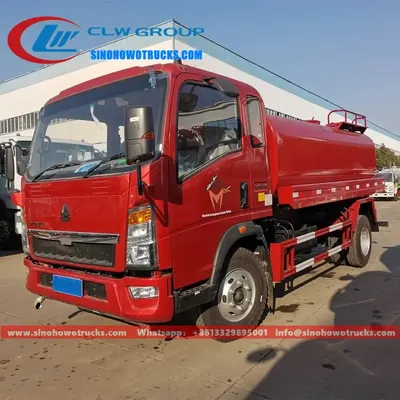

Rear view of the HOWO water truck showing the water cannon and spray platform

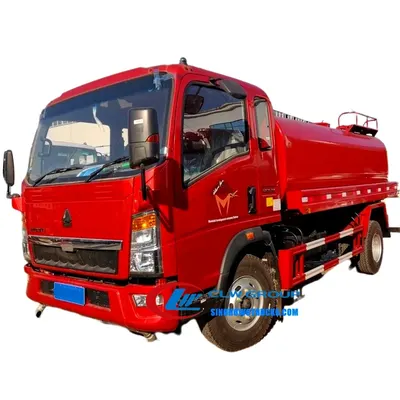

Side view of the HOWO water tanker with spray nozzles and tank access manhole

Sinotruk Howo 3000 gallons water transport truck Indonesia

Name: Sinotruk Howo 3000 gallons water transport truck Indonesia
Brand: Sinotruk HOWO

The Sinotruk HOWO 3000 gallons water transport truck is a 5000 to 6000 litre water tanker built on a 4x2 HOWO chassis with a 140 HP EURO 4 diesel engine and 5 forward gears. It is designed for transporting potable water, agricultural irrigation water, and industrial process water across rural and urban environments. The truck supports drought relief, construction site water supply, and municipal road cleaning with front, rear, and side spray systems. It can also be fitted with a pesticide spraying system for agricultural use. The tank is constructed from 5mm Q235B carbon steel with non-toxic internal treatment or stainless steel available on request, making it suitable for drinking water transport.

Request A Quote Email Specification

Key Benefits

5000 to 6000 litre tank capacity supports multiple delivery cycles without refilling
140 HP EURO 4 engine ensures reliable performance with no overhaul needed within 500,000 km
5 forward gear manual transmission provides smooth operation on rough terrain
Pneumatic brake system and power steering improve safety and handling
Front, rear, and side spray systems cover a width of at least 14 metres for effective road cleaning
Water cannon range exceeds 28 metres for high tree and vegetation watering
Suction height over 7 metres allows filling from shallow sources
Full tank suction time under 15 minutes reduces downtime between operations
Tank made from 5mm Q235B carbon steel with non-toxic treatment or stainless steel option
Free tank colour and logo application to match client branding

Buyer Profile

Who It Is for

Indonesian municipal water supply departments managing rural distribution
Agricultural cooperatives and irrigation districts needing mobile water transport
Construction companies operating in remote areas without water access
Municipal sanitation departments for street cleaning and dust control
Farmers and agribusinesses requiring on-demand water delivery
Government disaster relief units during drought or flood emergencies
Private contractors supplying water to mining or industrial sites

Operating Problems

Problems It Solves

Lack of permanent water infrastructure in remote or newly developed areas
Long refill cycles due to low-capacity or inefficient water transport vehicles
Inadequate spray coverage for road cleaning with small or poorly designed trucks
Inability to reach water sources with shallow depth or low pressure
Poor durability of lightweight tanks that corrode or leak under frequent use
High maintenance costs from engines that require overhaul before 500,000 km
Limited flexibility in use due to fixed configurations with no spray or pesticide options

Where It Works

Application Scenarios

Rural water supply projects in Indonesia where piped infrastructure is absent
Drought relief operations in remote agricultural communities
Construction site water delivery for concrete mixing and dust suppression
Municipal road cleaning in cities and towns using front, rear, and side spray systems
Irrigation of large farmland areas with water delivered from a central source
Pesticide spraying in crop fields using a retrofit spray system
Watering of high trees and green belts in urban parks and roadside landscaping

Engineering

Technical Features

4x2 HOWO chassis with left or right hand drive configuration
140 HP EURO 4 diesel engine with reliable long-life performance
5 forward and 1 reverse gear manual transmission
Pneumatic braking system for safe operation under load
Power-assisted steering for easier handling in tight spaces
7.50R16 tires with one spare, suitable for mixed road and off-road use
Tank volume of 5000 to 6000 litres (5 to 6 m³) with 5mm Q235B carbon steel construction
Non-toxic internal treatment allows transport of potable water
Suction height over 7 metres for filling from shallow sources
Full tank suction time under 15 minutes for rapid refilling
Front, rear, and side spray systems with a minimum coverage width of 14 metres
Water cannon range of at least 28 metres for high vegetation watering
Self-flow valve, fire joint, and two water pipes included in standard equipment
Maximum speed of 90 km/h for efficient transit between sites

Specifications

Technical Data


Chassis	HOWO 4x2
Engine	140 HP, EURO 4, diesel
Transmission	5 forward & 1 reverse gear
Overall Size	5895 x 1980 x 2350 mm
Gross Vehicle Weight	6495 kg
Curb Weight	3000 kg
Loading Weight	3300 kg
Wheelbase	3360 mm
Tank Volume	5000 - 6000 L (5 - 6 m³)
Tank Material	5mm Q235B carbon steel
Pump Suction Height	>7 m
Full Tank Suction Time	<15 minutes
Spray Width	≥14 m (front/rear/side)
Water Cannon Range	≥28 m
Maximum Speed	90 km/h
Cabin	Left or right hand drive
Brake System	Pneumatic
Steering Gear	Power assisted
Tire Size	7.50R16, 6 pieces + 1 spare
Lead Time	20 days
Shipping Port	China main port
Payment	T/T

Build Materials

Materials

5mm Q235B carbon steel tank with non-toxic internal treatment for potable water
Stainless steel tank available on request for high purity or corrosive water
Aluminium alloy components used in spray system and mounting brackets
Pneumatic brake system with durable rubber hoses and metal fittings
Power-assisted steering rack and pinion for long-term reliability
7.50R16 radial tires with reinforced sidewalls for off-road use

How It Is Built

Manufacturing Process

Chassis is received from Sinotruk and inspected for frame alignment and wheelbase
Tank shell is cut from 5mm Q235B carbon steel and rolled to shape
Internal clapboards are welded in to reduce surge during transit
Tank is pressure tested and non-destructively inspected for leaks
Non-toxic coating is applied inside the tank or stainless steel is installed per request
Pump, suction pipe, and spray system components are fitted and aligned
Front, rear, and side spray nozzles are mounted and tested for flow and coverage
Water cannon is installed on the rear platform and tested for range and stability
Body is painted in standard white or customer specified colour with logo applied free of charge
Final test includes full tank suction, spray pattern, and pump performance before shipment

Testing

Quality Control

Every truck is 100 percent tested before delivery
Tank pressure and leak tests conducted in-house to GB39.5 standards
Non-destructive testing available for pressure vessel projects
Photos and videos of the finished truck sent to the buyer before balance payment
All components meet manufacturer specifications and are traceable
Engine and gearbox performance verified under load before final assembly

Build to Order

Customization Options

Tank volume can be adjusted between 5000 and 6000 litres to match site needs
Tank material can be changed from Q235B carbon steel to stainless steel
Left or right hand drive chassis selected to match local traffic rules
Tank colour and logo applied free of charge to match client branding
Spray system can be upgraded with additional nozzles or high-pressure options
Pesticide spraying system can be added with dedicated pump and tank
Manufacture to customer supplied technical drawings and specifications

Comparison

How It Compares With the Alternatives

3000 gallon water truck with 4x2 chassis and 100 HP engine	Lower power and slower refilling but easier to drive in narrow urban streets
Water truck with 2000 litre tank and no spray system	Cheaper to buy but requires multiple trips and manual watering for large areas
Water tanker built on a 6x4 chassis with 160 HP engine	Higher load capacity and better off-road ability but higher fuel cost and less maneuverable in towns

Operating Notes

Use Guide

Confirm left or right hand drive at order stage to match local traffic regulations
Fill the tank only through the manhole or pump inlet to prevent contamination
Ensure the air breather valve is clear during filling to avoid pressure build-up
Prime the pump at no more than 7 metres suction lift and expect full tank in under 15 minutes
Use the front, rear, and side spray systems with proper nozzle alignment for even coverage
Test the water cannon range and adjust the angle before use in high vegetation areas
Drain the tank and flush the pump after use in freezing conditions to prevent damage

Buyer Questions About This Truck

How long is the lead time for this water truck?

Generally 20 days after the advance payment is received. The exact date depends on chassis availability and customization options.

Can the tank be made from stainless steel?

Yes. The standard tank is 5mm Q235B carbon steel with non-toxic treatment. Stainless steel is available on request. Let us know the water quality and storage duration for confirmation.

What are your payment terms?

T/T with 30 percent deposit and 70 percent before delivery. We send photos and videos of the finished truck before you pay the balance.

Do you supply right hand drive?

Yes. The chassis is ordered in left or right hand drive to match your traffic regulations. Confirm this at order stage as it cannot be changed later.

How is the truck shipped?

By Ro-ro or bulk ship from a China main port. Trade terms can be EXW, FOB, CFR, or CIF.

What warranty and after sales support do you provide?

The whole vehicle is guaranteed for one year and core parts on some products for two years. Our overseas engineers make regular return visits and provide technical training and manuals before delivery.

Can the spray system be upgraded?

Yes. Additional nozzles, high-pressure pumps, or pesticide spraying systems can be added. Provide your operational requirements and we will configure the system accordingly.
