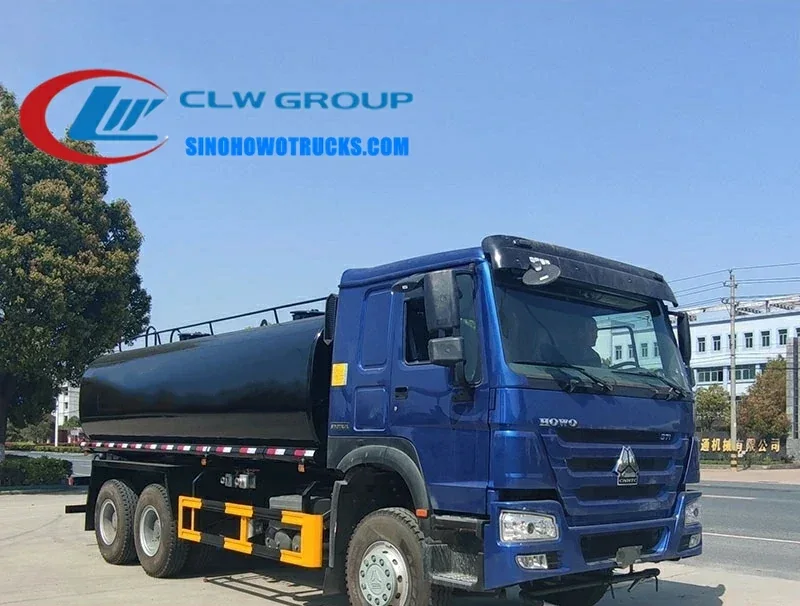

Sinotruk HOWO 6x4 20000 litre stainless steel potable water tanker in Malaysia with rear spray system and high cannon

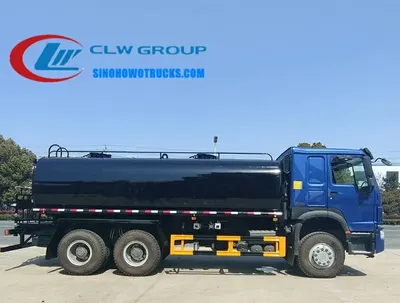

Rear view of the stainless steel water tanker showing the high-pressure water cannon and working platform

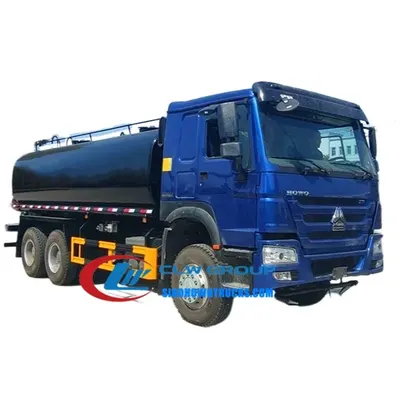

Side view of the water tanker with front, rear and side spray nozzles for road cleaning

Sinotruk Howo 20000liters Stainless steel potable water tanker Malaysia

Name: Sinotruk Howo 20000liters Stainless steel potable water tanker Malaysia
Brand: Sinotruk HOWO

The Sinotruk HOWO 20000 litre stainless steel potable water tanker is built on a 6x4 right hand drive chassis for transporting and supplying safe drinking water in construction, agriculture, drought relief, and municipal water distribution. It is designed for regions where water sources are remote or unreliable and where contamination must be avoided. The tank is made of 304 stainless steel with non-toxic interior treatment, meeting potable water standards for human consumption. The truck can also be equipped with front, rear, and side spray nozzles for road cleaning and high-pressure water cannons for irrigation of trees and crops.

Request A Quote Email Specification

Key Benefits

20000 litre 304 stainless steel tank ensures safe, non-toxic transport of drinking water
6x4 HOWO chassis with 290 HP diesel engine provides strong traction and stability on rough terrain
Right hand drive configuration matches local traffic rules in Malaysia and other right hand drive markets
High capacity water pump enables fast filling and emptying, reducing turnaround time
Rear working platform and high cannon allow for targeted watering of trees and large areas
Spray system with front, rear and side nozzles supports road cleaning and environmental sanitation
10 wheel configuration with 12.00R20 tires improves load distribution and road grip
336 HP engine and 10 speed manual gearbox deliver reliable performance over long distances

Buyer Profile

Who It Is for

Municipal water departments and public works agencies in Southeast Asia and Africa
Construction companies managing large infrastructure projects without on-site water
Agricultural cooperatives and irrigation contractors in drought-prone regions
Emergency response teams during natural disasters and water shortages
Water supply contractors serving remote communities or industrial parks
Environmental sanitation units responsible for street cleaning and dust control

Operating Problems

Problems It Solves

Lack of safe, reliable water transport in areas without piped infrastructure
Contamination risk from carbon steel tanks in drinking water applications
Inadequate water pressure and flow for large-scale irrigation or dust suppression
Poor vehicle stability and traction on unpaved or uneven access roads
Long delivery times due to imported trucks with limited local support
Inflexible equipment layouts that cannot be adapted to local operational needs

Where It Works

Application Scenarios

Drought relief operations in rural communities with no piped water supply
Construction sites requiring consistent water supply for dust suppression and concrete mixing
Agricultural irrigation in remote farmland without access to water mains
Municipal road cleaning and dust control in urban and industrial zones
Water distribution to high-rise buildings or remote villages during emergencies
Irrigation of large-scale plantations, orchards, and forest areas with high water demand

Engineering

Technical Features

304 stainless steel tank with non-toxic interior coating for potable water safety
6x4 HOWO chassis with 290 HP diesel engine and 10 speed manual gearbox
Water pump with high efficiency for rapid filling and emptying
Rear working platform with high-pressure water cannon for tree and crop irrigation
Front, rear and side spray nozzles for road cleaning and dust suppression
Right hand drive configuration for compliance with local traffic regulations
12.00R20 tires with 10+1 spare for long haul and off-road use
Hydraulically damped adjustable driver’s seat and laminated windscreen with integrated aerial
Cab with air conditioning, stereo radio, and heating/ventilation system
Approach angle 16 degrees and departure angle 12 degrees for improved off-road capability

Specifications

Technical Data


Chassis	SINOTRUK HOWO ZZ1257 6x4 right hand drive
Engine	WD615.87, 290 HP, 9.726L, diesel, 6 cylinder, turbo-charged, inter-cooled
Gearbox	10 shift manual
Water Tank Capacity	20000 L
Tank Material	304 stainless steel, non-toxic interior treatment
Pump Type	High efficiency water pump for fast fill and discharge
Cab Model	HW 76, single sleeper, air conditioner, laminated windscreen with casted-in aerial
Driving Type	6x4 right hand drive
Tires	12.00R20, 10+1 spare
Emission Standard	EURO II
Rated Speed	2200 rpm
Front Axle	HF 9
Rear Axle	HC16
Approach Angle	16 degrees
Departure Angle	12 degrees
Lead Time	20 days after advance payment
Shipping Port	China main port

Build Materials

Materials

304 stainless steel tank with non-toxic interior coating for potable water
Aluminium alloy panels for body and side lockers
Stainless steel fittings and valves for pump and tank connections
304 stainless steel piping and nozzles for spray system
Rubber seals and gaskets for tank manhole and access doors
High-strength steel frame and chassis for load-bearing durability

How It Is Built

Manufacturing Process

Chassis is received from Sinotruk and verified against the tank drawing and cab configuration
304 stainless steel tank is cut, formed, and welded with internal support cladding to prevent deformation
Tank undergoes pressure and leak testing before welding and coating
Interior is treated with non-toxic coating and inspected for smoothness and cleanliness
Pump, piping, and spray system are installed and aligned with the driveline
Rear working platform, high cannon, and side nozzles are mounted and tested
Body panels and lockers are assembled and secured to the subframe
Cab is fitted and connected to the chassis with full electrical and hydraulic integration
Vehicle is painted in fire service red or customer specified colour, with logo applied free of charge
All systems are tested on the factory apron including pump flow, spray pattern, and tank integrity

Testing

Quality Control

Every truck is 100 percent tested before delivery
Tank pressure tested to 0.2 MPa and inspected for leaks
Non-destructive testing available for pressure vessel projects
Photos and videos of the finished truck are sent to the buyer before balance payment
All components comply with GB39.5 general specification for water tankers
Pump performance and spray pattern tested under full load conditions
Electrical and hydraulic systems checked for continuity and function

Build to Order

Customization Options

Tank capacity can be adjusted to meet specific water volume requirements
Tank material can be changed from 304 stainless steel to other grades on request
Right or left hand drive chassis available based on local traffic rules
Tank colour and logo applied free of charge to match client branding
Spray system can be modified with different nozzle types and spray patterns
Additional equipment such as water meters, level indicators, or automatic fill systems can be added

Comparison

How It Compares With the Alternatives

20000 L carbon steel water tanker	Lower cost but not suitable for potable water due to corrosion and contamination risk
15000 L smaller tanker	Less water per trip but better maneuverability in tight urban areas
Water truck with only rear spray	Limited to rear cleaning; lacks front and side spray for full road coverage

Operating Notes

Use Guide

Confirm right hand drive configuration at order stage as it cannot be changed after production
Fill the tank only through the manhole or pump inlet to prevent contamination
Use the non-toxic interior coating to maintain water quality over long storage periods
Operate the spray system only after checking all nozzles and valves are clear
Drain the tank and flush the system after use in high-sediment or chemical water
Schedule regular maintenance on the pump and spray nozzles to prevent clogging

Buyer Questions About This Truck

How long is the lead time for this water tanker?

Generally 20 days after receiving the advance payment. The exact date depends on chassis availability and equipment configuration.

Can the tank be made from carbon steel instead of stainless steel?

No. The standard tank is 304 stainless steel for potable water. Carbon steel is not suitable for drinking water applications due to corrosion and contamination risk.

What are your payment terms?

T/T with 30 percent deposit and 70 percent before delivery. We send photos and videos of the finished truck before you pay the balance.

Do you supply left hand drive?

Yes. The chassis is ordered in left or right hand drive to match local traffic rules. Confirm this at order stage as it cannot be changed later.

How is the truck shipped?

By Ro-ro or bulk ship from a China main port. Trade terms can be EXW, FOB, CFR, or CIF.

What warranty and after sales support do you provide?

The whole vehicle is guaranteed for one year and core parts for two years. Our overseas engineers make regular return visits and provide technical training and manuals before delivery.

Can the spray system be customized?

Yes. Send us your spray pattern requirements and nozzle layout, and we will configure the system accordingly.
