L-2A-10M
The L-2A-10M is a cross-type laser light for cutting machines, delivering a 10 by 10 meter laser grid at installation heights of 1.5 to 2 meters. It operates on 85-265V input, so it works on both 110V and 220V systems without a voltage switch. The laser is available in red or green and can be mounted with a magnet base or screws. The 10*10M grid covers a large area, making it suitable for aligning fabric, guiding cutting paths, and verifying machine positioning across wide work surfaces. The compact size of the laser unit allows it to fit on tight machine heads without interfering with operation.
Send us this model number and your quantity. We reply within one working day.
Technical Data
| Model | L-2A-10M |
|---|---|
| Product | Sewing machine laser light |
| Input Voltage | 85-265V |
| Laser Color | Red / Green |
| Laser Shape | Cross Type |
| Laser Length | 10*10M (at installation height 1.5M-2M) |
| Laser Unit Size | φ16*70mm |
| Mounting Options | Magnet Base / Screw installation |
| Plug Type | EU plug / US plug |
Why Buyers Choose This Model
Key Benefits
- 10*10M cross laser grid covers a large area for accurate alignment on wide cutting tables
- 85-265V input allows use on both 110V and 220V systems without voltage conversion
- Red or green laser color improves visibility under different lighting conditions
- Magnet base or screw installation offers flexible mounting options for different machine types
- Cross-type laser shape provides two intersecting lines for precise centering and alignment
- Compact size of φ16*70mm unit fits on tight machine heads without obstruction
Problems It Solves
- Manual alignment of fabric on large cutting tables leads to misalignment and material waste
- Lack of visible guidance causes inconsistent cuts when operators work under varying light conditions
- Different voltage systems in one factory require separate laser models, increasing spare parts inventory
- Fixed laser units that cannot be repositioned or remounted limit flexibility during machine setup
- Small or poorly visible laser dots fail to guide operators across wide cutting surfaces
Who It Is For
- Garment factory production supervisors aligning cutting tables across large work areas
- Cutting machine operators needing visual guidance for fabric placement
- Sewing machine dealers adding laser lights as a value-added accessory
- Factory maintenance teams replacing or upgrading laser alignment systems
- Importers sourcing a single model for multiple international markets with different voltages
Where It Is Used
- Cutting tables in garment factories where fabric alignment must be exact across a 10-meter span
- Industrial cutting machines operating under mixed 110V and 220V power supplies across different production zones
- Machine setup and calibration stations where operators need a visible grid to check positioning
- Factories using multiple cutting machines with different mounting configurations
- Sewing machine dealers installing laser guides as an accessory during machine commissioning
Technical Features
- Cross-type laser shape with 10*10M coverage at 1.5M-2M installation height
- 85-265V input voltage range for universal power compatibility
- Red or green laser color for improved visibility
- Magnet base or screw mounting for flexible installation
- Compact laser unit size of φ16*70mm
Materials
- Laser emitter module with precision optics for cross-shaped beam
- Metal housing with anti-vibration mounting features
- Magnetic base with strong permanent magnets for secure attachment
- Screw mounting hardware included for fixed installation
- Plastic or rubberized casing on the laser head for impact resistance
Quality Control
- Every lamp receives a 2-hour high-voltage test before it leaves the facility
- LED chips are sourced from world-known brands rather than unbranded stock
- Laser output is checked for correct shape, color, and coverage at specified height
- Mounting base function is tested under load to ensure secure hold
- Visual check of the housing, cable, and plug before packing
Customisation Options
- OEM logo on the laser housing or mounting base
- Cable length and plug type to match the destination market
- Custom packaging for private label or bulk distribution
- Alternative mounting brackets for specific machine models
How To Use It
- Mount the laser on the machine head or cutting table using the magnet base or screws
- Position the unit so the laser grid projects clearly across the work surface at 1.5M-2M height
- Select red or green laser color based on ambient lighting and operator preference
- Ensure the power supply voltage is within the 85-265V range before use
- Clean the laser lens with a soft dry cloth if dust or smudges reduce visibility
How It Is Made
Laser module assembly and alignment
Housing and mounting bracket fitting
Cable and plug integration with EU or US standard
Functional testing of laser output and mounting stability
Final inspection and packing
How It Compares

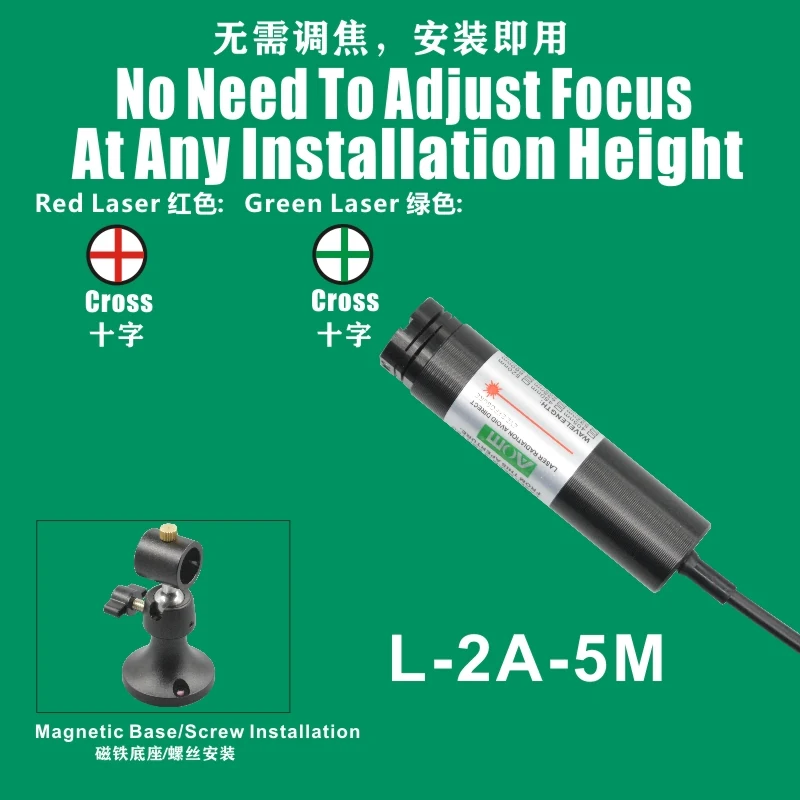

| L-2A-5M Cross Type 5*5M | The L-2A-10M covers twice the area in both directions, making it better for large cutting tables. The L-2A-5M is suitable for smaller workspaces or tighter machine setups. |
|---|---|

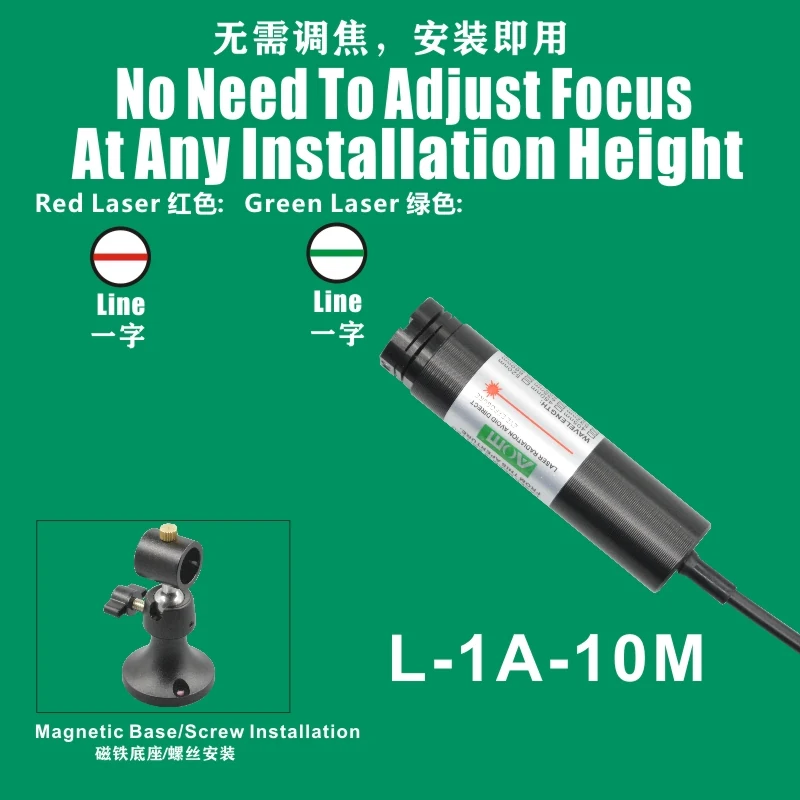

| L-1A-10M Line Type 10M | The L-2A-10M provides a cross grid for centering and alignment, while the L-1A-10M gives a single line for edge guidance. The cross type is better for positioning fabric at the center of a table. |
| Fixed laser guide on machine head | The L-2A-10M's magnet base allows quick repositioning and removal, unlike fixed mounts that require tools to adjust or replace. |
Industries Using This Product
Questions About This Product
Can the L-2A-10M run on both 110V and 220V systems
Yes. The input voltage range is 85-265V, so it works on both 110V and 220V systems without a voltage converter.
What is the size of the laser unit
The laser unit measures φ16*70mm.
How large is the laser grid at 1.5M-2M height
The laser grid covers 10 meters by 10 meters at installation heights of 1.5 to 2 meters.
Can I choose between red and green laser color
Yes. The L-2A-10M is available in both red and green laser colors.
What mounting options are available
The laser can be mounted using a magnet base or screws, depending on the machine setup.
Can we have our logo on the laser unit
Yes. We offer OEM versions with your logo on the laser housing or mounting base.
