PP & PVC Filter Housings
PP & PVC Filter Housings Liquapure PP or PVC bag filter housing featured in injection molded, true union connections for easy installations. The materials are robust and offers high chemical resistance. The housings are available in #1, #2.
- Range
- Filter Housings
- Supplier
- Shanghai Liquapure Filtration Co., Ltd, Shanghai, China
- Customisation
- Micron rating, length and end cap specified to your housing
- Photographs on file
- 1
Details
Full Description

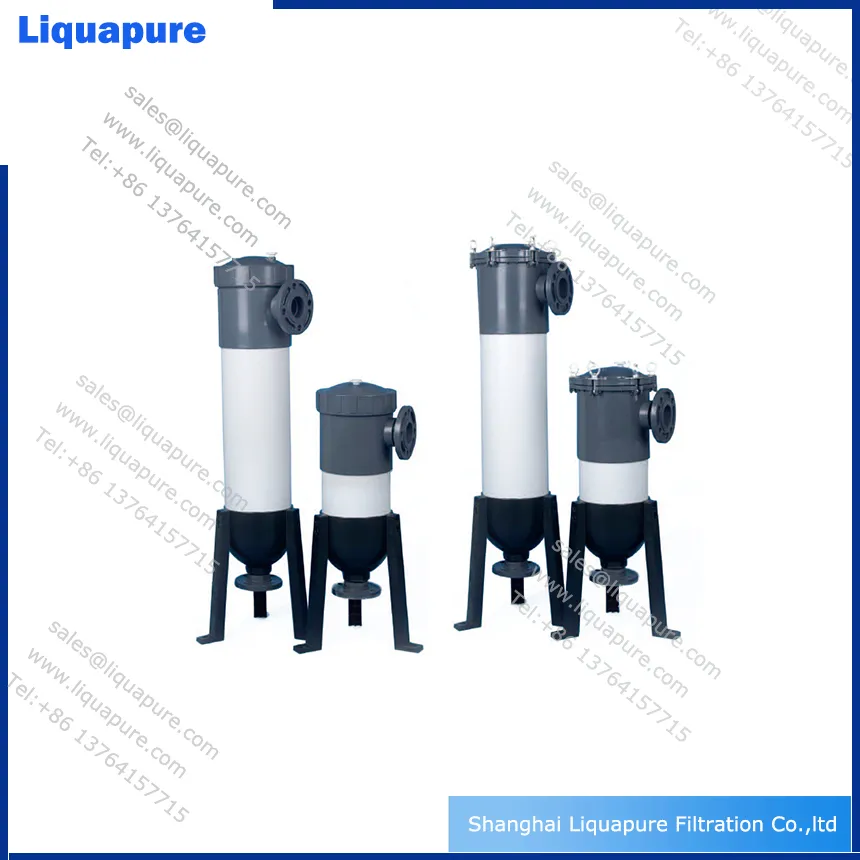

PP & PVC Filter Housings
Liquapure PP or PVC bag filter housing featured in injection molded, true union connections for easy installations. The materials are robust and offers high chemical resistance. The housings are available in #1, #2 bags and Pall high flow filters. Multi-bag filter housings are available in PP material
PVC bag filters
PP bag filter housings
Features
- PVC, PP for chemical resistance
- Light weight, High strength
- Option with clamp and swing closure
- Available for #1, #2 bags and Pall Ultipleat filters
Applications
- Sea water, desalination
- Acids, alkali solvents
- Food and beverage
- Coating and paint
Operating Parameters
- Max. Temperature: 45 ℃
- Max. Pressure: Swing bolt @ 6 bar
- Clamp @ 4 bar
Ordering Information:
| Code | Bag Size | Bags | Closure | Max. Pressure | Inlet/outlet |
| CBH | #1 | 1 | Clamp | 0.4 Mpa | 1.5″ |
| #2 | Swing Bolt | 0.6 Mpa | 2″ | ||
| PBH | #5 | 1 | Swing Bolt | 0.6 Mpa | 2″ |
| #2 | 1-4 |
FAQ
Questions About This Product
Will this fit my existing housing
Send us the housing brand and model, or the part number of the element you are replacing, and we will confirm what matches. The high flow line already covers 3M, Pall, Parker and Pentair equivalents.
Which micron ratings and lengths are available
Micron rating, length and end cap are specified per order. Tell us the duty and the housing and we will confirm what we can supply.
What is the production capacity
Spun filters 360,000 pieces, wound filters 100,000 pieces, pleated filters 8,000 pieces and high flow filters 1,000 pieces per day.
Which industries is this used in
Food and beverage, chemical, pharmaceutical, electronics and water treatment, among other filtration related industries.
How do I get a quotation
Call +86 137 6415 7715 with the specification and the quantity you need.
