Plastic Filter Housings | Liquapure Filtration

Plastic Filter Housings PP filter housings 20 blue filter housings 20“ filter housings Applications: Home drinking water Whole-house Filtration Point of entry filtration RO Pretreatment Commercial Applications Products Features: 5″ ,.

Range: Filter Housings
Type: Plastic Filter Housings
Supplier: Shanghai Liquapure Filtration Co., Ltd, Shanghai, China
Customisation: Micron rating, length and end cap specified to your housing
Photographs on file: 1

Call +86 137 6415 7715 Contact Details

Details

Full Description

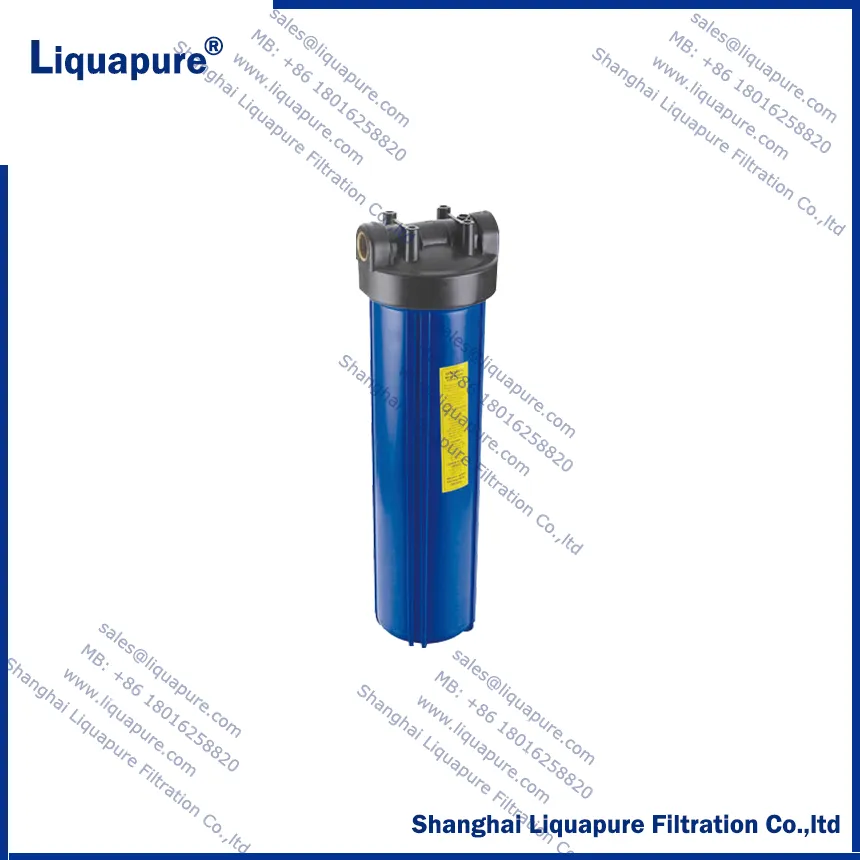

Plastic Filter Housings

PP filter housings

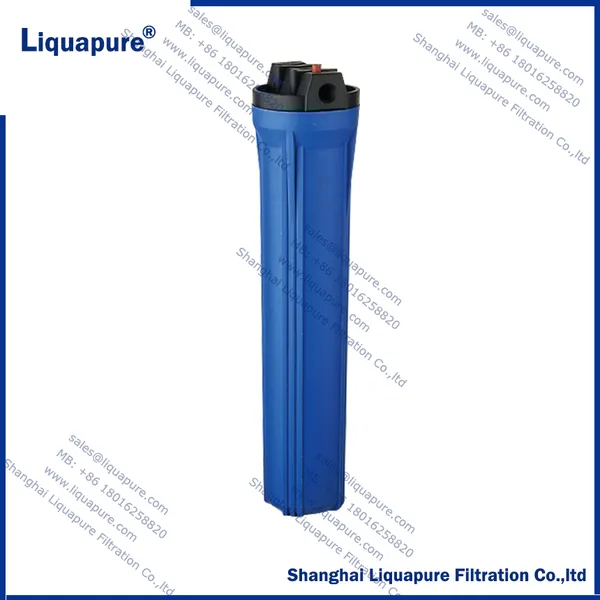

20 blue filter housings

20“ filter housings

Applications:

Home drinking water
Whole-house Filtration
Point of entry filtration
RO Pretreatment
Commercial Applications

Products Features:

5″ , 10″ , 20″ are available in opaque and clear bowls
Optional pressure release button
Accepts up to 4- 1/2″ diameter cartridges
Wide chemical compatibility using Polypropylene and ABS construction
Easy installation by threads

Option Conditions:

Max. Temperature	80℃
Recommended Temperature	≤45℃
Max.Working Pressure	8 bar
Recommended Working Pressure	≤6 bar

Specifications:

Color			Blue	White	Clear
Material	Head		Polypropylene	Polypropylene	Polypropylene
	Bowl		Polypropylene	Polypropylene	ABS
Threads Connections	Material		Platic or Copper
	size	Normal	1/2″, 3/4″
		Big-Blue	3/4″ , 1″ , 1-1/2″
Lengths			5″, 10″, 20″

Ordering Information:

Model	Length	Diameter	Color	Threads Options	Connection Size
Plastic Housing	5inch	Normal Big Blue	Blue	Plastic Copper	3/4″ , 1″ , 1-1/2″
	10inch		White
	20inch		Clear

FAQ

Questions About This Product

Will this fit my existing housing

Send us the housing brand and model, or the part number of the element you are replacing, and we will confirm what matches. The high flow line already covers 3M, Pall, Parker and Pentair equivalents.

Which micron ratings and lengths are available

Micron rating, length and end cap are specified per order. Tell us the duty and the housing and we will confirm what we can supply.

What is the production capacity

Spun filters 360,000 pieces, wound filters 100,000 pieces, pleated filters 8,000 pieces and high flow filters 1,000 pieces per day.

Which industries is this used in

Food and beverage, chemical, pharmaceutical, electronics and water treatment, among other filtration related industries.

How do I get a quotation

Call +86 137 6415 7715 with the specification and the quantity you need.
