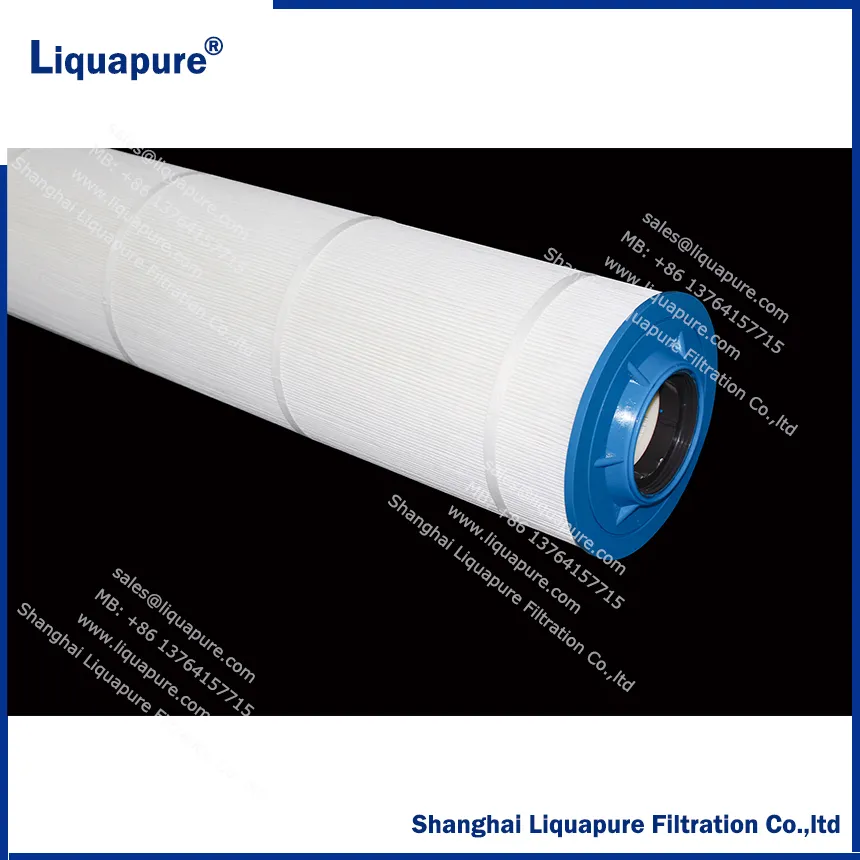

HFSP Series High Flow Filter Cartridges

HFSP Series High Flow Filter Cartridges HFSP series high flow cartridge filter is an alternative to Harmsco Hurrican cartridge. It is designed with 7.75” diameter and pleated pattern for large surface area and high flow capacity. Swimming.

Range: Filter Cartridges
Type: Depth pleated Filter Cartridges
Supplier: Shanghai Liquapure Filtration Co., Ltd, Shanghai, China
Customisation: Micron rating, length and end cap specified to your housing
Photographs on file: 1

Call +86 137 6415 7715 Contact Details

Details

Full Description

HFSP Series High Flow Filter Cartridges

HFSP series high flow cartridge filter is an alternative to Harmsco Hurrican cartridge. It is designed with 7.75” diameter and pleated pattern for large surface area and high flow capacity.

Swimming pool filter cartridges

Features

Fewer change-out, lower maintenance cost
Pleated surface area provides higher loading capacity
Thermally bonded for added strength

Dimensions

Outer Diameter: 7.75” (197mm)
Length: 9.625” (245mm)
19.5” (495mm)
30.75” (781mm)

Materials of Construction

Core: Polypropylene
Media: PET

Operating Parameters

Max. Temperature: 60℃
Max. Differential Pressure: 3.5 bar @ 21℃
Recommend Change-out：2.4 bar

Ordering Information e.g.: HFSP-5-30.75-E

Code

Micron

Length

Media

HFSP

10,

9.625”

19.5”

30.75”

E=PET

P=PP

FAQ

Questions About This Product

Will this fit my existing housing

Send us the housing brand and model, or the part number of the element you are replacing, and we will confirm what matches. The high flow line already covers 3M, Pall, Parker and Pentair equivalents.

Which micron ratings and lengths are available

Micron rating, length and end cap are specified per order. Tell us the duty and the housing and we will confirm what we can supply.

What is the production capacity

Spun filters 360,000 pieces, wound filters 100,000 pieces, pleated filters 8,000 pieces and high flow filters 1,000 pieces per day.

Which industries is this used in

Food and beverage, chemical, pharmaceutical, electronics and water treatment, among other filtration related industries.

How do I get a quotation

Call +86 137 6415 7715 with the specification and the quantity you need.
