GPT Series Fiberglass Pleated Cartridge Filters
GPT Series Fiberglass Pleated Cartridge Filters GPT series pleated filter cartridges adopt PP combined micro fiberglass as media for removal of colloid, grease, glair and other high particles contained solutions. The fiberglass will not.
- Range
- Filter Cartridges
- Supplier
- Shanghai Liquapure Filtration Co., Ltd, Shanghai, China
- Customisation
- Micron rating, length and end cap specified to your housing
- Photographs on file
- 1
Details
Full Description

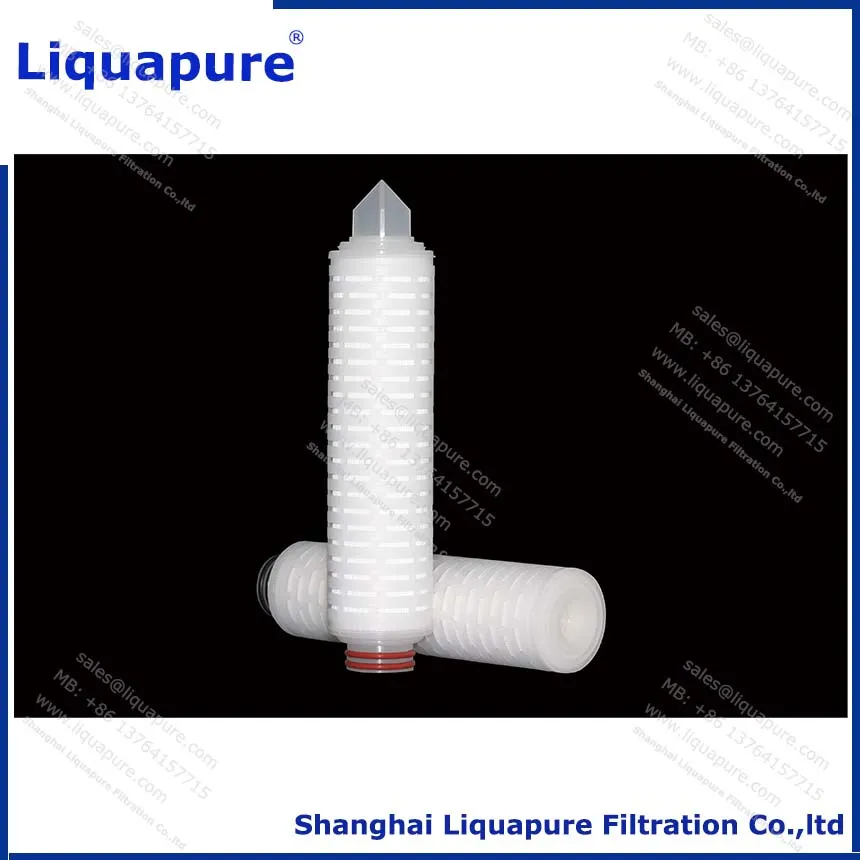

GPT Series Fiberglass Pleated Cartridge Filters
GPT series pleated filter cartridges adopt PP combined micro fiberglass as media for removal of colloid, grease, glair and other high particles contained solutions. The fiberglass will not easily transform pore size, even if under high pressure, this ensure the high dirt holding capacity and filtration efficiency.
Filter cartridges pp
Dimensions
- Outer Diameter: 55mm, 62mm, 64mm, 68mm
- Length: 5”~60”
Materials of Construction
- Media: Fiberglass
- Support: PP
- Core/cage/cap: PP
Operating Parameters
- Max. Temperature: 80℃
- Max. Differential Pressure: 4 bar@21℃
- 2.4 bar@80℃
Ordering Information e.g.: GPT-0.2-10-7-S
| Code | Micron | Length | Core | Adapter | O-ring |
| GPT | 0.1, 0.2
0.45, 1 5,10… |
5”, 10”
20”,30” 40”… |
PP
SS304
|
0=DOE
2=226/flat 3=222/flat 7=226/fin 8=222/fin |
B=Buna
S=Silicone E=EPDM V=Viton |
FAQ
Questions About This Product
Will this fit my existing housing
Send us the housing brand and model, or the part number of the element you are replacing, and we will confirm what matches. The high flow line already covers 3M, Pall, Parker and Pentair equivalents.
Which micron ratings and lengths are available
Micron rating, length and end cap are specified per order. Tell us the duty and the housing and we will confirm what we can supply.
What is the production capacity
Spun filters 360,000 pieces, wound filters 100,000 pieces, pleated filters 8,000 pieces and high flow filters 1,000 pieces per day.
Which industries is this used in
Food and beverage, chemical, pharmaceutical, electronics and water treatment, among other filtration related industries.
How do I get a quotation
Call +86 137 6415 7715 with the specification and the quantity you need.
