SCA Armed Lift Cartridge Filter Housings
SCA Armed Lift Cartridge Filter Housings SCA series stainless steel cartridge filter housings are designed for heavy duty industrial water applications for high flow rate. The armed lifting head is for easy and quick change-out. SS filter.
- Range
- Filter Housings
- Supplier
- Shanghai Liquapure Filtration Co., Ltd, Shanghai, China
- Customisation
- Micron rating, length and end cap specified to your housing
- Photographs on file
- 1
Details
Full Description

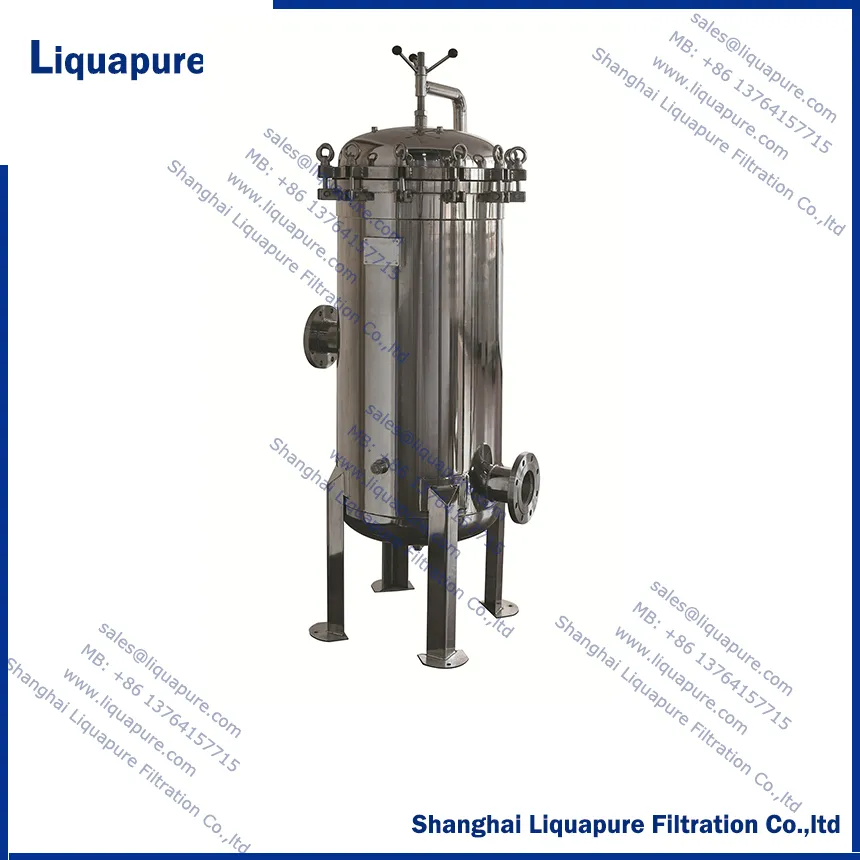

SCA Armed Lift Cartridge Filter Housings
SCA series stainless steel cartridge filter housings are designed for heavy duty industrial water applications for high flow rate. The armed lifting head is for easy and quick change-out.

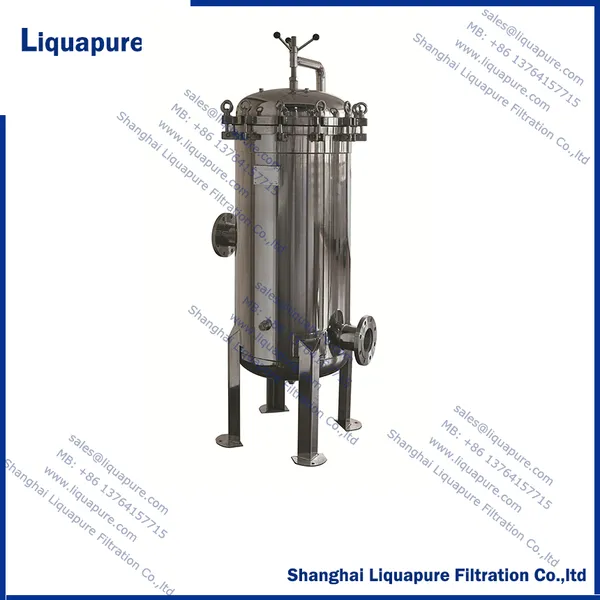

SS filter cartridge housings
Features & Benefits
- swing bolt closure and armed lifting for quick and easy cartridge change out and secure sealing
- Hold 27~160 cartridges for 30″ or 40″ length for choice of high flow rates
- Accept both SOE 222 and DOE cartridges.
- Heavy duty legs for high capacity flow rates
Specifications & Operating Parameters
- Max. Pressure: 150 psi
- Inlet/Outlet: Flanged
- Finish: Polished or sand blast
Ordering information
e.g.: SCA-27-40-S4-4-A-E
| Code | Filters | Length | Material | Flange | O-rings | |
| SCA | 15
20 27 30 … 160 |
30
40 |
S4=SS304
S6=SS316L |
2”
3” 4” 5” … 10” |
A=ANSI
D=DIN J=JIS |
B=Buna
E=EPDM S=Silicone V=Viton |
FAQ
Questions About This Product
Will this fit my existing housing
Send us the housing brand and model, or the part number of the element you are replacing, and we will confirm what matches. The high flow line already covers 3M, Pall, Parker and Pentair equivalents.
Which micron ratings and lengths are available
Micron rating, length and end cap are specified per order. Tell us the duty and the housing and we will confirm what we can supply.
What is the production capacity
Spun filters 360,000 pieces, wound filters 100,000 pieces, pleated filters 8,000 pieces and high flow filters 1,000 pieces per day.
Which industries is this used in
Food and beverage, chemical, pharmaceutical, electronics and water treatment, among other filtration related industries.
How do I get a quotation
Call +86 137 6415 7715 with the specification and the quantity you need.
