Isuzu 100P double cabin small mining dump truck
ISUZU left-hand drive double cabin chassis 3m3 tipper trucks, Mid-mounted double-top hydraulic cylinder, optional front lifting cylinder. 98HP diesel engine.

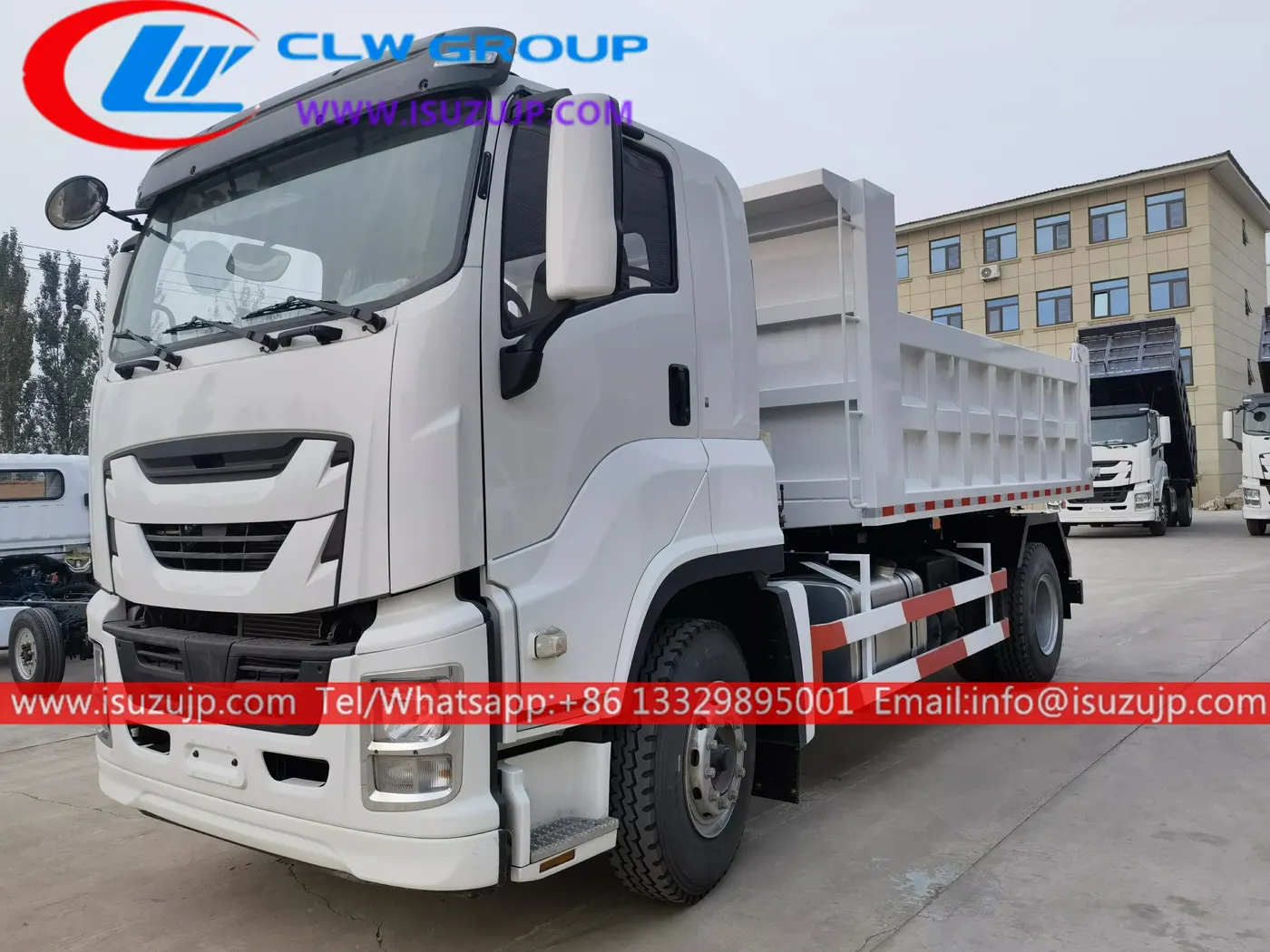

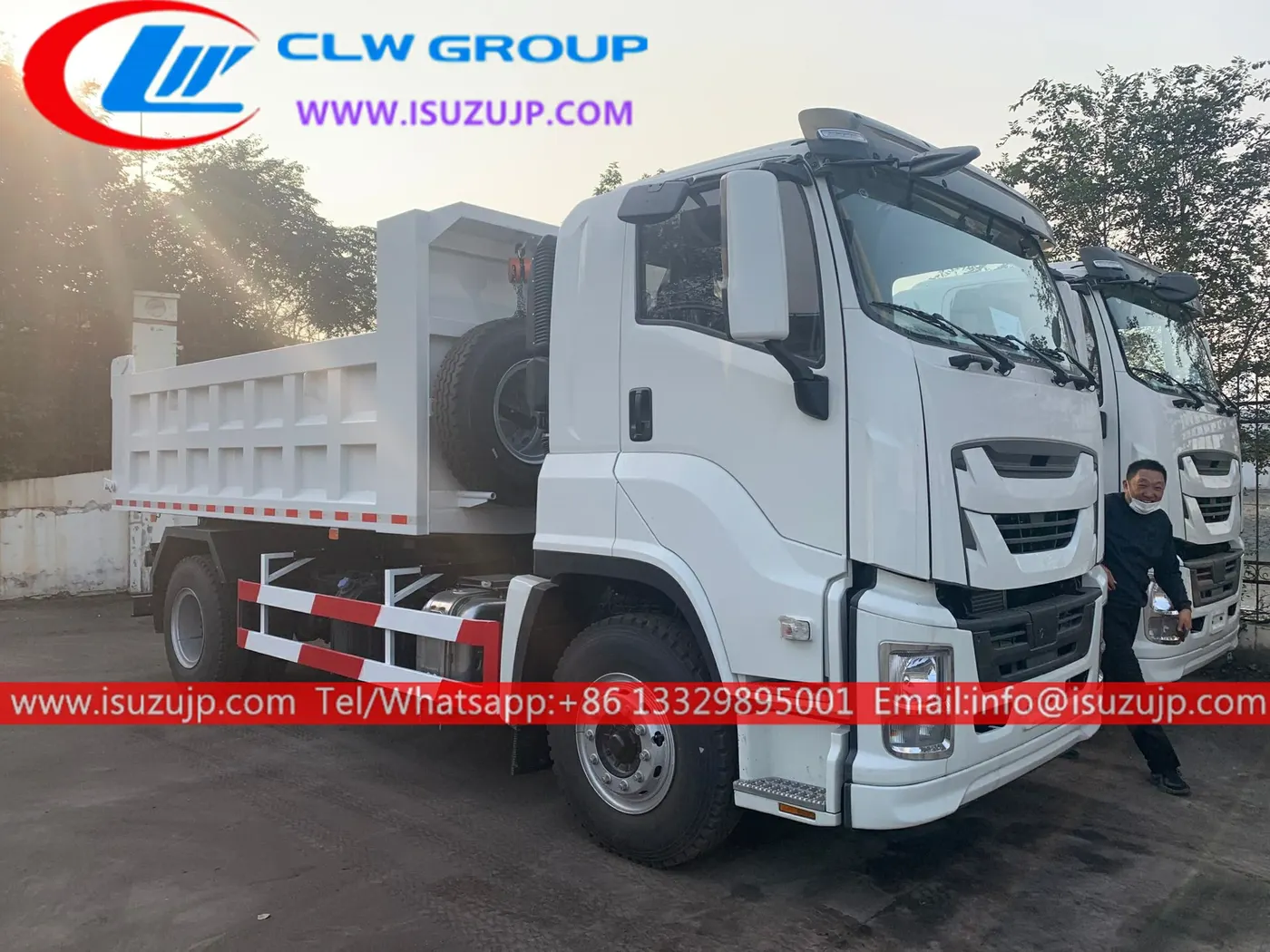

ISUZU GIGA 15 cube single axle dump truck for sale
ISUZU GIGA left-hand drive chassis 15 ton tipper trucks, HYVA lifting as optional. 300HP diesel engine.
| Overall size | 7800X2500X2980 mm |
|---|---|
| Tank / body volume | 200L |
| Engine | ISUZU GIGA |
| Drive | 4×2 |
| Lead time | 20 Days |
| Origin | China ChengLi tank color and Logo |
| Payment | T/T |
| Shipping port | China Main Port Lead Time |
| Product Origin | China ChengLi tank color and Logo: Free Truck Size: 7800X2500 |
| Shipping Port | China Main Port Lead Time: 20 Days Payment: T/T Delivery Time |
| SUZU dump truck Specification | Chassis Dimensions and Parameters ITEM ISUZU GIGA 15 cube sin |
| Wheelbase | 4500mm Front/ Rear Wheel Distance: 2060/1855mm Front/Rear Sus |
Figures in the table are taken from this product’s original listing. Missing values are not estimated.
What this body is for
ISUZU GIGA 15 cube single axle dump truck Description: Isuzu single axle dump truck also called dump truck, dump tipper, side-turn tipper, dump truck tipping, dumper, tip truck, tipper lorry. is a truck used for transporting loose material, such as sand, gravel, coal, dirt, etc. ISUZU dump truck is equipped with an open-box bed, which is hinged at the rear and equipped with hydraulic pistons to lift the front. Or hinged at side with hydraulic pistons to lift the side. Advantage: ISUZU GIGA heavy duty chassis, perfect performance 6HK1 engine, super powerful; reliable performance, no overhaul within 100,000 km. Payloading from 20ton to 100 tons. Easy operation and easy maintenance. Virious types of tipper body are available. High strength box body Excellent Chinese brand hydraulic piston Strong, durable, perfect performance ISUZU dump truck Specification: Chassis Dimensions and Parameters ITEM ISUZU GIGA 15 cube single axle dump truck for sale Overall Dimension(L x W x H) 7500×2500x3040mm Wheelbase: 4500mm Front/ Rear Wheel Distance: 2060/1855mm Front/Rear Suspension 1335/1735mm Rear Axle Ratio: 5.571 Approach/Departure angle: 17/22° Leaf Spring: 7+6/8 Weights and Capacities Curb Weight: 7500kg GVW: 18000kg Axle Loads: 6500/11500kg Engine Engine Model: 6HK1-TCG61 EURO VI Cylinder: 6 Max output: 175Kw Displacement: 7790ml Horsepower: 240Ps Exhaust Gas Treatment Technology： DPF+SCR
Commercial terms on the factory FAQ
- Payment: T/T 30% deposit, 70% before delivery
- Incoterms: EXW, FOB, CFR, CIF
- Ship: Ro-Ro, bulk or container
- Warranty: 1 year vehicle; 2 years on listed core parts
