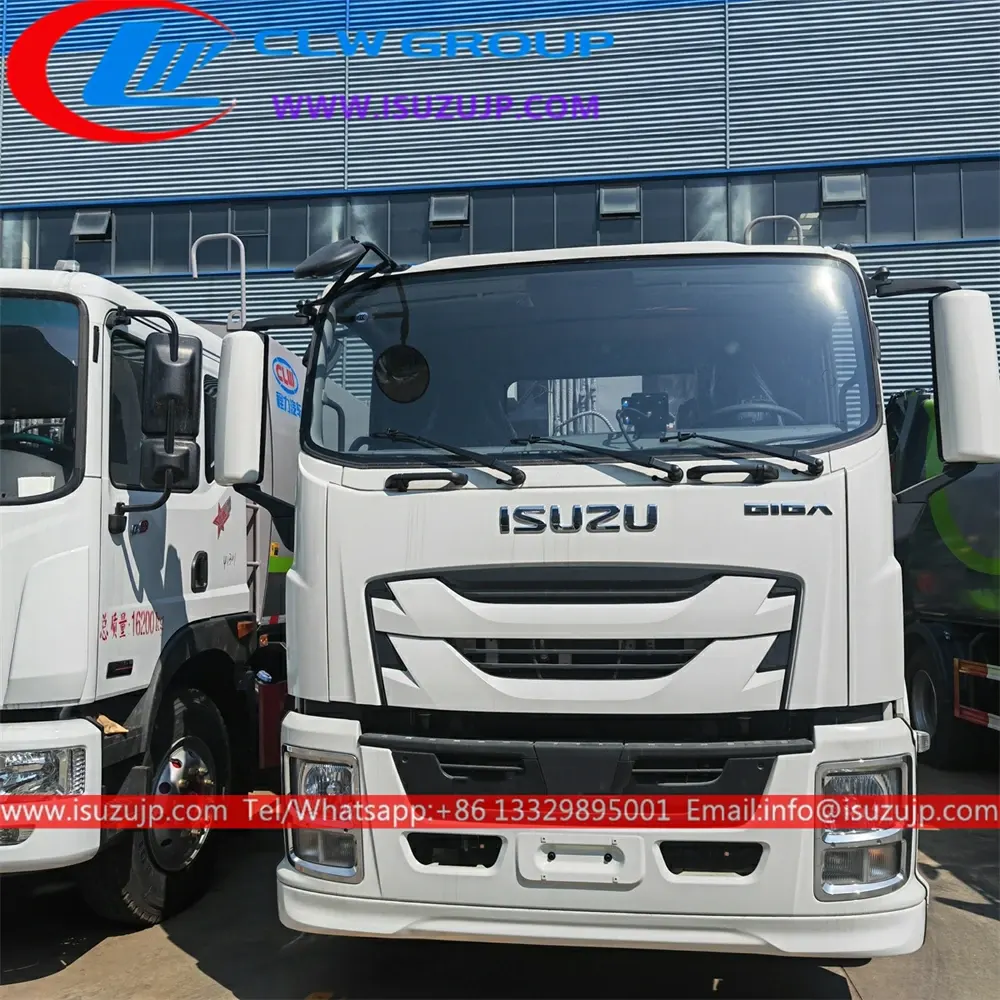

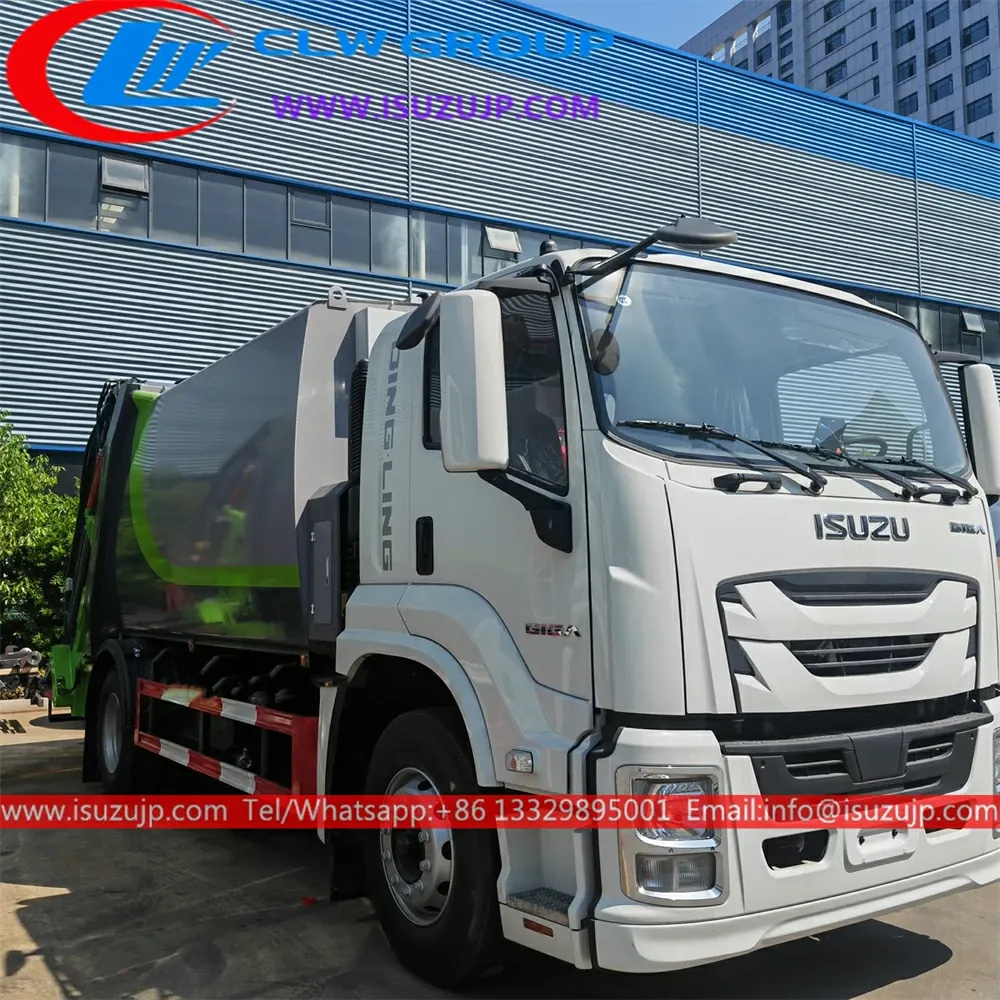

ISUZU GIGA 12cbm Refuse Compactor Truck

What this body is for

The Isuzu GIGA 12 cubic meter (cbm) refuse compactor truck is designed for efficient waste collection and compaction, suitable for urban and suburban environments. Combining the robust Isuzu GIGA chassis with a high-capacity compactor body, this truck offers durability, reliability, and high performance for waste management operations. SPECIFICATION Truck Specification Product Name ISUZU GIGA 12 CU.M Refuse Garbage Compactor Truck Truck Manufacturer CEHNGLI GROUP Overall dimensions (L×W×H) About 8000*2500*3500mm Chassis Specification Cabin ISUZU GIGA,with A/C Drive type 4×2 wheelbase 4500 Fuel type of engine Diesel Engine Model 4hk11-TCG61 Maximum horse power 205HP Number of cylinders 4 Emission standard Euro 4 5 6 Gear box Type Manual,12 forward & 2 rear Tyres Size 295/80R22.5 Quantity 10+1 spare tire Upper body specification Waste Tank Capacity 12 M3 / 12,000Liters /12 CBM /12 CU.M Tank Material 5mm Q235 Carbon steel Function 1.Can choose 240L(single bin, double bins)and turnover device(plastic or steel garbage bin), can also choose ground hopper ,swing arm device or other kinds of loading device. 2.With manual and automatic two sets of control method, the operator can control in the cabin, in the middle side or the back of the truck , very convenient and efficient. With working device of emergency braking stop button. 3.Garbage body use frame design, elegant, strong structur

Commercial terms on the factory FAQ

• Payment: T/T 30% deposit, 70% before delivery
• Incoterms: EXW, FOB, CFR, CIF
• Ship: Ro-Ro, bulk or container
• Warranty: 1 year vehicle; 2 years on listed core parts
