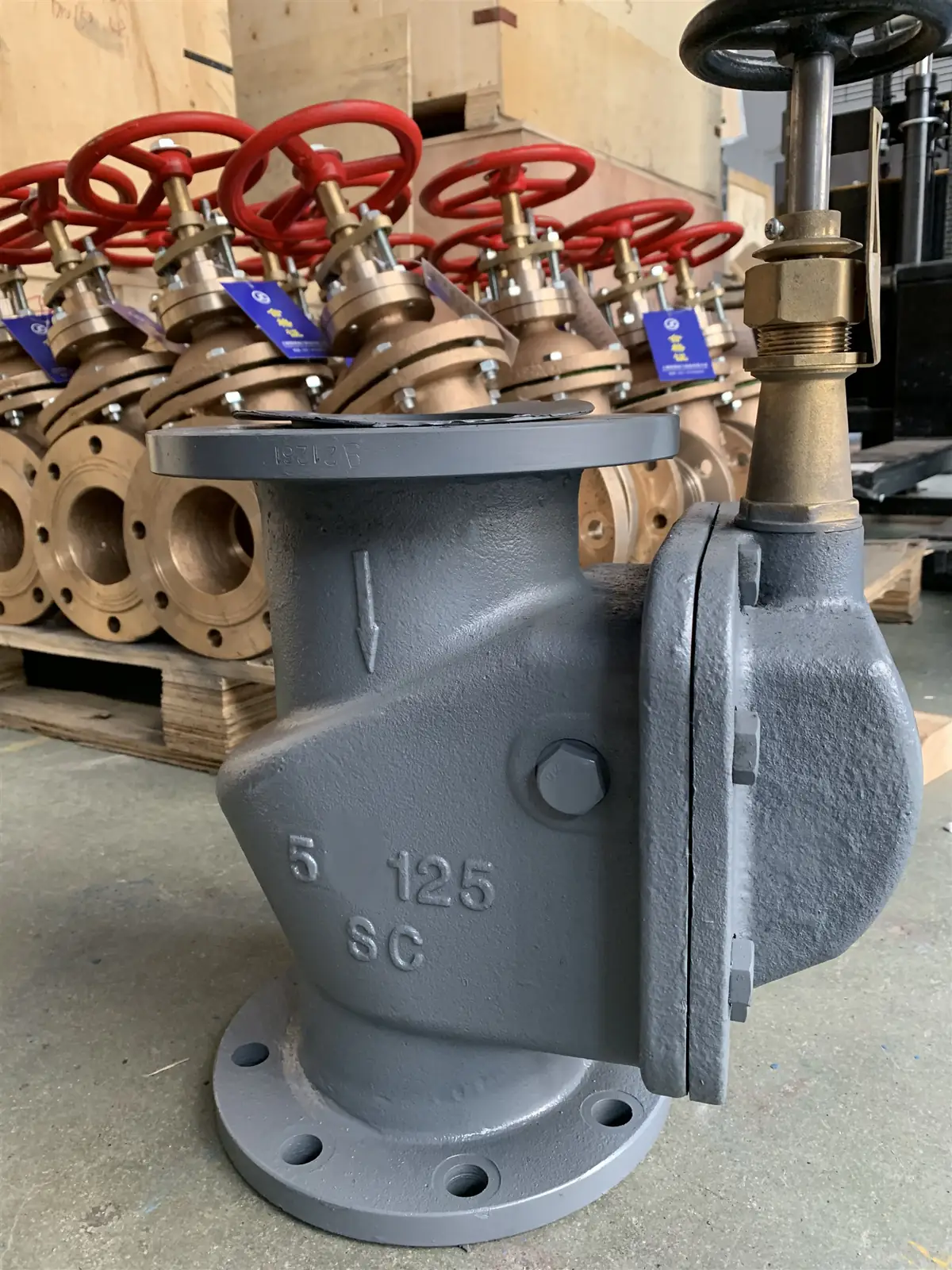

Storm Valve in ship marine Bronze/Steel/Copper/brass storm valve angle type Vertical type with handle

Application

Storm Valves in ship Marine Bronze/Steel/Copper/brass storm valves angle type Vertical type with handle Marine Jis Bronze/Steel/Copper Straight Closed Vertical Closed Storm Valve for Ship/Vessel/Boat What’s more The Valve is carefully polishing and testing before leaving factory to ensure the performance. Copper&Bronze/Steel/brass material has longer service life for your pipes&vessel. Due to the limitation of the valve seat, there are also requirements in the installation. First of all, it should not be installed reversely, Secondly, if the design needs vertical installation, it can not be installed horizontally. Otherwise, it will be inconvenient to open or loose to close due to the self weight of the inner tongue plate. The anti wave valve is used to discharge sewage or waste water, and can automatically close and prevent the back flow of outboard water. All of our storm valves have ready stock. Sample Drawing: Specification: DN(mm) Structure Dimension(mm) Thickness Lift Range(m) Weight(KG) H H1 H2 H3 L L1 L2 Steel Bronze D D1 D2 b d0 Cast Steel-A Cast Steel-B Bronze-A Bronze-B 50 210 170 360 327 135 90 100 7.5 5 135 103 84 13 15 40 12 13 10 11 65 240 200 385 342 142 110 110 8.0

Tell us vessel type, chain or opening size, voltage or hydraulic preference, and the class society. Star Marine will confirm the model, shop-test the unit, and pack it for sea or air freight.

Warranty and documents

One year warranty after the cargo arrives at the vessel, with installation guidance and spare-parts support. Where a product card lists a longer deck-machinery warranty, that period applies to that line. Product certificates under ABS, BV, CCS, DNV, GL, LR or RINA can be arranged; BV and CCS are the most commonly requested.
