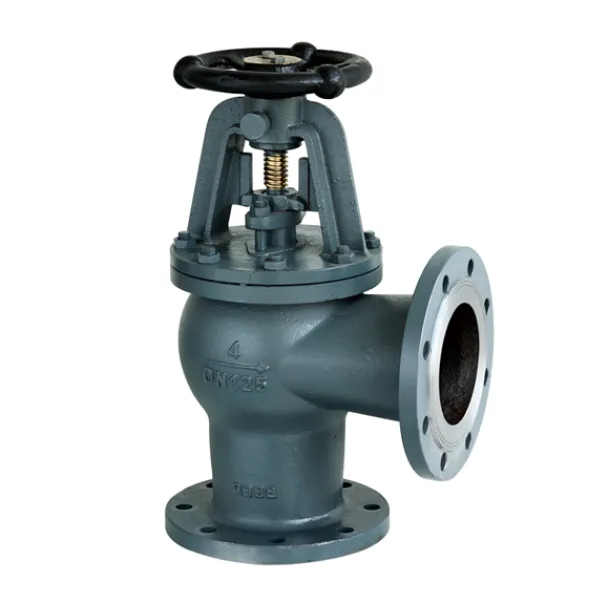

Sea Suction Valve Bronze/Stainless Steel/Copper Marine Suction Sea valve in Ship/Vessel/Boat

Application

Sea Suction Valve Bronze/Stainless Steel/Copper Electric/Hydraulic/Hand Type in Ship/Vessel/Boat The Valve is carefully polishing and testing before leaving factory to ensure the performance. Copper&Bronze/Stainless Steel/Steel material has longer sevice life for your pipes&vessel. Function of marine suction sea valve: The main engine of a ship needs to be cooled by sea water, so it is equipped with high and low sea suction valve To absorb sea water and provide cooling water for the main engine. Materials can be choosing by cast steel/bronze/stainless steel/copper. Mainly using cast steel according to standard of BV and other maritime classification society. Sample drawing: Specifications for sea suction valve: Norminal Pressure(Mpa) Norminal Diameter(mm) Applicable Medium 0.4 80~500 Sea Water, Fresh Water Valve Body, Cover Cast Steel、Cast Aluminum Bronze Disc, Seat Cast Aluminum Bronze Stem Aluminum Bronze Norminal Dia Structure Dimension Flange Bolt Hand Wheel Lift Range （m≈） Weight（kg） L H≈ D D1 D2 b d Qty Th. D0 DN80 125 360 170 138 118 14 15 8 M14 160 24 16.8 DN100 135 415 190 158 138 14 15 8 M14 180 30 21.8 DN125 160 470 215 183 164 14 15 10 M14 220 40 30 DN150 175 506 240 20

Tell us vessel type, chain or opening size, voltage or hydraulic preference, and the class society. Star Marine will confirm the model, shop-test the unit, and pack it for sea or air freight.

Warranty and documents

One year warranty after the cargo arrives at the vessel, with installation guidance and spare-parts support. Where a product card lists a longer deck-machinery warranty, that period applies to that line. Product certificates under ABS, BV, CCS, DNV, GL, LR or RINA can be arranged; BV and CCS are the most commonly requested.
