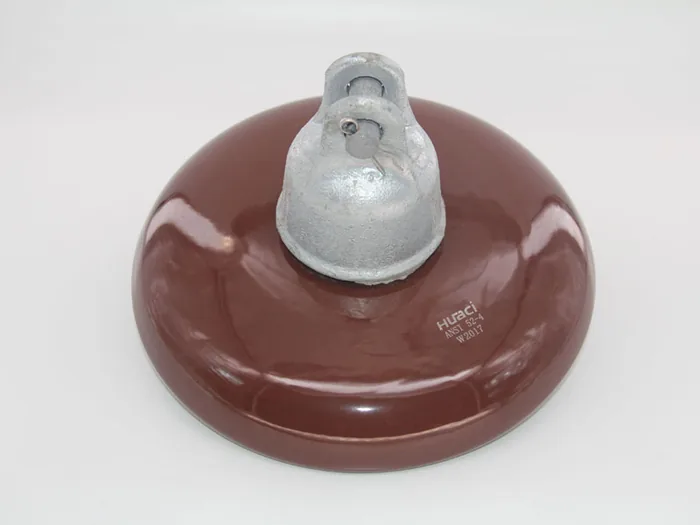

Porcelain Clevis Type Suspension Insulators ANSI 52-4
Key Data
Huaci engineers provide OEM service to meet the varying needs from customers.
Specifications
All values as published in the Huaci catalogue.
| Diameter (D) | 10Inches (254mm) |
|---|---|
| Spacing (H) | 5 3/4Inches (146mm) |
| Leakage Distance | 12 5/8Inches (320mm) |
| Dry Arcing Distance | 7 3/4Inches (197mm) |
| Coupling Size | Type B |
| Net Weight Each | 10.58Pounds (4.8kg) |
| Combined M&E Strength | 15,000Pounds (67kN) |
|---|---|
| Impact Strength | 55Inch-pounds (6.2Nm) |
| Routine Proof Test Load | 7,500Pounds (33.3kN) |
| Time Load Test Value | 10,000Pounds (44.5kN) |
| Maximum Working Load | 7,500Pounds (33.3kN) |
| Low-frequency Dry Flashover Voltage | 80kV |
|---|---|
| Low-frequency Wet Flashover Voltage | 50kV |
| Critical Impulse Flashover Voltage, Positive | 125kV |
| Critical Impulse Flashover Voltage, Negative | 130kV |
| Low Frequency Puncture Voltage | 110kV |
| RIV Test Voltage to Ground | 10kV |
| Maximum RIV at 1,000kHz | 50μV |
