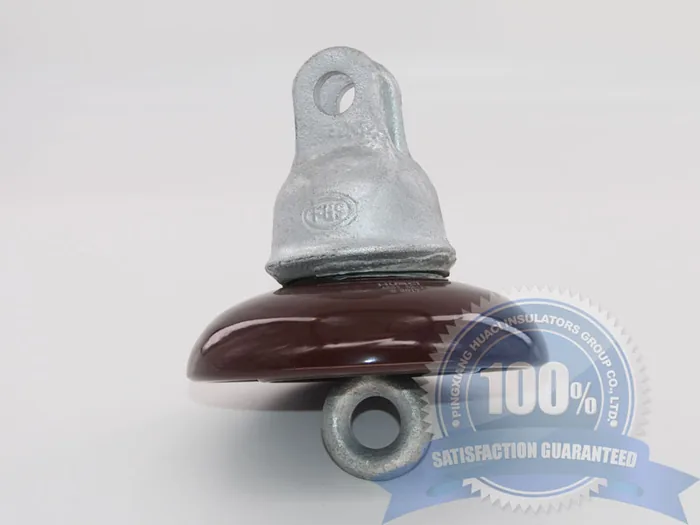

Porcelain Clevis Type Suspension Insulators ANSI 52-1
Key Data
Huaci engineers provide OEM service to meet the varying needs from customers.
Specifications
All values as published in the Huaci catalogue.
| Diameter (D) | 6 1/2Inches (165mm) |
|---|---|
| Spacing (H) | 5 1/2Inches (140mm) |
| Leakage Distance | 7Inches (178mm) |
| Dry Arcing Distance | 4 1/2Inches (114mm) |
| Coupling Size | Type B |
| Net Weight Each | 5.51Pounds (2.5kg) |
| Combined M&E Strength | 10,000Pounds (44kN) |
|---|---|
| Impact Strength | 45Inch-pounds (5Nm) |
| Routine Proof Test Load | 5,000Pounds (22kN) |
| Time Load Test Value | 6,000Pounds (27kN) |
| Maximum Working Load | 5,000Pounds (22kN) |
| Low-frequency Dry Flashover Voltage | 60kV |
|---|---|
| Low-frequency Wet Flashover Voltage | 30kV |
| Critical Impulse Flashover Voltage, Positive | 100kV |
| Critical Impulse Flashover Voltage, Negative | 100kV |
| Low Frequency Puncture Voltage | 80kV |
| RIV Test Voltage to Ground | 7.5kV |
| Maximum RIV at 1,000kHz | 50μV |
Standards
Huaci strictly comply with GB, ANSI, BS, DIN, AS and IEC standard designs, applicable to power transmission lines and substations.
Quality Systems
ISO 9001:2015 Quality Management, ISO 14001:2015 Environment Management and ISO 45001:2018 Occupational Health And Safety Management System certificates.
