Product Detail

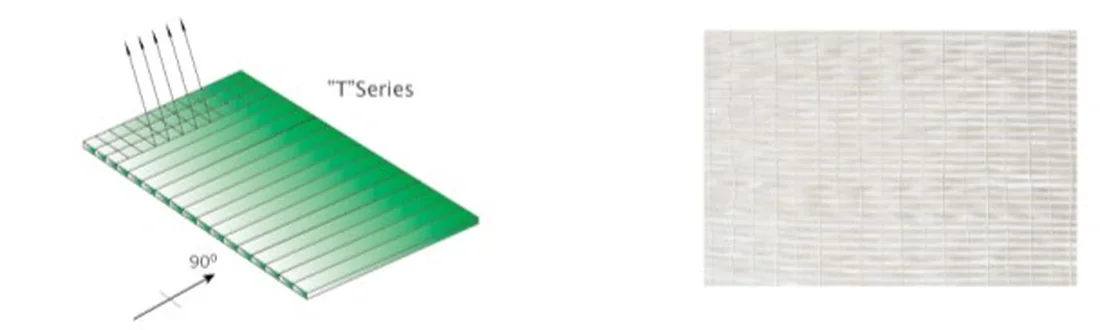

Multi-axial Fabric
Multi - axial include Uni-Directional, Biaxial, Triaxial and Quadraxial Fabrics. The entire Partial warp, weft and double bias plies are stitched into a single fabric. Withou filament crimp in woven roving, the Multi axial fabrics are in advantage of high strength, excellent stiffness, low weight and thickness, as well as the improved fabric surface quality. The fabrics can be combined with chopped strand mat or tissue or non-woven materials.
The products can be customized according to customer’s specification.
| Uni-directional Fabric (0 °or 90 °) | The density of 0 °Uni-directional fabric can be 300 g/m² - 900 g/m² and density of 90 °can be 150 g/m² - 1200 g/m² |
|---|---|
| Biaxial Fabric (0 °/90 °or ±45 °) | The density can be 300 g/m² - 2400 g/m², can be with layer of Chopped Strands. |
| Triaxial Fabric (0 °/+45 °/-45 °) | The density can be 450 g/m² - 1800 g/m², can be with layer of Chopped Strands |
| Triaxial Fabric (+45 °/+90 °/-45 °) | |
| Quadraxial Fabric (0 °/+45 °/90 °-45 °) | The density can be 600 g/m² - 2000 g/m², can be with layer of Chopped Strands |
