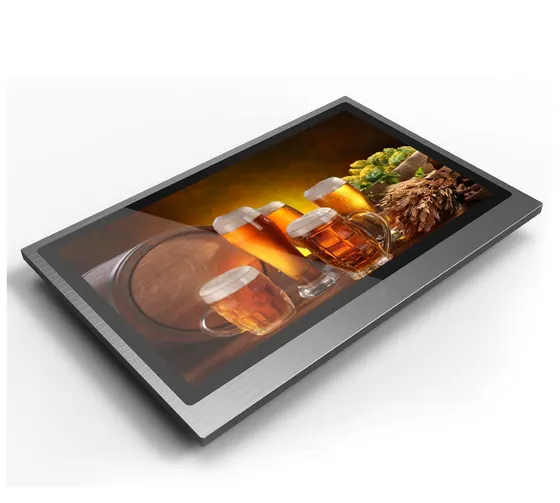

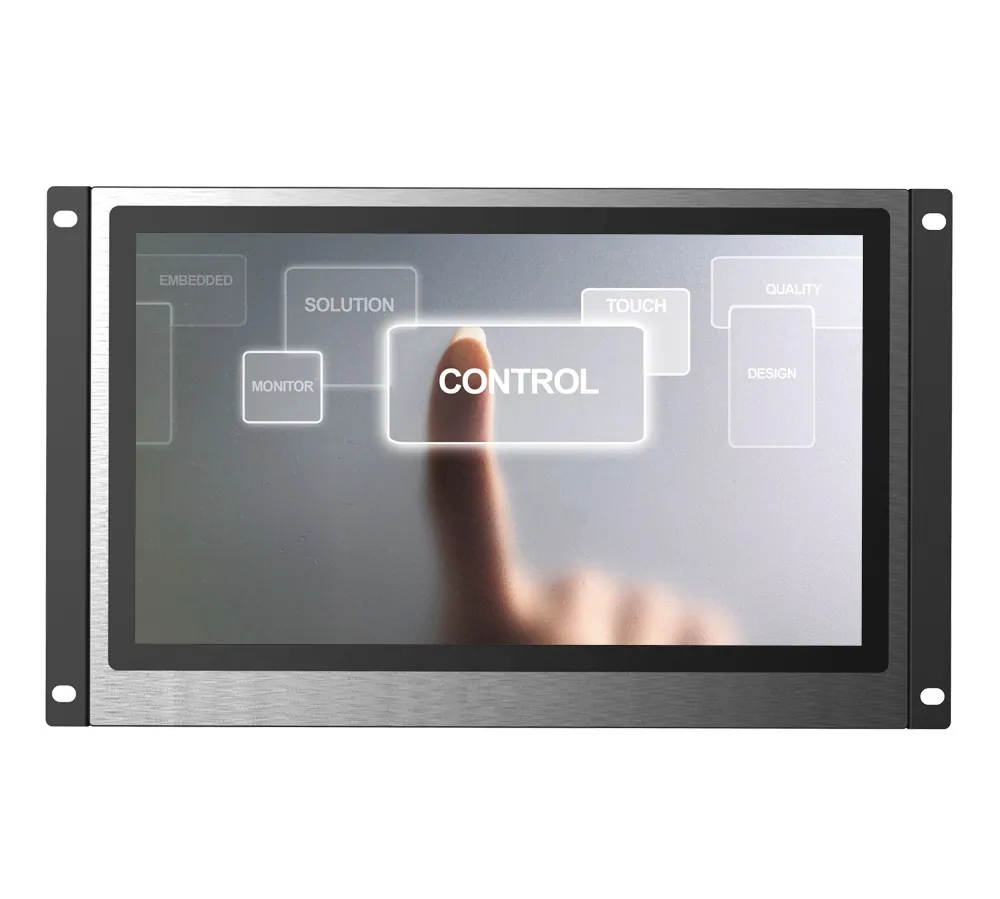

13.3 inch Industrial Touch Screen Monitor
- Metal housing Industrial Touch Screen Monitor
- Full HD 1920*1080 resolution
- Aspect ratio: 16:9,
- Touch panel: 10-point capacitive touch screen
- High contrast: 800:1
- High brightness: 300cd/m²
- Viewing angle: 170° / 170° (H/V)
- HDMI, VGA, DVI & A/V inputs
Working with RESUN on this model
- Customised I/O, IP65 front bezel, 7H anti-scratch panel, open frame or flat screen housing.
- RFID, NFC, front camera and barcode reader can be integrated.
- Multiple CPU, memory, storage and operating system options.
- Two-year warranty on computer and monitor hardware.
13.3″ Full HD Industrial Touch Screen Monitor with HDMI, VGA, DVI & A/V inputs
| DISPLAY | LCD Panel | 13.3 inch IPS LCD Panel |
|---|---|---|
| Physical Resolution | 1920*1080 | |
| Touch Panel | 10-point capacitive touch screen | |
| Aspect Ratio | 16:9 | |
| Brightness | 300 Nits | |
| Contrast | 800:1 | |
| Viewing Angle | 170°/170°(H/V) | |
| INPUT | HDMI | 1 |
| DVI | 1 | |
| VGA | 1 | |
| USB | 1 (for touch screen function) | |
| Audio (BNC) | 1 | |
| Video (BNC) | 1 | |
| POWER | Current | 790mA |
| Input Voltage | DC 10-24V | |
| Power Consumption | ≤8W | |
| ENVIRONMENT | Operating Temperature | -20~60 |
| Storage Temperature | -20~70 | |
| DIMENSION | Dimension(LWD) | 333.5*220*34.5mm |
| Mounting Method | VESA 75mm / 100mm |
industrial monitor
touch screen monitor
Ask about the EB-133LPTM
Send the configuration you need — CPU, memory, storage, operating system, I/O and quantity — and RESUN Electronics Co., Ltd. will confirm the build and quote it.
Other Industrial Touch Screen Monitor models
See all 12
7"- 7 inch high brightness capacitive touch screen montior
- 7″ LCD with 1024 * 600 Resolution
- Projected Capacitive Touchscreen
8"- 8″ IP65 touch screen monitor
- Zero-Bezel, All Glass Front Panel, Easy to Clean
- Capactive Touch Screen
10.1"- 10.1″ Industrial Outdoor Monitor
- Anti-UV display
- Optical bonding design can enhance its readability where installed in high humidity outdoor environments.
10.4"- 10.4 inch Foldable TFT LCD VGA Touch Screen Monitor
- with HDMI and DVI input
10.4"- 10.4″ Projected Capacitive Touchscreen
- IP67 Fully Enclosed Waterproof Design
- 1000 nit High Brightness
11.6"- 11.6 inch Industrial Touch Screen Monitor
12.1"- 12.1 inch Capacitive Touch Screen Monitor with HDMI input
- 800 nit High Brightness LCD
- 10-points P-CAP Touch Screen
15.6"- 15.6 Inch Open Frame Touch Display
Frequently Asked Questions
Can this model be customised?
Yes. RESUN is an OEM/ODM manufacturer, so I/O, housing, mounting, touch technology, IP rating, RFID or NFC, camera and barcode reader can be changed to suit the application.
What is the lead time and minimum quantity?
Both depend on the configuration and the volume. Send your requirement to +86-1351-0185730 or through the contact page and the sales team will confirm.
Is a sample available before production?
Yes. The custom design route includes sample making and sample approval before mass production; for a standard configuration a sample unit can be quoted directly.
What warranty applies?
Two years from the date of purchase against manufacturing and material defects on computer and monitor hardware.
