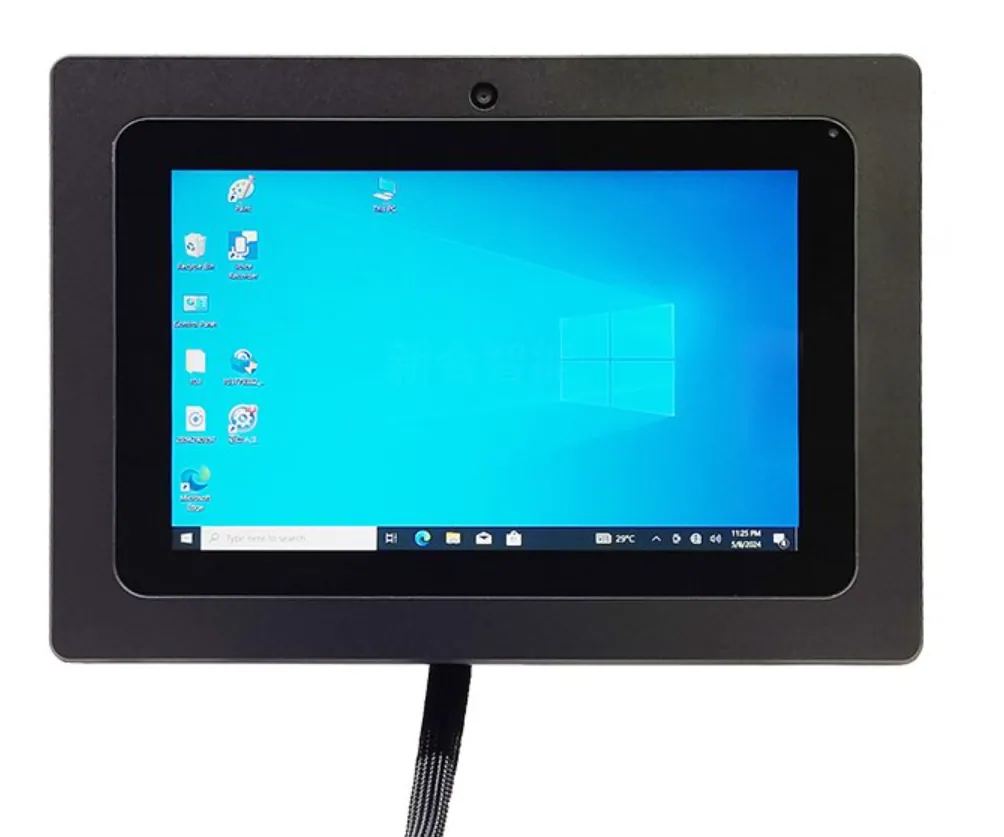

10.1 inch High Brightness Touch Screen Monitor
- 10.1″ Industrial Outdoor Monitor
- Anti-UV display
- Optical bonding design can enhance its readability where installed in high humidity outdoor environments.
- Auto-dimming – The screen brightness can be adjusted depending on intensity of ambient light
- Industrial protection, and adapt to various harsh environments
- Anti-Glare Glass
- IP67 waterproof
Working with RESUN on this model
- Customised I/O, IP65 front bezel, 7H anti-scratch panel, open frame or flat screen housing.
- RFID, NFC, front camera and barcode reader can be integrated.
- Multiple CPU, memory, storage and operating system options.
- Two-year warranty on computer and monitor hardware.
10.1 inch Industrial Touch Monitor
The High Brightness Outdoor Monitor series is manufactured with an aluminum alloy body, produce at least 1000 nits brightness. this 10.1″ industrial monitor excels in demanding environments, from manufacturing lines to control systems. Compact, durable, and energy-efficient, it ensures reliable performance in even the harshest conditions.
We develop this 10.1 inch high brightness monitors for use in direct sunlight. Also perfect for other high ambient-light conditions, We selected only the highest quality components, resistant to extreme temperatures, UV radiation. Based on the High Brightness features and optical bonding, It will provide you with crystal-clear images, even with bright, direct sunlight on the face of the display.
| LCD Panel | |
| Screen diagonal | 10.1″ |
| Display active area | 216.96(W)×135.6(H) mm |
| Resolution | 1280*800 |
| Aspect ratio | 16:10 |
| Brightness (cd/m²) | 1000 Nits |
| Brightness control | Auto Brightness |
| Contrast ratio | 900:1 |
| View angle | 85°/85°/85°/85° (R/L/U/D) |
| Support color | 16.7M |
| Backlight | WLED, 30K hours |
| Touch Panel | |
| Touchscreen type | 10-points Projected Capacitive Touch Screen |
| Surface hardness | 6H |
| Surface treatment | Anti glare (chemical etching) |
| Luminousness | ≥85% |
| Touch controller IC | EETI 80 |
| Touch bonding | Optical bonding |
| IP67 Ports (options) | |
| Video input | 1×IP67 HDMII 1×IP67VGA |
| Touchscreen interface | 1×IP67 USB |
| Power connector | 1×IP67 DC9-36V |
| Power Supply | |
| Working voltage | DC 9-36V |
| Power consumption | 10W |
| Power adapter | AC 100 ~ 240V input and DC +12V@5A MAX output, 60W |
Ask about the EB-101TMUV
Send the configuration you need — CPU, memory, storage, operating system, I/O and quantity — and RESUN Electronics Co., Ltd. will confirm the build and quote it.
Other Industrial Touch Screen Monitor models
See all 12
7"- 7 inch high brightness capacitive touch screen montior
- 7″ LCD with 1024 * 600 Resolution
- Projected Capacitive Touchscreen
8"- 8″ IP65 touch screen monitor
- Zero-Bezel, All Glass Front Panel, Easy to Clean
- Capactive Touch Screen
10.4"- 10.4 inch Foldable TFT LCD VGA Touch Screen Monitor
- with HDMI and DVI input
10.4"- 10.4″ Projected Capacitive Touchscreen
- IP67 Fully Enclosed Waterproof Design
- 1000 nit High Brightness
11.6"- 11.6 inch Industrial Touch Screen Monitor
12.1"- 12.1 inch Capacitive Touch Screen Monitor with HDMI input
- 800 nit High Brightness LCD
- 10-points P-CAP Touch Screen
13.3"- Metal housing Industrial Touch Screen Monitor
- Full HD 1920*1080 resolution
- Aspect ratio: 16:9,
15.6"- 15.6 Inch Open Frame Touch Display
Frequently Asked Questions
Can this model be customised?
Yes. RESUN is an OEM/ODM manufacturer, so I/O, housing, mounting, touch technology, IP rating, RFID or NFC, camera and barcode reader can be changed to suit the application.
What is the lead time and minimum quantity?
Both depend on the configuration and the volume. Send your requirement to +86-1351-0185730 or through the contact page and the sales team will confirm.
Is a sample available before production?
Yes. The custom design route includes sample making and sample approval before mass production; for a standard configuration a sample unit can be quoted directly.
What warranty applies?
Two years from the date of purchase against manufacturing and material defects on computer and monitor hardware.
