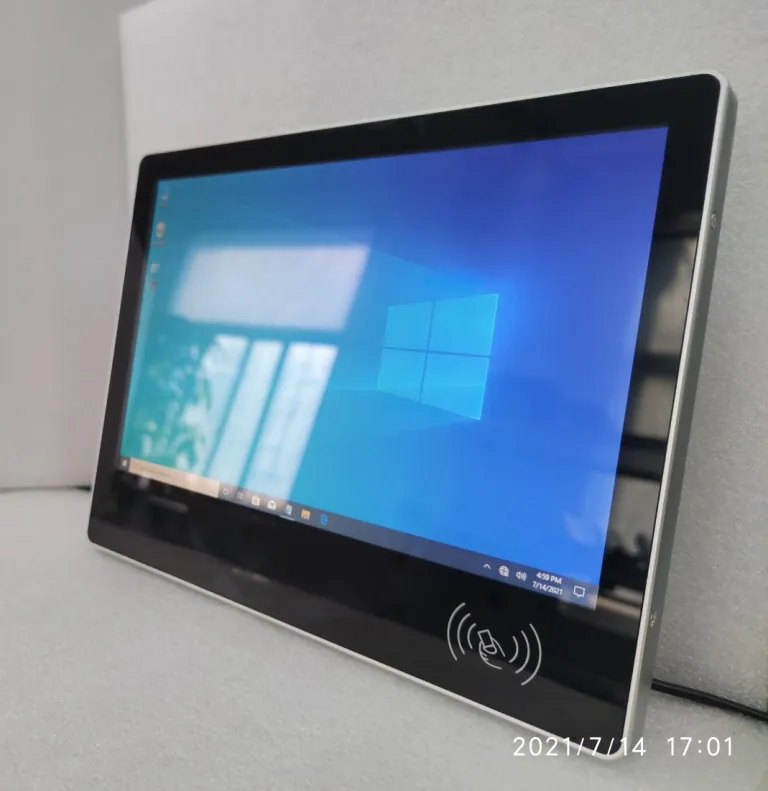

12.1″ Touch Screen RFID Terminal
- 12.1 inch TFT LCD with touch screen
- Fully tempered glass front bezel integrated touch screen, True flat front bezel.
- Intel J1900 Quad cors CPU
- Dual 125KHz-EM or 13.56MHz-Mifare RFID reading capacity
- Windows or Linux operating system support
Working with RESUN on this model
- Customised I/O, IP65 front bezel, 7H anti-scratch panel, open frame or flat screen housing.
- RFID, NFC, front camera and barcode reader can be integrated.
- Multiple CPU, memory, storage and operating system options.
- Two-year warranty on computer and monitor hardware.
Full tempered glass front bezel, 12.1″ touch screen computer, Built-in RFID Reader
This slim design 12.1 inch Industrial Touch Screen Computer built-in RFID reader, As an intelligent all-in-one access control terminal that can read both IC and ID RFID reader.
This is Touch Screen Panel PC combined true flat front panel with fully tempered glass, esay to clean,
to ensure the computer is secured against vandalism and protected against extreme environmental conditions.
| CPU | Intel Celeron Processor J1900 (2M Cache, up to 2.42 GHz) | ||||
| Chipsets | Intel Bay Trail SOC | ||||
| RAM | 2GByte DDR3L-1600 | ||||
| Hard Drive | 32GB SSD | ||||
| Graphic | Intel HD Graphics(Sandy Bridge) | ||||
| Audio | Realtek HD ALC 662 ,2*2W Loudspeaker | ||||
| LAN | Realtek RTL8111F , 1*10/100/1000MBit RJ45 Ports | ||||
| External Ports | HDMI out | ||||
| 3*USB2.0 , 1*USB3.0 | |||||
| 1* COM | |||||
| 1*RJ45 | |||||
| DB15 VGA | |||||
| Line out | |||||
| MIC | |||||
| M12 Power on/off | |||||
| DC-in(12V) input power | |||||
| Internal port | 1*Sata 300MB/S (1*MSATA) | ||||
| 1*MiniPCI-E | |||||
| RFID | 125Khz / ID card (EM4100) | ||||
| 13.56Mhz / IC card (ISO14443A) | |||||
| Driver | Windows, Linux; | ||||
| Aspect Ratio | 16:10 | ||||
| Physical Resolution | 1280（W)*800(H) | ||||
| Brightness | 400 | ||||
| Touch Panel | 10-piont capactive touch screen | ||||
| Front Panel | IP65 | ||||
| Case | Aluminum ,steel sheet | ||||
RFID Panel PC
industrial panel pc
Ask about the EB-121RASYG
Send the configuration you need — CPU, memory, storage, operating system, I/O and quantity — and RESUN Electronics Co., Ltd. will confirm the build and quote it.
Other RFID Panel PC models
See all 18
- Powered by Intel® Celeron® Processor J1900 (2M Cache, up to 2.42 GHz)
- 9.7″ touch screen for better touch experience
- Built-in USB ports, COM ports, HDMI-out port, and VGA-out port, Lan ports allows versatile application
- Windows/Linux Tablet PC with Barcode Scanner, RFID Reader & VESA Mounting
- Industrial Touch Computer for Forklift in Smart Warehouse Management
7"- 7 inch Android Industrial Panel PC
- Powered by RK3288 Quad Core CPU
- Based on Android 7.1 OS
8"
9.7"- 9.7 inch Flat Panel PC with 2D Barcode Scanner and RFID Reader
9.7"- 9.7 inch Projected Capacitive Touch screen
- IP65 rated true-flat front bezel, all-glass design, no gap
- Bult-in RFID reader / NFC
Frequently Asked Questions
Can this model be customised?
Yes. RESUN is an OEM/ODM manufacturer, so I/O, housing, mounting, touch technology, IP rating, RFID or NFC, camera and barcode reader can be changed to suit the application.
What is the lead time and minimum quantity?
Both depend on the configuration and the volume. Send your requirement to +86-1351-0185730 or through the contact page and the sales team will confirm.
Is a sample available before production?
Yes. The custom design route includes sample making and sample approval before mass production; for a standard configuration a sample unit can be quoted directly.
What warranty applies?
Two years from the date of purchase against manufacturing and material defects on computer and monitor hardware.
